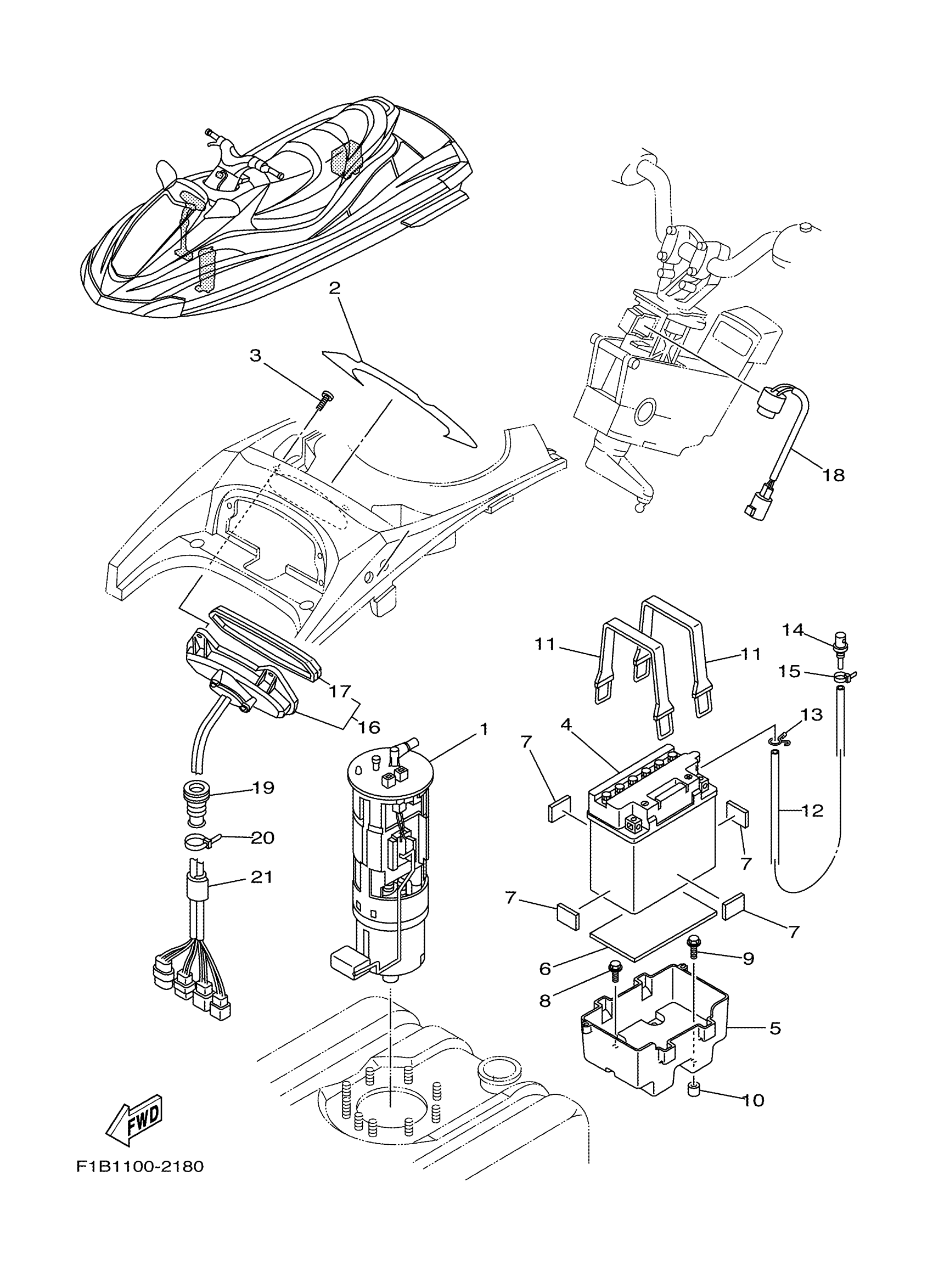

Yamaha FX1000CA (FX140) F1B11 2002 ELECTRICAL 3 Diagram

#

Description
Price

1

FUEL PUMP COMP.

60E-13907-0X-00

Unavailable

2

GRAPHIC B

F1B-64174-01-00

Unavailable

3

SCREW

90149-05919-00

Unavailable

4

BATTERY ASSY

EU0-82110-08-00

Unavailable

5

CASE, BATTERY

GP7-U8211-00-00

Unavailable

6

PAD, BATTERY

F1S-U8221-00-00

$2.75

7

PAD, BATTERY

EU0-U8221-31-00

$1.65

8

BOLT, WITH WASHER

90119-069US-00

$2.52

9

BOLT, WITH WASHER

90119-06820-00

$3.52

10

PLATE, BATTERY

F1B-6821G-01-00

$4.09

11

BAND,BATTERY 1

EU0-U821D-00-00

$7.33

12

HOSE, AIR VENT

F0D-U785G-11-00

Unavailable

13

CLIP

90467-089U1-00

$1.44

14

NIPPLE

GJ3-6215F-00-00

$9.08

15

CLAMP

90465-10098-00

$1.68

16

METER ASSY

F1B-6820A-00-00

Unavailable

17

. PANEL, METER

F1B-6821K-00-00

Unavailable

18

BUZZER

F1S-68341-00-00

$113.62

19

GROMMET

GU2-6822E-01-00

$24.98

20

BAND

90601-200U1-00

$2.77

21

PACKING, HOSE 2

GJ1-U7578-12-00

Unavailable
