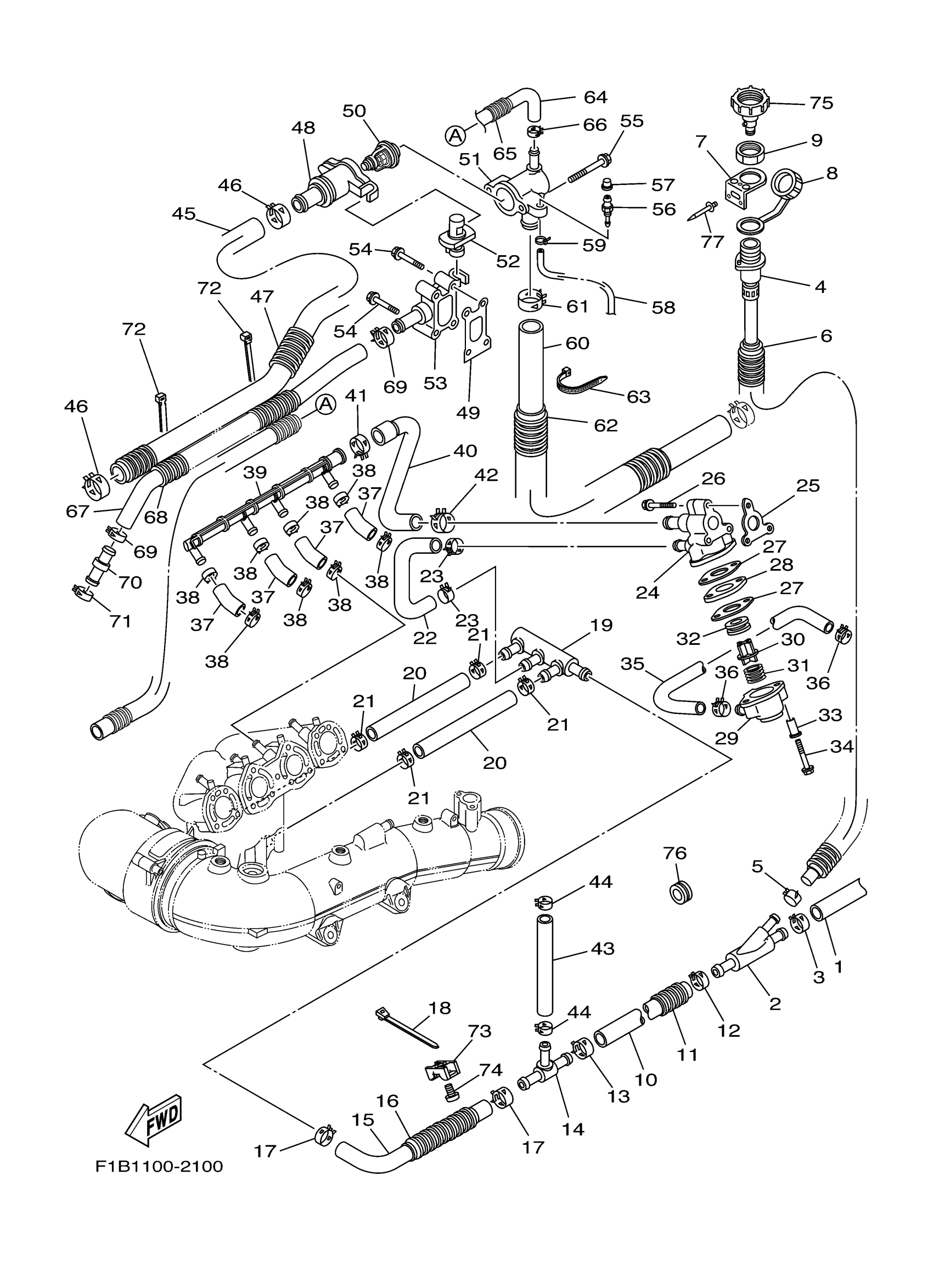

Yamaha FX1000CA (FX140) F1B11 2002 EXHAUST 2 Diagram
#
1
HOSE 1
60E-1243A-00-00
Unavailable
2
JOINT, HOSE 1
60E-12581-00-00
Unavailable
3
CLIP
90467-200A0-00
Unavailable
4
JOINT ASSY
60E-12580-00-00
Unavailable
5
CLIP
90467-150A0-00
Unavailable
6
HOSE
90446-24M83-00
Unavailable
7
STAY
60E-12443-00-00
Unavailable
8
CAP,1
682-84385-01-00
Unavailable
9
NUT
EU0-61652-00-00
Unavailable
10
HOSE
90445-21003-00
Unavailable
11
HOSE, WITH SPRING (L300)
90447-22003-00
Unavailable
12
CLIP
90467-200A0-00
Unavailable
13
CLIP
90467-200A0-00
Unavailable
14
JOINT, HOSE 3
60E-12584-00-00
Unavailable
15
HOSE 2
60E-1243E-00-00
Unavailable
16
HOSE, WITH SPRING (L100)
90447-22001-00
Unavailable
17
CLIP
90467-200A0-00
Unavailable
18
CLAMP
90465-55001-00
Unavailable
19
JOINT, HOSE 2
60E-12582-00-00
Unavailable
20
HOSE (L150)
90445-18003-00
Unavailable
21
CLIP
90467-160A0-00
Unavailable
22
HOSE,3
6B6-1243F-00-00
Unavailable
23
CLIP
90467-160A0-00
Unavailable
24
JOINT
60E-12479-00-94
Unavailable
25
GASKET
60E-12434-00-00
Unavailable
26
BOLT, HEXAGON W/W DEEP RECESS
97E95-06545-00
Unavailable
27
GASKET, COVER
60E-12414-00-00
Unavailable
28
PLATE
60E-12535-00-00
Unavailable
29
COVER, HOUSING
60E-12422-00-00
Unavailable
30
VALVE, PRESSURE CONTROL
6G5-12416-00-00
Unavailable
31
SPRING, COMPRESSION
90501-16M11-00
Unavailable
32
GROMMET
90480-20M05-00
Unavailable
33
COLLAR
90387-06M65-00
Unavailable
34
BOLT, HEXAGON W/W DEEP RECESS
97E95-06540-00
Unavailable
35
HOSE (L350)
90445-18M13-00
Unavailable
36
CLIP
90467-160A0-00
Unavailable
37
HOSE 1
60E-12576-00-00
Unavailable
38
. CLIP
90467-150A1-00
Unavailable
39
JOINT 1
60E-12469-00-00
Unavailable
40
HOSE 2
60E-12577-00-00
Unavailable
41
CLIP
90467-22002-00
Unavailable
42
CLIP
90467-200A0-00
Unavailable
43
HOSE (L130)
90445-18004-00
Unavailable
44
CLIP
90467-160A0-00
Unavailable
45
HOSE 3
60E-12578-00-00
Unavailable
46
CLIP
90467-240A0-00
Unavailable
47
HOSE, WITH SPRING
90447-28003-00
Unavailable
48
HOUSING, THERMOSTAT
60E-12417-10-94
Unavailable
49
GASKET
60E-12435-00-00
Unavailable
50
THERMOSTAT
60E-12411-01-00
Unavailable
51
COVER, THERMOSTAT
60E-12413-10-94
Unavailable
52
JOINT
60E-12499-00-00
Unavailable
53
JOINT
60E-12446-00-94
Unavailable
54
BOLT, FLANGE
90105-06035-00
Unavailable
55
BOLT, FLANGE
90105-06035-00
Unavailable
56
NIPPLE, GREASE
61L-5169A-00-00
Unavailable
57
CAP, GREASE NIPPLE
663-45119-01-00
Unavailable
58
HOSE, DELIVERY
6AP-5110K-00-00
Unavailable
59
CLAMP
90465-10098-00
Unavailable
60
HOSE (L900)
90445-25003-00
Unavailable
61
CLIP
90467-240A0-00
Unavailable
62
TUBE (L800)
90447-28002-00
Unavailable
63
CLAMP
90465-13M18-00
Unavailable
64
HOSE 8
6P6-12552-00-00
Unavailable
65
TUBE (L1150)
90447-22002-00
Unavailable
66
CLIP
90467-120A0-00
Unavailable
67
HOSE (L530)
90445-21004-00
Unavailable
68
HOSE(63M)
90446-27M55-00
Unavailable
69
CLIP
90467-200A0-00
Unavailable
70
CONNECTION
60E-51142-00-00
Unavailable
71
CLIP
90467-200A0-00
Unavailable
72
CLAMP
90465-14M66-00
Unavailable
73
BRACKET 1
60E-1244E-00-00
Unavailable
74
SCREW, WITH WASHER(6L2)
97985-05210-00
Unavailable
75
CONDUCTION ASSY (US)
67X-E2590-00-00
Unavailable
76
GROMMET
90480-38800-00
Unavailable
77
RIVET, BLIND
90267-48802-00
Unavailable
