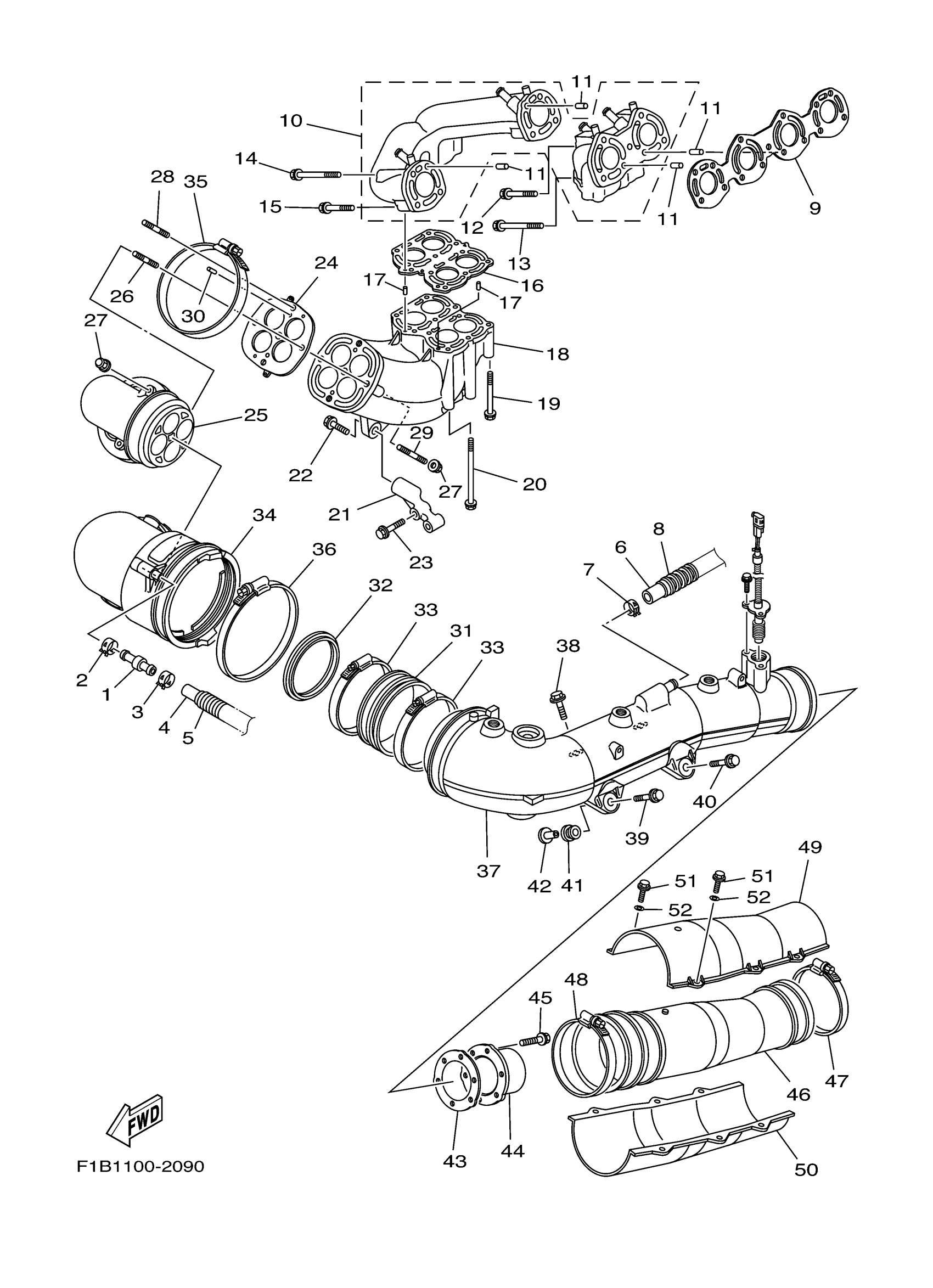

Yamaha FX1000CA (FX140) F1B11 2002 EXHAUST 1 Diagram
#
1
JOINT, HOSE 4
60E-12594-00-00
Unavailable
2
CLIP
90467-120A0-00
Unavailable
3
CLIP
90467-130A0-00
Unavailable
4
HOSE
90445-14M03-00
Unavailable
5
HOSE(GK5)
90446-20M65-00
$7.49
6
HOSE (L1250)
90445-20002-00
Unavailable
7
CLIP
90467-200A0-00
Unavailable
8
TUBE (L1150)
90447-22002-00
Unavailable
9
GASKET, EXHAUST PIPE
60E-14613-01-00
Unavailable
10
EXHAUST PIPE ASSY 1
60E-14610-00-94
Unavailable
11
PIN, DOWEL
93608-16M16-00
Unavailable
12
BOLT, WITH WASHER
90119-08029-00
Unavailable
13
BOLT, WITH WASHER
90119-08034-00
Unavailable
14
BOLT, WITH WASHER
90119-08029-00
Unavailable
15
BOLT, WITH WASHER
90119-08M66-00
Unavailable
16
GASKET, MUFFLER DAMPER 1
60E-14739-02-00
Unavailable
17
PIN, DOWEL (614)
93606-12019-00
Unavailable
18
PIPE, EXHAUST 3
60E-14631-00-94
Unavailable
19
BOLT, WITH WASHER
90119-08036-00
Unavailable
20
BOLT, WITH WASHER
90119-08031-00
Unavailable
21
STAY, MUFFLER 1
60E-14771-00-94
Unavailable
22
BOLT, WITH WASHER
90119-10013-00
Unavailable
23
BOLT, WITH WASHER
90119-08043-00
Unavailable
24
GASKET, MUFFLER DAMPER 2
60E-14749-02-00
Unavailable
25
RING, JOINT
60E-14712-02-94
Unavailable
26
BOLT, STUD
90116-10016-00
Unavailable
27
NUT
90179-10M35-00
Unavailable
28
BOLT, STUD
90116-10017-00
Unavailable
29
BOLT, STUD
90116-10018-00
Unavailable
30
PIN, DOWEL (614)
93606-12019-00
Unavailable
31
JOINT, EXHAUST 2
60E-14625-00-00
Unavailable
32
. SEAL, EXHAUST
60E-14642-00-00
Unavailable
33
HOSE CLAMP ASSY(62T)
90450-99M06-00
Unavailable
34
JOINT, EXHAUST 1
60E-14615-00-00
Unavailable
35
HOSE CLAMP ASSY
90450-99M18-00
Unavailable
36
HOSE CLAMP ASSY
90450-99M18-00
Unavailable
37
MUFFLER 2
60E-14721-00-94
Unavailable
38
BOLT, WITH WASHER
90119-10013-00
Unavailable
39
BOLT, WITH WASHER
90119-10011-00
Unavailable
40
BOLT, WITH WASHER
90119-10017-00
Unavailable
41
GROMMET(62L)
90480-21M63-00
Unavailable
42
COLLAR
90387-11008-00
Unavailable
43
. GASKET, EXHAUST PIPE
60E-14623-00-00
Unavailable
44
PIPE, TAIL
60E-14784-00-94
Unavailable
45
BOLT, FLANGE(2UJ)
95024-06016-00
Unavailable
46
PIPE, OUTLET
60E-14752-01-00
Unavailable
47
CLAMP, HOSE
90460-90M11-00
Unavailable
48
HOSE CLAMP ASSY(62T)
90450-99M06-00
Unavailable
49
PROTECTOR, MUFFLER 1
60E-14718-00-94
Unavailable
50
PROTECTOR, MUFFLER 2
60E-14728-00-94
Unavailable
51
BOLT(62Y)
97013-06025-00
Unavailable
52
WASHER, PLAIN (646)
92990-06600-00
Unavailable
