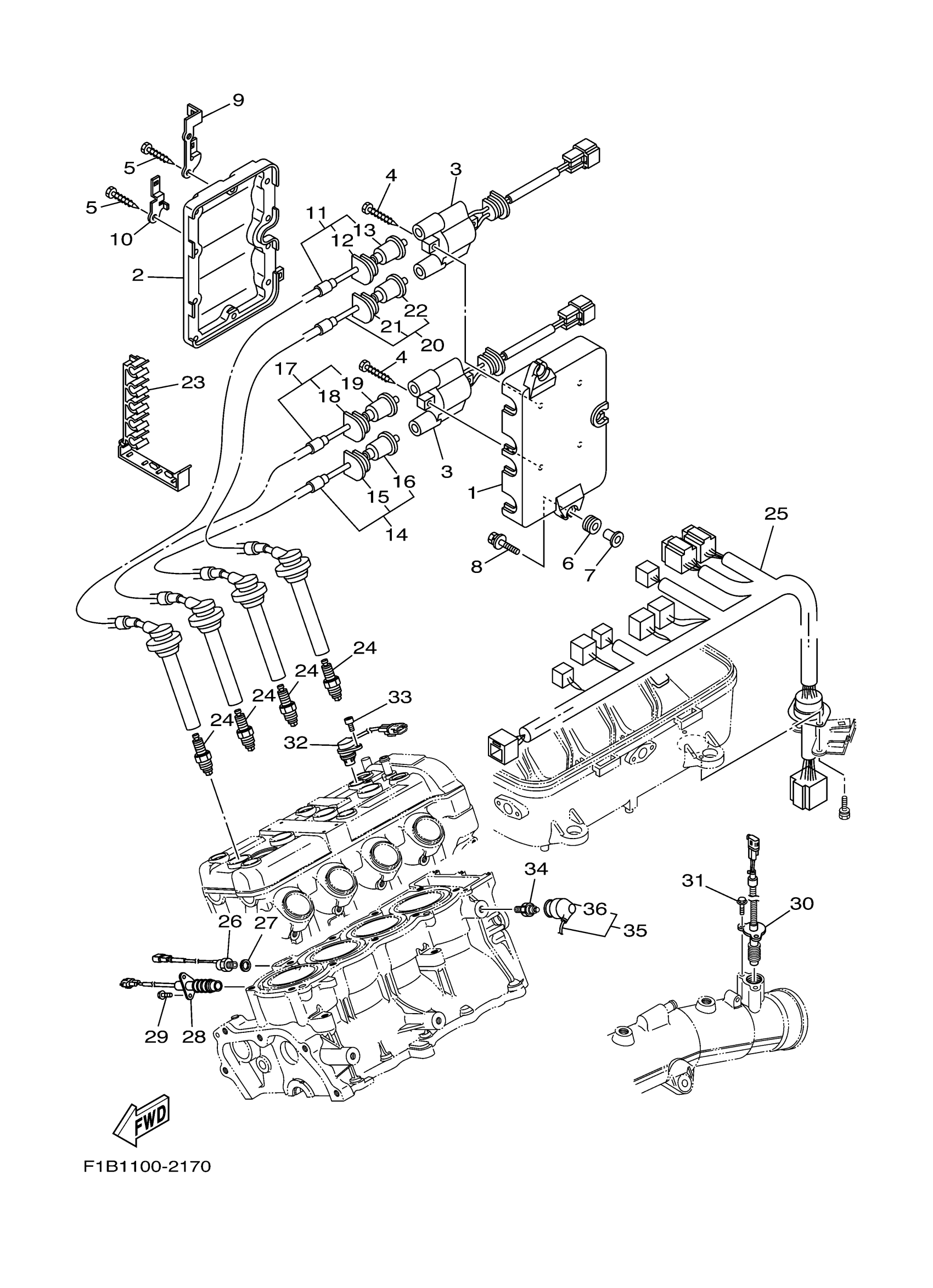

Yamaha FX1000CA (FX140) F1B11 2002 ELECTRICAL 2 Diagram

#

Description
Price

1

CASE 1

60E-8235A-00-00

Unavailable

2

COVER, IGNITION COIL

60E-82314-00-00

Unavailable

3

IGNITION COIL ASSY

60E-82310-00-00

Unavailable

4

SCREW, TAPPING(65J)

97780-60625-00

Unavailable

5

SCREW, TAPPING

97780-60520-00

Unavailable

6

DAMPER, IGNITION C

6A0-82317-01-00

Unavailable

7

. COLLAR

90387-06119-00

Unavailable

8

BOLT, WITH WASHER

90119-06289-00

Unavailable

9

BRACKET, REFLECTOR 1

60E-85112-00-00

Unavailable

10

BRACKET, REFLECTOR 2

60E-85122-00-00

Unavailable

11

CORD, HIGH TENSION 1

60E-82341-00-00

Unavailable

12

GROMMET

90480-06M43-00

Unavailable

13

GROMMET

66V-82355-00-00

Unavailable

14

CORD, HIGH TENSION 2

60E-82342-00-00

Unavailable

15

GROMMET

90480-06M43-00

Unavailable

16

GROMMET

66V-82355-00-00

Unavailable

17

CORD, HIGH TENSION 3

60E-82343-00-00

Unavailable

18

GROMMET

90480-06M43-00

Unavailable

19

GROMMET

66V-82355-00-00

Unavailable

20

CORD, HIGH TENSION 4

60E-82344-00-00

Unavailable

21

GROMMET

90480-06M43-00

Unavailable

22

GROMMET

66V-82355-00-00

Unavailable

23

CLAMP, CORD

60E-81317-00-00

Unavailable

24

CR9EB NGK SPLUG 4PK

CR9-EB000-00-00

Unavailable

25

WIRE HARNESS ASSY 2

60E-8259M-00-00

Unavailable

26

THERMOSENSOR ASSY

60E-85790-02-00

Unavailable

27

WASHER, PLATE

92990-10600-00

Unavailable

28

THERMO SWITCH ASSY

60E-82560-A1-00

Unavailable

29

BOLT, HEXAGON W/W DEEP RECESS

97E95-06416-00

Unavailable

30

THERMO SWITCH ASSY

60E-82560-01-00

Unavailable

31

BOLT, HEXAGON W/W DEEP RECESS

97E95-06416-00

Unavailable

32

SENSOR, CAM POSITION

60E-85896-02-00

Unavailable

33

BOLT,SOCKET

91380-06016-00

Unavailable

34

OIL PRESSURE SWITCH ASSY

68V-82504-00-00

Unavailable

35

LEAD WIRE ASSY

60E-81315-01-00

Unavailable

36

CAP

60E-82532-01-00

Unavailable
