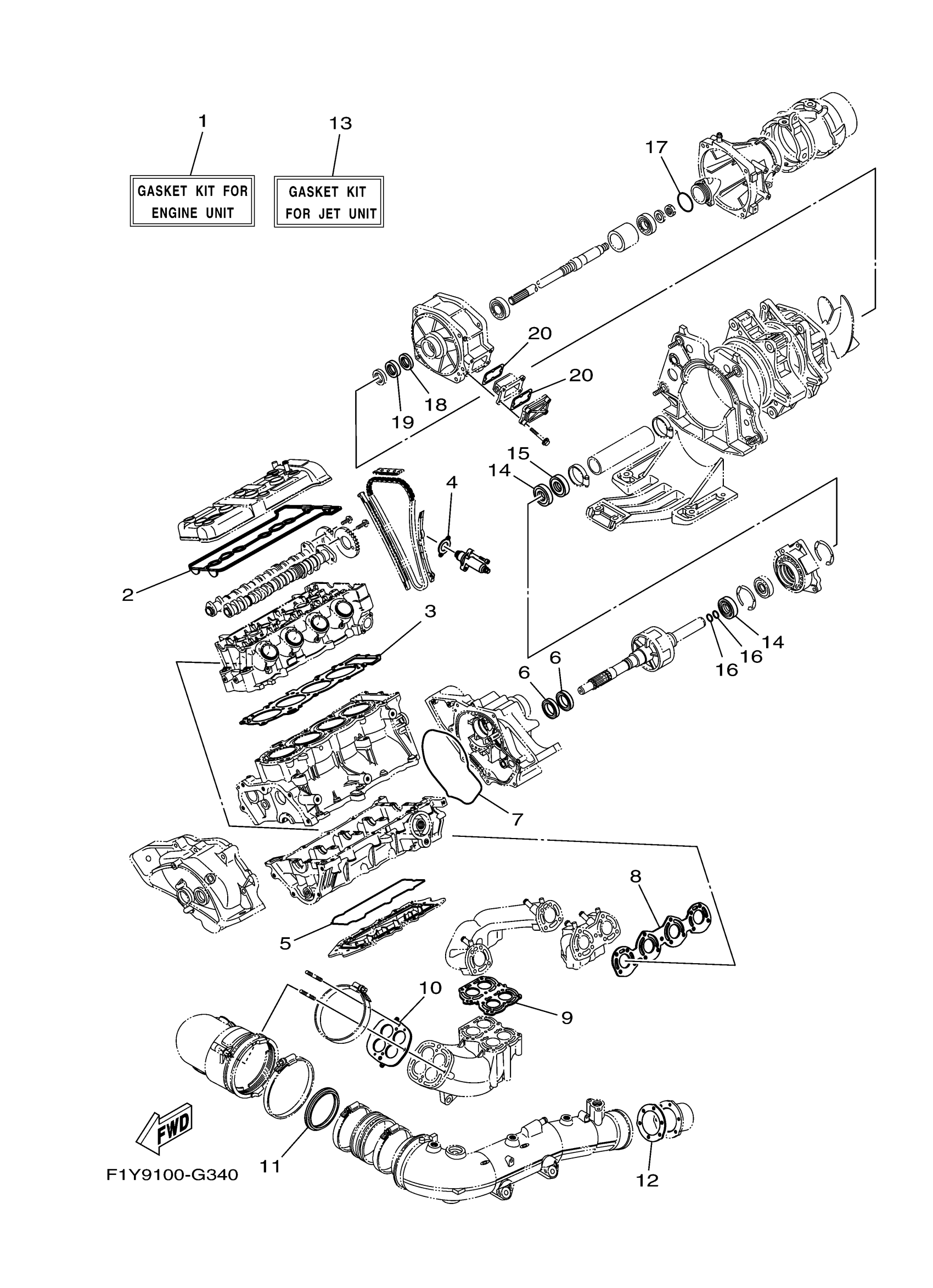

Yamaha FX1000AG (WaveRunner FX Cruiser) F1Y9 2008 REPAIR KIT 1 Diagram
#
Description
Price
1
GASKET KIT FOR ENGINE UNIT
60E-W0001-02-00
Unavailable
2
GASKET, HEAD COVER 1
60E-11193-01-00
Unavailable
3
GASKET, CYLINDER HEAD 1
60E-11181-01-00
Unavailable
5
GASKET
60E-13557-00-00
Unavailable
6
OIL SEAL
93101-35004-00
Unavailable
7
. O-RING
93211-95001-00
Unavailable
8
GASKET, EXHAUST PIPE
60E-14613-01-00
Unavailable
9
GASKET, MUFFLER DAMPER 1
60E-14739-02-00
Unavailable
10
GASKET, MUFFLER DAMPER 2
60E-14749-02-00
Unavailable
11
. SEAL, EXHAUST
60E-14642-00-00
Unavailable
12
. GASKET, EXHAUST PIPE
60E-14623-00-00
Unavailable
13
GASKET KIT FOR JET UNIT
60E-W0001-21-00
Unavailable
15
. OIL SEAL
93102-25009-00
Unavailable
16
O-RING
93210-19001-00
Unavailable
17
. O-RING
93210-464A3-00
Unavailable
18
OIL SEAL
93101-28002-00
Unavailable
19
OIL SEAL
93101-28M66-00
Unavailable
20
. O-RING
66V-42414-00-00
Unavailable
