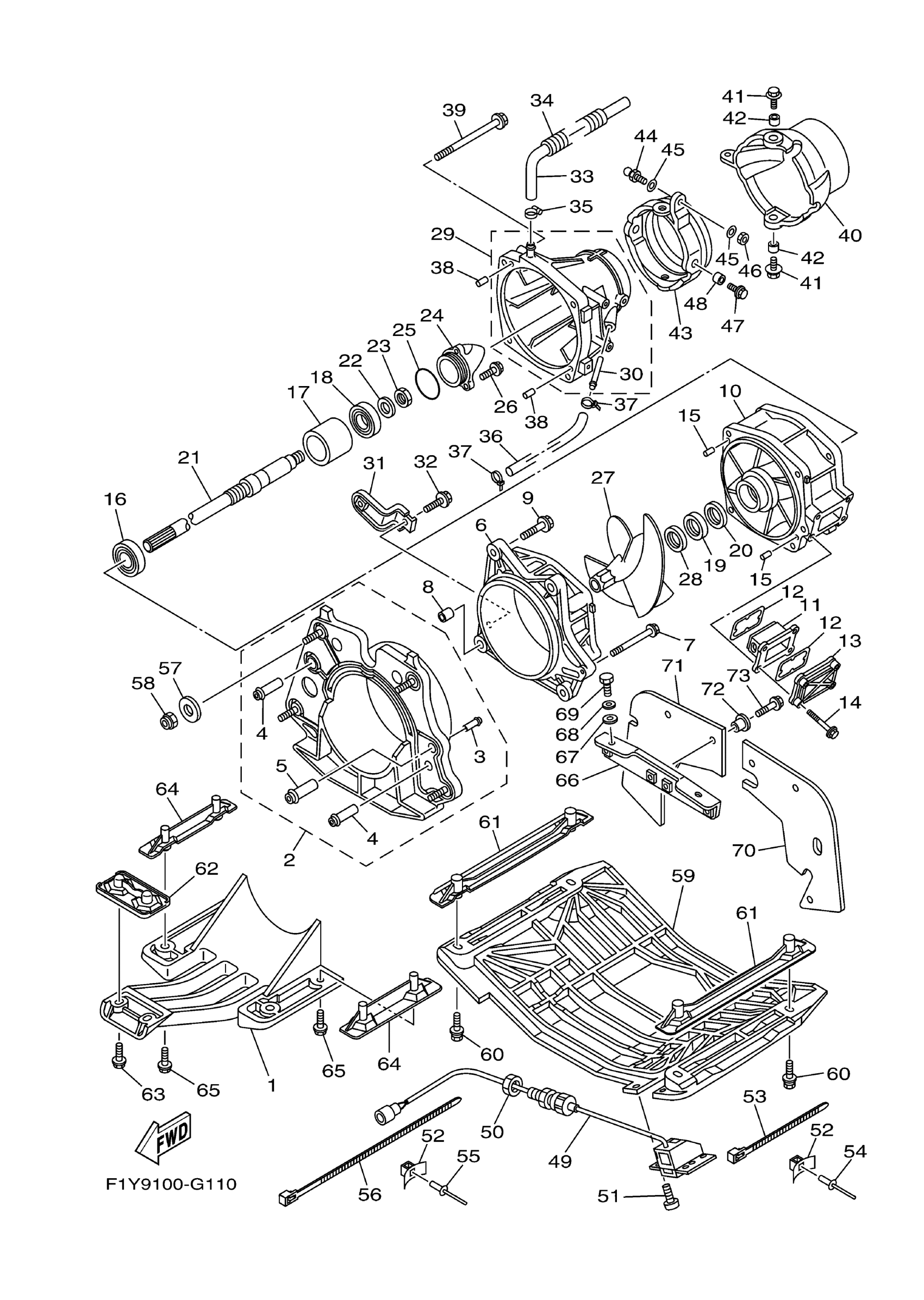

Yamaha FX1000AG (WaveRunner FX Cruiser) F1Y9 2008 JET UNIT 1 Diagram

#

Description
Price

1

SCREEN, INTAKE

6B6-R1333-01-00

$139.21

2

PLATE, TRANSOM

6B6-G5831-00-00

Unavailable

3

. NIPPLE

65A-R1129-00-00

Unavailable

4

. NIPPLE

66V-51129-10-00

$15.89

5

. NIPPLE

60E-51129-30-00

Unavailable

6

HOUSING, IMPELLER

6CR-R1312-00-00

$107.60

7

BOLT, WITH WASHER

90119-06894-00

$1.37

8

PIN, DOWEL(4JT)

99590-14016-00

$3.41

9

BOLT, WITH WASHER

90119-10811-00

$1.37

10

DUCT, IMPELLER

66V-51315-01-00

$173.57

11

FILTER

66V-46882-00-00

$5.91

12

. O-RING

66V-42414-00-00

$5.18

13

COVER, WATER INLET 1

66V-45214-00-00

Unavailable

14

BOLT,WITH WASHER

90119-06898-00

$3.43

15

PIN, DOWEL (614)

93606-12019-00

$3.05

16

BEARING (6K8)

93306-205U1-00

Unavailable

17

SPACER 1

65V-45538-00-00

$29.88

18

BEARING

93306-304XB-00

$17.22

19

OIL SEAL

93101-28M66-00

Unavailable

20

OIL SEAL

93101-28002-00

$13.40

21

SHAFT, DRIVE

68Y-G5511-00-00

Unavailable

22

WASHER

9299R-16600-00

Unavailable

23

NUT

95317-16700-00

$4.55

24

CAP KIT

65A-R1326-10-KT

Unavailable

25

. O-RING

93210-464A3-00

$2.95

26

BOLT,WITH WASHER

90119-06890-00

$1.07

27

IMPELLER

68N-R1321-10-00

$155.55

28

SPACER

66V-R1348-10-00

$12.91

29

NOZZLE

6B6-51318-00-94

Unavailable

30

. NIPPLE,HOSE

63M-51334-00-00

$21.95

31

BRACKET

6B6-R1343-00-00

Unavailable

32

BOLT,WITH WASHER

90119-06890-00

$1.07

33

HOSE (L310)

90445-16M09-00

Unavailable

34

HOSE

90446-24M83-00

Unavailable

35

BAND, HOSE 18

90601-118UF-00

$2.07

36

HOSE (L330)

90445-14804-00

$1.52

37

CLAMP

90465-10098-00

$1.68

38

PIN, DOWEL (614)

93606-12019-00

$3.05

39

BOLT, WITH WASHER

90119-10807-00

$5.44

40

NOZZLE, DEFLECTOR

66V-R1313-01-00

Unavailable

41

BOLT, WITH WASHER

90119-08852-00

$3.79

42

COLLAR(6R7)

90387-08M06-00

Unavailable

43

RING,TRIM

60T-51190-00-94

$127.26

44

STUD, JOINT BALL

GH3-U146E-00-00

$6.66

45

WASHER,PLATE

90201-068M4-00

Unavailable

46

NUT

9538R-06700-00

$1.01

47

BOLT, WITH WASHER

90119-08852-00

$3.79

48

COLLAR(6R7)

90387-08M06-00

Unavailable

49

SENSOR SPEED

F1S-U8K31-03-00

$142.18

50

. NUT, DRAIN 1

EU0-62241-30-00

$10.49

51

SCREW, ROUND HEAD

90150-05807-00

$0.79

52

CLAMP COMP (EU0)

90600-91736-00

Unavailable

53

CLAMP

90464-32801-00

$1.23

54

RIVET, BLIND

90267-48802-00

$1.98

55

RIVET, BLIND

90267-489U6-00

$1.37

56

CLAMP

90464-99801-00

$2.73

57

WASHER

F1S-U725E-01-00

$7.89

58

NUT, NYLON

9572R-10300-00

$3.37

59

PLATE 2

F1S-U273B-01-00

Unavailable

60

BOLT, WITH WASHER

90119-08829-00

$3.88

61

BRACKET 2

F1B-U8572-01-00

$15.14

62

BRACKET, 3

F1K-U8577-01-00

$22.97

63

BOLT, WITH WASHER

90119-06896-00

$5.03

64

BRACKET 1

F1G-U8571-02-00

$15.07

65

BOLT, WITH WASHER

90119-08829-00

$3.88

66

BRACKET

F1B-67557-00-00

Unavailable

67

GASKET

90430-12002-00

$1.81

68

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

69

BOLT

90109-08043-00

$4.09

70

PLATE, RUBBER 1

F1X-U757E-00-00

$19.68

71

PLATE, RUBBER 2

F1X-U757F-00-00

Unavailable

72

COLLAR

90387-06080-00

$7.27

73

BOLT, WITH WASHER

90119-06827-00

Unavailable
