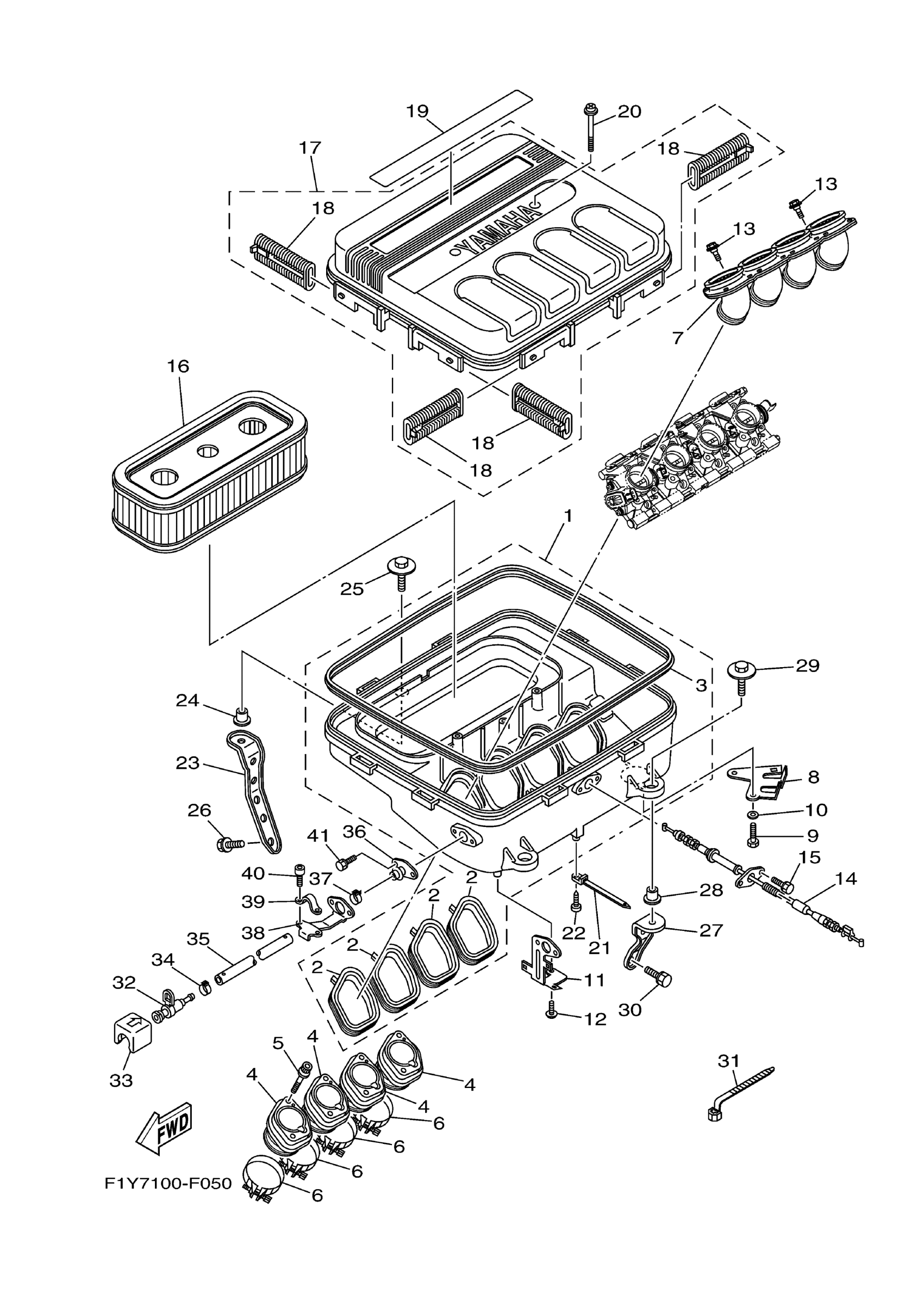

Yamaha FX1000AG (WaveRunner FX Cruiser) F1Y9 2008 INTAKE Diagram

#

Description
Price

1

AIR CLEANER ASSY.

60E-14410-02-00

$325.36

2

. SEAL

60E-14239-00-00

Unavailable

3

. SEAL

60E-14457-00-00

$23.87

4

JOINT, THROTTLE BODY 1

60E-13795-00-00

Unavailable

5

BOLT, HEXAGON SOCKET HEAD

90110-08020-00

$4.03

6

HOSE CLAMP ASSY

90450-57002-00

$17.95

7

RIBBON, SUB ASSY

60E-1440A-02-00

$937.30

8

BRACKET 3

6B6-14869-00-00

Unavailable

9

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.78

10

WASHER, PLAIN (646)

92990-06600-00

$2.80

11

BRACKET

60E-14867-00-00

Unavailable

12

SCREW, ROUND TAPPING

90160-05003-00

$5.31

13

BOLT

90109-06053-00

$3.79

14

CABLE, THROTTLE 1

6B6-26311-12-00

$113.42

15

BOLT, WITH WASHER

90119-06078-00

$2.24

16

ELEMENT, AIR CLEANER

6B6-14451-01-00

$184.13

17

AIR CLEANER ASSY 2

60E-14420-01-00

Unavailable

18

. HOLDER

66V-13898-00-00

$8.73

19

GRAPHIC 1

60E-2339E-A0-00

$61.18

20

SCREW, WITH WASHER

90159-05006-00

Unavailable

21

CLAMP

90465-12M53-00

$4.93

22

SCREW, ROUND TAPPING

90160-05003-00

$5.31

23

STAY

60E-14413-00-00

$18.49

24

COLLAR

60E-14449-00-94

$15.07

25

BOLT, WITH WASHER

90119-08050-00

$4.55

26

BOLT, WITH WASHER

90119-08032-00

$4.03

27

STAY 2

60E-14414-00-00

$15.66

28

COLLAR

60E-14449-00-94

$15.07

29

BOLT, WITH WASHER

90119-08050-00

$4.55

30

BOLT, WITH WASHER

90119-08032-00

$4.03

31

CLAMP

90464-20005-00

$2.16

32

FUEL PIPE JOINT

60E-24300-01-00

$30.13

33

COVER

60E-24474-00-00

$3.58

34

HOSE CLAMP ASSY

90450-17M17-00

$7.59

35

HOSE

60E-14294-03-00

Unavailable

36

SEAL

60E-24329-00-00

$5.82

37

CLIP

90467-090A4-00

$1.29

38

STAY

60E-24364-00-00

Unavailable

39

CLAMP, FUEL PIPE 1

60E-24366-00-00

Unavailable

40

BOLT

91380-04008-00

$5.37

41

BOLT, WITH WASHER(61B)

97513-06516-00

Unavailable
