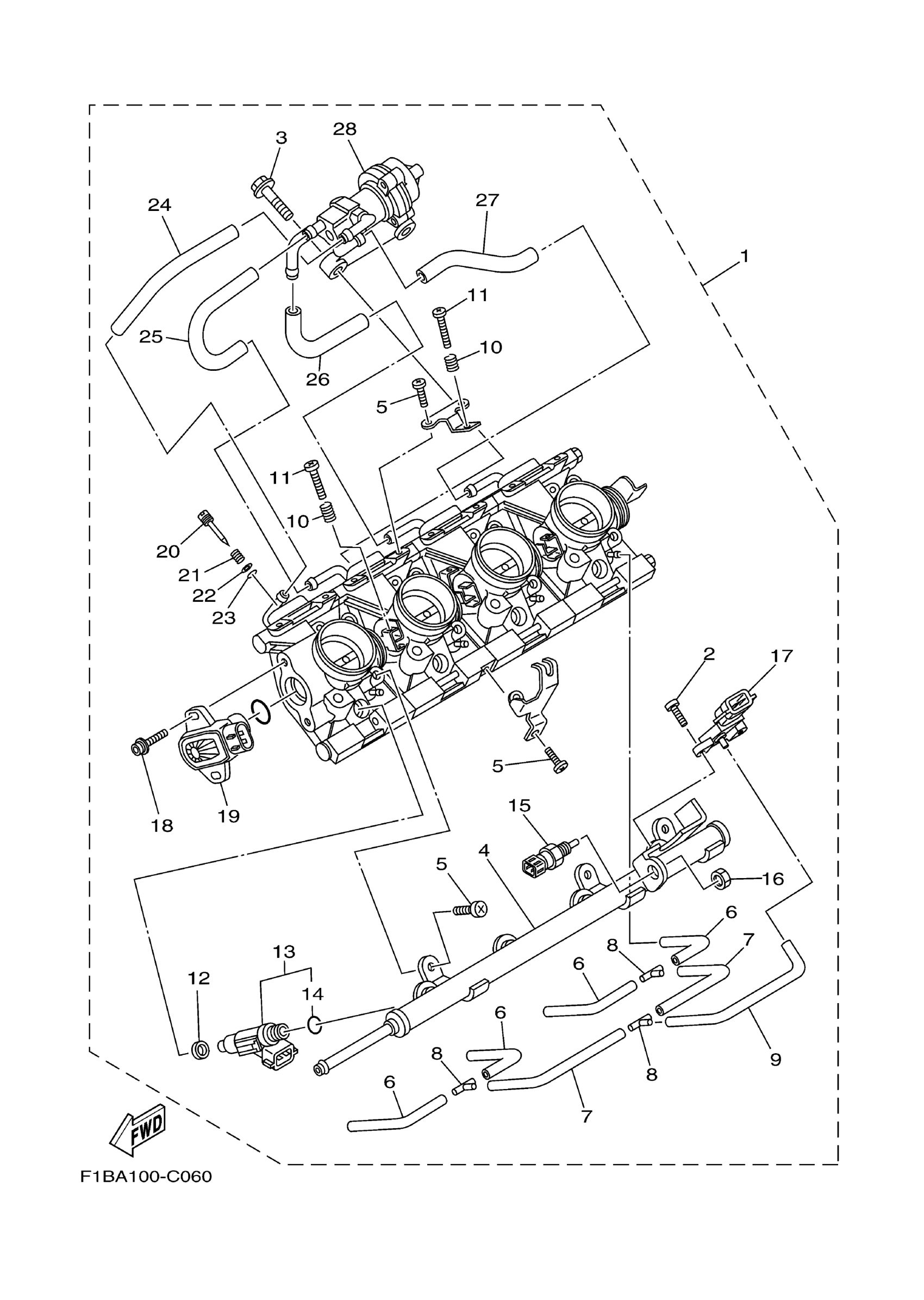

Yamaha FX1000AG (WaveRunner FX Cruiser) F1Y9 2008 INJECTION PUMP Diagram

#

Description
Price

1

THROTTLE BODY ASSY

60E-13750-21-00

Unavailable

2

. SCREW 3

68V-81147-00-00

Unavailable

3

. BOLT

63P-14446-00-00

Unavailable

4

. DELIVERY PIPE

60E-12880-11-00

Unavailable

5

. SCREW

60E-14216-00-00

Unavailable

6

HOSE

5FL-14987-10-00

Unavailable

7

PIPE

5FL-14349-10-00

$7.99

8

NIPPLE

4N0-14251-00-00

Unavailable

9

PIPE

5PW-14396-00-00

$11.99

10

SPRING, THROTTLE VALVE

68V-14331-00-00

Unavailable

11

. SCREW, THROTTLE

69J-14321-00-00

Unavailable

12

GASKET

90430-09002-00

$11.49

13

. INJECTOR

60E-13761-10-00

Unavailable

14

.. O-RING

60E-14147-00-00

Unavailable

15

THERMOSENSOR

65L-85886-00-00

Unavailable

16

. NUT

60E-14358-00-00

Unavailable

17

. SENSOR, PRESSURE

60E-82380-10-00

Unavailable

18

. SCREW 1

68V-81145-01-00

Unavailable

19

. THROTTLE SENSOR ASSY

60E-85885-10-00

Unavailable

20

. SCREW, PILOT

4BH-14923-00-00

Unavailable

21

. SPRING, AIR ADJUSTING

4BH-14134-00-00

Unavailable

22

WASHER

3L5-14962-00-00

Unavailable

23

O-RING, PILOT SCREW

3H1-14147-00-00

Unavailable

24

. HOSE 1

60E-13545-00-00

Unavailable

25

. HOSE 2

60E-13546-00-00

Unavailable

26

. HOSE 3

60E-13547-00-00

Unavailable

27

. HOSE, AIR 4

60E-13548-00-00

Unavailable

28

. BY-PASS VALVE MOTOR ASSY

60E-13660-00-00

Unavailable
