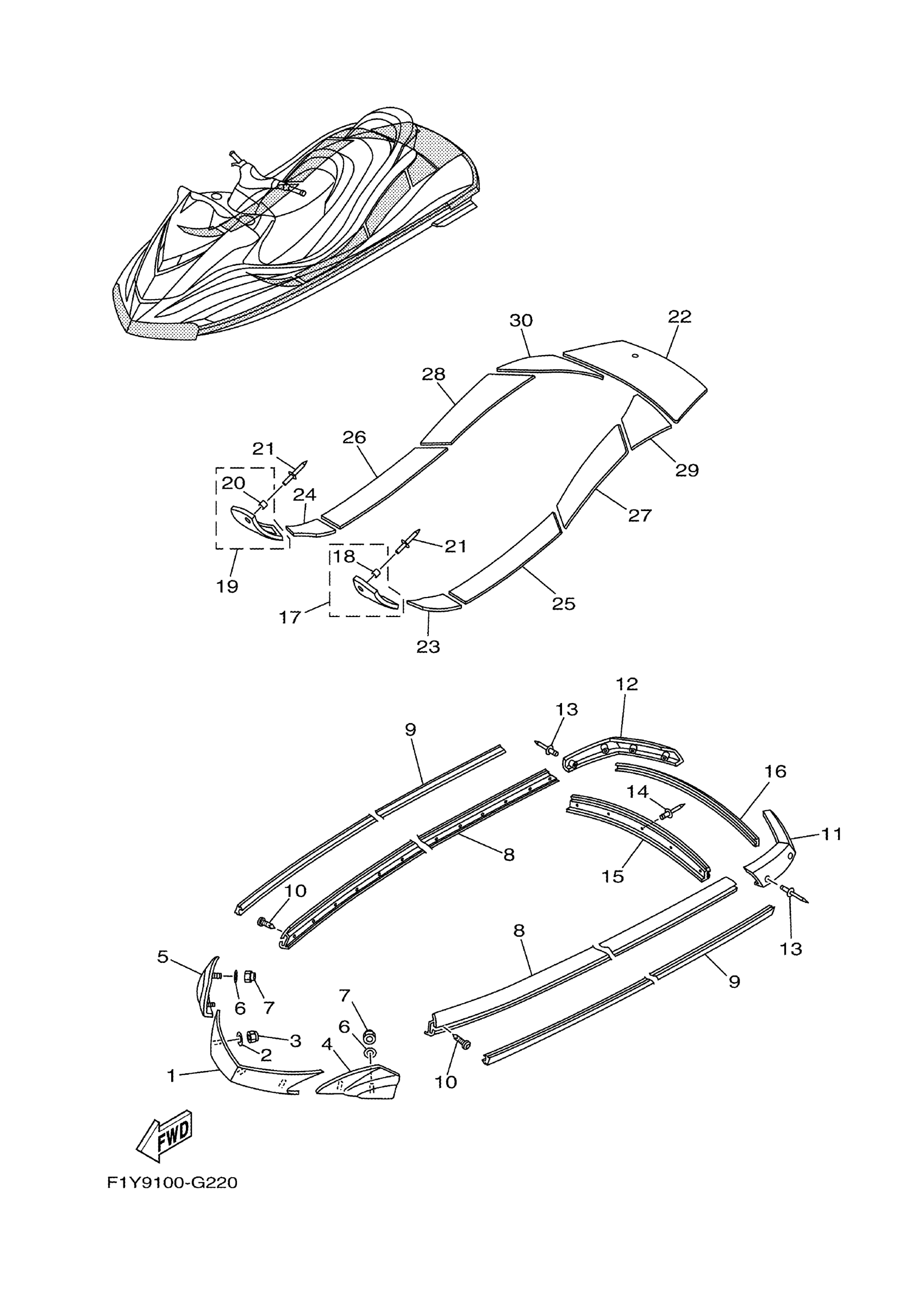

Yamaha FX1000AG (WaveRunner FX Cruiser) F1Y9 2008 GUNWALE MAT Diagram
#
1
BOW GUNWALE COMP.
F1S-U2501-10-00
Unavailable
2
WASHER
9299R-06200-00
Unavailable
3
NUT, NYLON
9572R-06300-00
Unavailable
4
JOINT, GUNWALE LH
F1S-U252E-10-00
Unavailable
5
JOINT, GUNWALE RH
F1S-U252F-10-00
Unavailable
6
WASHER
9299R-06200-00
Unavailable
7
NUT, NYLON
9572R-06300-00
Unavailable
8
GUNWALE, SIDE
F1B-U2512-00-00
Unavailable
9
INNER,GUNWALE
F1B-U2519-10-00
Unavailable
10
SCREW,TAPPING
90169-059U1-00
Unavailable
11
GUNWALE, STERN 1
F1B-U251D-02-00
Unavailable
12
GUNWALE, STERN 2
F1B-U251E-02-00
Unavailable
13
RIVET, BLIND
90267-48825-00
Unavailable
14
RIVET, BLIND
90267-489US-00
Unavailable
15
COVER, GUNWALE 1
F1B-U252C-00-00
Unavailable
16
COVER, GUNWALE 2
F1B-U252D-10-00
Unavailable
17
FOOT STEP ASSY LH
F1S-U350V-00-00
Unavailable
18
. COLLAR
90387-06867-00
Unavailable
19
FOOT STEP ASSY RH
F1S-U350W-00-00
Unavailable
20
. COLLAR
90387-06867-00
Unavailable
21
RIVET, BLIND
90267-48819-00
Unavailable
22
MAT, UPPER
F1S-U3581-10-00
Unavailable
23
MAT, STEP 1
F1S-U351H-01-00
Unavailable
24
MAT, STEP 2
F1S-U351J-01-00
Unavailable
25
MAT, STEP 3
F1S-U351K-10-00
Unavailable
26
MAT, STEP 4
F1S-U351M-10-00
Unavailable
27
MAT, STEP 5
F1S-U351N-10-00
Unavailable
28
MAT, STEP 6
F1S-U351P-10-00
Unavailable
29
MAT, STEP 7
F1S-U351R-10-00
Unavailable
30
MAT, STEP 8
F1S-U351S-10-00
Unavailable
