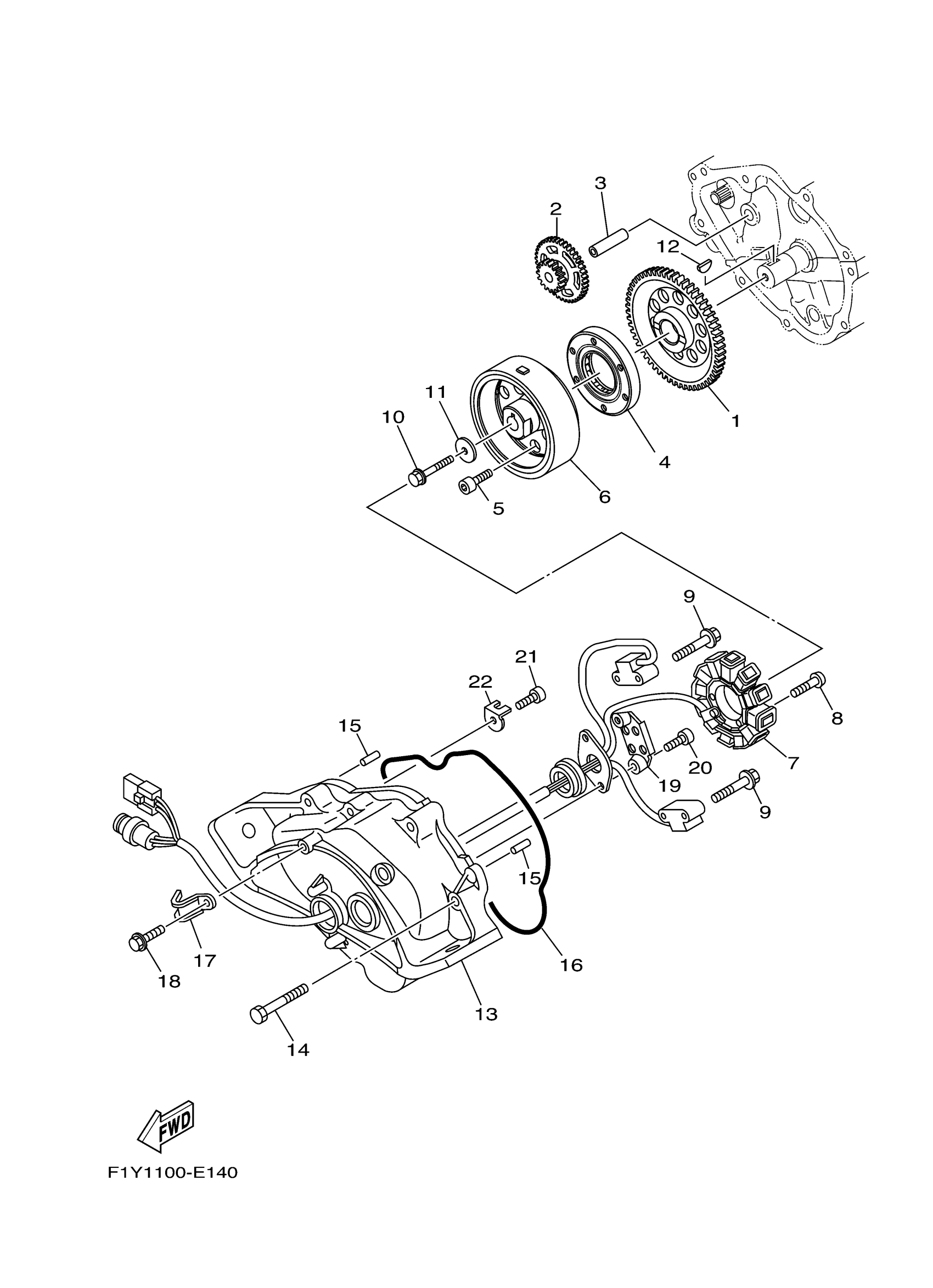

Yamaha FX1000AG (WaveRunner FX Cruiser) F1Y9 2008 GENERATOR Diagram

#

Description
Price

1

GEAR 3

6D3-15515-00-00

$217.90

2

GEAR, IDLER 2

60E-15517-00-00

$110.43

3

SHAFT 1

60E-15521-00-00

$11.18

4

STARTER ONE-WAY ASSY

4WM-15590-00-00

$281.25

5

BOLT, SOCKET

91317-08020-00

$2.19

6

ROTOR ASSY

60E-81450-00-00

$532.82

7

STATOR ASSY

60E-81410-01-00

$483.57

8

SCREW

90149-06013-00

Unavailable

9

BOLT, WITH WASHER

97513-05514-00

$3.58

10

BOLT, WASHER BASED

90105-105A6-00

Unavailable

11

WASHER, PLATE

90201-103U7-00

Unavailable

12

KEY, WOODRUFF(1WG)

90280-03047-00

$4.54

13

COVER, FLYWHEEL

60E-81337-00-94

$476.10

14

BOLT, WITH WASHER

90119-10016-00

$6.27

15

PIN, DOWEL

93608-16M16-00

$2.41

16

O-RING

93212-04001-00

$26.85

17

CLAMP

90462-10016-00

$10.99

18

BOLT,SOCKET

91380-05010-00

Unavailable

19

CLAMP

60E-81328-00-00

$7.16

20

BOLT,SOCKET

91317-06014-00

Unavailable

21

BOLT, SOCKET

91317-05010-00

Unavailable

22

PLATE

6D3-81845-00-00

$1.64
