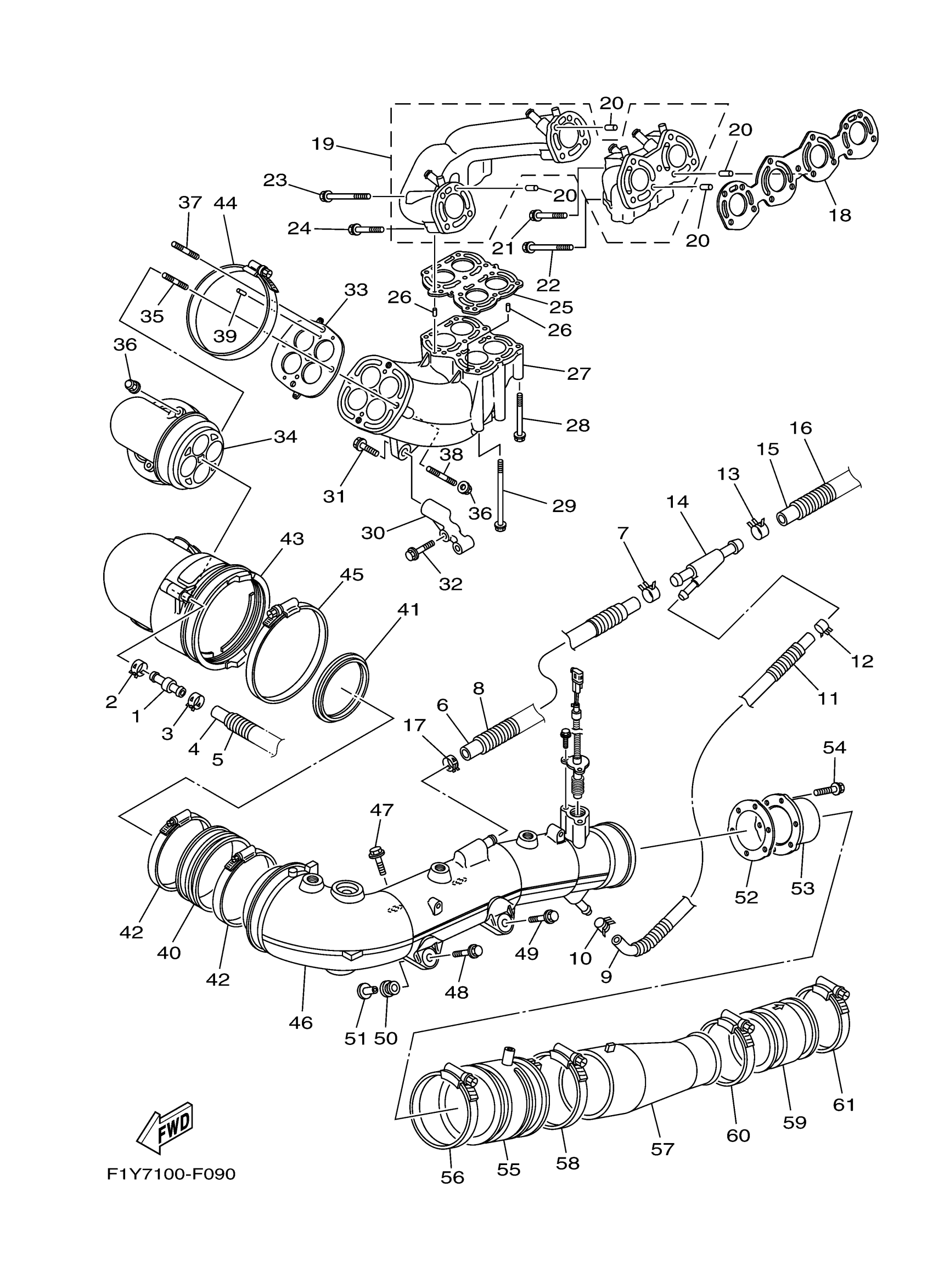

Yamaha FX1000AG (WaveRunner FX Cruiser) F1Y9 2008 EXHAUST 1 Diagram
#
1
JOINT, HOSE 4
60E-12594-00-00
Unavailable
2
CLIP
90467-120A0-00
Unavailable
3
CLIP
90467-130A0-00
Unavailable
4
HOSE
90445-14M03-00
Unavailable
5
HOSE(GK5)
90446-20M65-00
$7.49
6
HOSE (L430)
90445-20003-00
Unavailable
7
CLIP
90467-200A0-00
Unavailable
8
HOSE, WITH SPRING (L380)
90447-22008-00
Unavailable
9
HOSE, 4
60E-1244G-00-00
Unavailable
10
CLIP
90467-130A0-00
Unavailable
11
HOSE, WITH SPRING (L205)
90447-15001-00
Unavailable
12
CLIP
90467-150A0-00
Unavailable
13
CLIP
90467-200A0-00
Unavailable
14
JOINT, HOSE 1
60E-12581-00-00
Unavailable
15
HOSE (L720)
90445-20004-00
Unavailable
16
HOSE, WITH SPRING (L610)
90447-22012-00
Unavailable
17
CLIP
90467-200A0-00
Unavailable
18
GASKET, EXHAUST PIPE
60E-14613-01-00
Unavailable
19
EXHAUST PIPE ASSY 1
60E-14610-00-94
Unavailable
20
PIN, DOWEL
93608-16M16-00
Unavailable
21
BOLT, WITH WASHER
90119-08029-00
Unavailable
22
BOLT, WITH WASHER
90119-08034-00
Unavailable
23
BOLT, WITH WASHER
90119-08029-00
Unavailable
24
BOLT, WITH WASHER
90119-08M66-00
Unavailable
25
GASKET, MUFFLER DAMPER 1
60E-14739-02-00
Unavailable
26
PIN, DOWEL (614)
93606-12019-00
Unavailable
27
PIPE, EXHAUST 3
60E-14631-00-94
Unavailable
28
BOLT, WITH WASHER
90119-08036-00
Unavailable
29
BOLT, WITH WASHER
90119-08031-00
Unavailable
30
STAY, MUFFLER 1
60E-14771-00-94
Unavailable
31
BOLT, WITH WASHER
90119-10013-00
Unavailable
32
BOLT, WITH WASHER
90119-08043-00
Unavailable
33
GASKET, MUFFLER DAMPER 2
60E-14749-02-00
Unavailable
34
RING, JOINT
60E-14712-02-94
Unavailable
35
BOLT, STUD
90116-10016-00
Unavailable
36
NUT
90179-10M35-00
Unavailable
37
BOLT, STUD
90116-10017-00
Unavailable
38
BOLT, STUD
90116-10018-00
Unavailable
39
PIN, DOWEL (614)
93606-12019-00
Unavailable
40
JOINT, EXHAUST 2
60E-14625-00-00
Unavailable
41
. SEAL, EXHAUST
60E-14642-00-00
Unavailable
42
HOSE CLAMP ASSY(62T)
90450-99M06-00
Unavailable
43
JOINT, EXHAUST 1
60E-14615-00-00
Unavailable
44
HOSE CLAMP ASSY
90450-99M18-00
Unavailable
45
HOSE CLAMP ASSY
90450-99M18-00
Unavailable
46
MUFFLER 2
60E-14721-10-94
Unavailable
47
BOLT, WITH WASHER
90119-10013-00
Unavailable
48
BOLT, WITH WASHER
90119-10011-00
Unavailable
49
BOLT, WITH WASHER
90119-10017-00
Unavailable
50
GROMMET(62L)
90480-21M63-00
Unavailable
51
COLLAR
90387-11008-00
Unavailable
52
. GASKET, EXHAUST PIPE
60E-14623-00-00
Unavailable
53
PIPE, TAIL
60E-14784-10-94
Unavailable
54
BOLT, FLANGE(2UJ)
95024-06016-00
Unavailable
55
PIPE 2
60E-1475E-00-00
Unavailable
56
HOSE CLAMP ASSY(62T)
90450-99M06-00
Unavailable
57
PIPE, OUTLET
60E-14752-10-94
Unavailable
58
HOSE CLAMP ASSY(62T)
90450-99M06-00
Unavailable
59
PIPE 3
6B6-1475F-00-00
Unavailable
60
CLAMP, HOSE
90460-90M11-00
Unavailable
61
CLAMP, HOSE
90460-90M11-00
Unavailable
