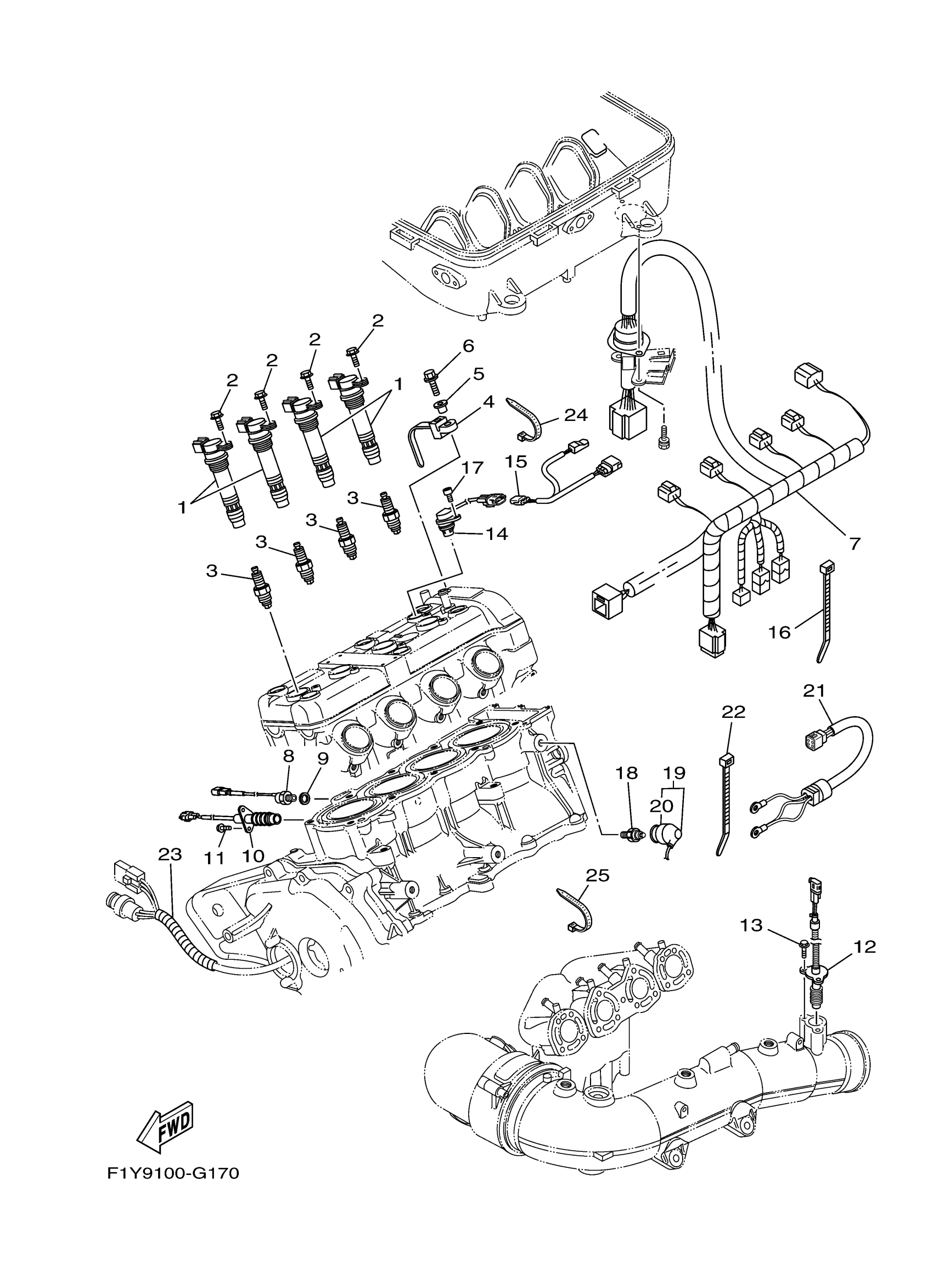

Yamaha FX1000AG (WaveRunner FX Cruiser) F1Y9 2008 ELECTRICAL 2 Diagram

#

Description
Price

1

IGNITION COIL ASSY

6D3-82310-01-00

$207.56

2

BOLT, FLANGE

95814-06016-00

$1.82

3

CR9EB NGK SPLUG 4PK

CR9-EB000-00-00

$7.28

4

CLAMP

90465-12M53-00

$5.00

5

COLLAR

90387-06M05-00

$6.45

6

BOLT, FLANGE

95814-06016-00

$1.82

7

WIRE HARNESS ASSY 2

60E-8259M-30-00

$360.59

8

THERMOSENSOR ASSY

60E-85790-02-00

Unavailable

9

WASHER, PLATE

92990-10600-00

$2.57

10

THERMO SWITCH ASSY

60E-82560-A1-00

$104.53

11

BOLT, HEXAGON W/W DEEP RECESS

97E95-06416-00

$0.76

12

THERMO SWITCH ASSY

60E-82560-01-00

$104.53

13

BOLT, HEXAGON W/W DEEP RECESS

97E95-06416-00

$0.76

14

SENSOR, CAM POSITION

60E-85896-02-00

$159.08

15

CONDENSER 1

60E-81325-10-00

$61.99

16

CLAMP

90465-13M18-00

$1.71

17

BOLT,SOCKET

91380-06016-00

Unavailable

18

OIL PRESSURE SWITCH ASSY

68V-82504-00-00

$62.91

19

LEAD WIRE ASSY

60E-81315-01-00

$41.99

20

CAP

60E-82532-01-00

Unavailable

21

WIRE, LEAD

6AA-82531-00-00

$80.29

22

CLAMP

90465-13M18-00

$1.71

23

HOSE, WITH SPRING

90447-19004-00

Unavailable

24

CLAMP (6E5)

90465-13M11-00

Unavailable

25

CLAMP (6E5)

90465-13M11-00

Unavailable
