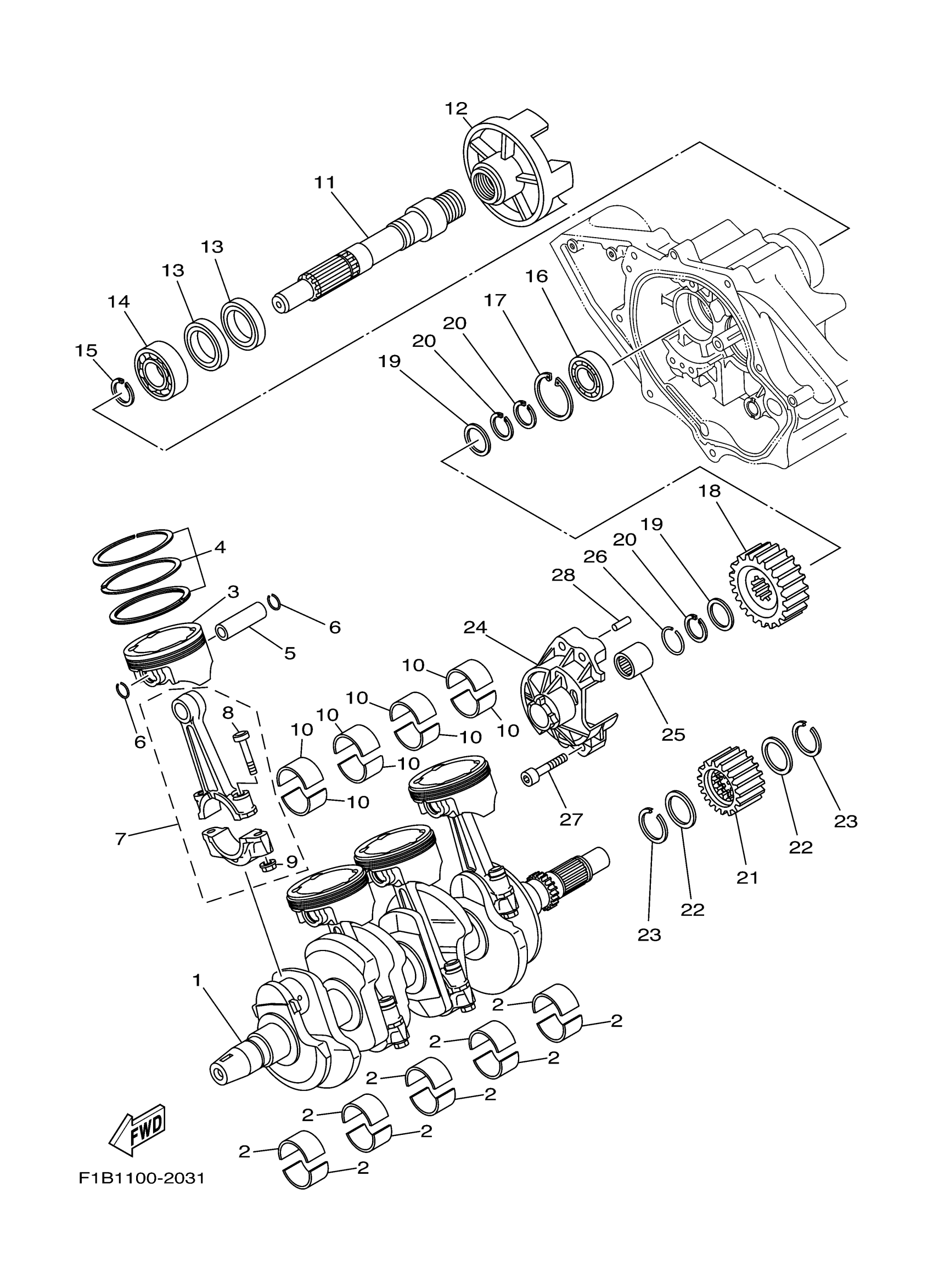

Yamaha FX1000AG (WaveRunner FX Cruiser) F1Y9 2008 CRANKSHAFT PISTON Diagram

#

Description
Price

1

CRANKSHAFT

60E-11411-11-00

$1,491.62

2

PLANE BEARING, CRANKSHAFT 1

60E-11416-00-00

$15.89

2

PLANE BEARING, CRANKSHAFT 1

60E-11416-10-00

$13.70

2

PLANE BEARING, CRANKSHAFT 1

60E-11416-20-00

$18.49

2

PLANE BEARING, CRANKSHAFT 1

60E-11416-30-00

$13.70

2

PLANE BEARING, CRANKSHAFT 1

60E-11416-40-00

$17.41

3

PISTON (STD)

60E-11631-00-B0

$70.39

3

PISTON (0.50MM O/S)

60E-11636-00-00

Unavailable

4

PISTON RING SET (S

4XV-11603-01-00

$34.82

4

PISTON RING SET (0.5MM OS)

60E-11605-00-00

$42.60

5

PIN, PISTON

4XV-11633-00-00

$23.70

6

CLIP (1J7)

90468-12069-00

$6.22

7

CONNECTING ROD ASSY

5PW-11650-00-00

Unavailable

8

BOLT, CONNECTING ROD

5JW-11654-00-00

$5.09

9

NUT (11H)

90179-08327-00

$6.52

10

PLANE BEARING, CONNECTING ROD

60E-11656-00-00

$15.89

10

PLANE BEARING, CONNECTING ROD

60E-11656-10-00

$15.89

10

PLANE BEARING, CONNECTING ROD

60E-11656-20-00

$11.85

10

PLANE BEARING, CONNECTING ROD

60E-11656-30-00

$11.85

11

SHAFT, TRANSFER

60E-17572-01-00

$286.35

12

FLANGE, COUPLING

66E-45813-10-94

$107.56

13

OIL SEAL

93101-35004-00

$25.49

14

BEARING

93306-20532-00

Unavailable

15

CIRCLIP (4L0)

93440-25084-00

Unavailable

16

BEARING(1FF)

93306-00519-00

Unavailable

17

CIRCLIP(48Y)

99009-47500-00

Unavailable

18

GEAR, TRANSFER DRIVEN

60E-17588-00-00

$313.62

19

WASHER

90209-21011-00

$5.45

20

CIRCLIP (4L0)

93440-25084-00

Unavailable

21

GEAR, TRANSFER DRIVE

60E-17586-00-00

$215.14

22

WASHER

90209-25008-00

$4.44

23

CIRCLIP (2H7)

93440-28062-00

Unavailable

24

HOUSING, BEARING

60E-17521-00-00

$201.50

25

BEARING

93311-32079-00

$55.99

26

CIRCLIP

93450-30150-00

Unavailable

27

BOLT,SOCKET

91317-08040-00

Unavailable

28

PIN, DOWEL (614)

93606-12019-00

Unavailable
