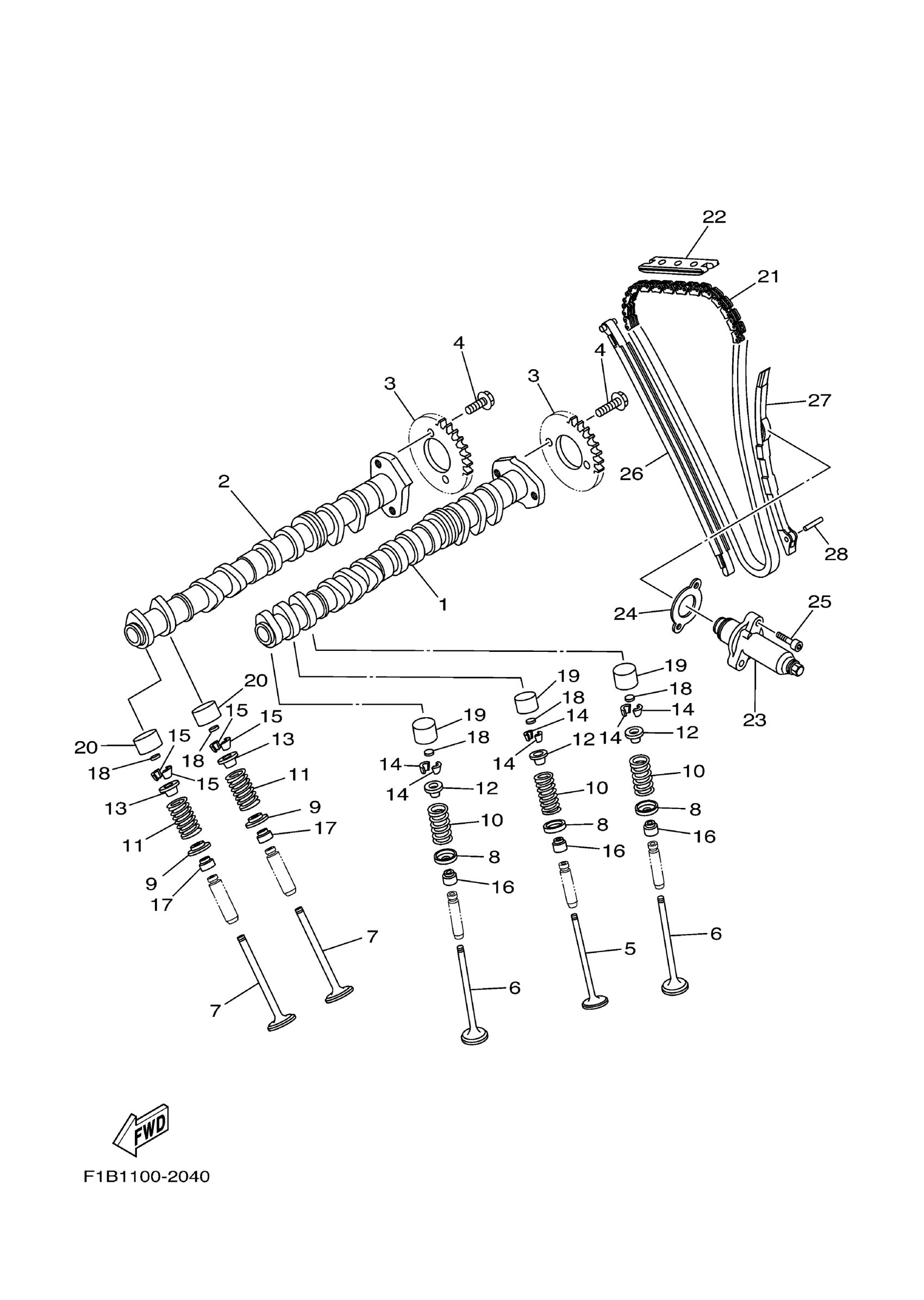

Yamaha FX1000AF (WaveRunner FX Cruiser) F1Y7 2007 VALVE Diagram

#

Description
Price

1

CAMSHAFT 1

60E-12171-00-00

Unavailable

2

CAMSHAFT 2

60E-12181-00-00

Unavailable

3

SPROCKET, CAM CHAIN

6D3-12176-00-00

Unavailable

4

BOLT, FLANGE

90105-07004-00

$5.60

5

VALVE, INTAKE

4XV-12111-00-00

$32.99

6

VALVE, INTAKE 2

4XV-12112-00-00

$20.99

7

VALVE, EXHAUST

5LV-12121-00-00

$113.99

8

SEAT, VALVE SPRING

1HX-12116-01-00

$4.52

9

SEAT, VALVE SPRING 2

3GM-12126-00-00

$4.47

10

SPRING, VALVE INNER

4XV-12113-00-00

$7.99

11

SPRING, VALVE OUTER

4XV-12114-00-00

$20.99

12

RETAINER, VALVE SPRING

1HX-12117-00-00

Unavailable

13

RETAINER, VALVE SPRING

1WG-12117-00-00

Unavailable

14

COTTER, VALVE

1HX-12118-00-00

$7.99

15

COTTER, VALVE

1WG-12118-00-00

$8.99

16

SEAL, VALVE STEM

4TV-12119-00-00

Unavailable

17

SEAL, VALVE STEM

4SV-12119-00-00

Unavailable

18

PAD, ADJUSTING 2 (1.20)

1HX-12168-00-00

Unavailable

18

PAD, ADJUSTING 2 (1.25)

1HX-12168-20-00

Unavailable

18

PAD, ADJUSTING 2 (1.30)

1HX-12168-40-00

Unavailable

18

PAD, ADJUSTING 2 (1.35)

1HX-12168-60-00

Unavailable

18

PAD, ADJUSTING 2 (1.40)

1HX-12168-80-00

Unavailable

18

PAD, ADJUSTING 2 (1.45)

1HX-12168-A0-00

Unavailable

18

PAD, ADJUSTING 2 (1.50)

1HX-12168-F0-00

Unavailable

18

PAD, ADJUSTING 2 (1.55)

1HX-12168-H1-00

Unavailable

18

PAD, ADJUSTING 2 (1.60)

1HX-12168-K1-00

Unavailable

18

PAD, ADJUSTING 2 (1.65)

1HX-12168-M1-00

Unavailable

18

PAD, ADJUSTING 2 (1.70)

1HX-12168-R1-00

Unavailable

18

PAD, ADJUSTING 2 (1.75)

1HX-12168-U1-00

Unavailable

18

PAD, ADJUSTING 2 (1.80)

1HX-12168-W1-00

Unavailable

18

PAD, ADJUSTING 2 (1.85)

1HX-12168-Y1-00

Unavailable

18

PAD, ADJUSTING 2 (1.90)

1HX-12169-11-00

Unavailable

18

PAD, ADJUSTING 2 (1.95)

1HX-12169-31-00

Unavailable

18

PAD, ADJUSTING 2 (2.00)

1HX-12169-50-00

Unavailable

18

PAD, ADJUSTING 2 (2.05)

1HX-12169-70-00

Unavailable

18

PAD, ADJUSTING 2 (2.10)

1HX-12169-90-00

Unavailable

18

PAD, ADJUSTING 2 (2.15)

1HX-12169-E0-00

Unavailable

18

PAD, ADJUSTING 2 (2.20)

1HX-12169-G0-00

Unavailable

18

PAD, ADJUSTING 2 (2.25)

1HX-12169-J0-00

Unavailable

18

PAD, ADJUSTING 2 (2.30)

1HX-12169-L0-00

Unavailable

18

PAD, ADJUSTING 2 (2.35)

1HX-12169-N0-00

Unavailable

18

PAD, ADJUSTING 2 (2.40)

1HX-12169-T0-00

Unavailable

19

LIFTER, VALVE

3LN-12153-10-00

Unavailable

20

LIFTER, VALVE

3FV-12153-19-00

Unavailable

21

CHAIN

94591-49130-00

Unavailable

22

GUIDE, STOPPER 2

5BE-12241-01-00

Unavailable

23

TENSIONER ASSY, CAM CHAIN

6D3-12210-01-00

Unavailable

24

GASKET, TENSIONER CASE

4FM-12213-00-00

Unavailable

25

BOLT,SOCKET

91380-06025-00

Unavailable

26

DAMPER, CHAIN 1

6D3-12251-00-00

Unavailable

27

DAMPER, CHAIN 2

4XV-12252-01-00

Unavailable

28

PIN, DOWEL (8V8)

93607-44190-00

Unavailable
