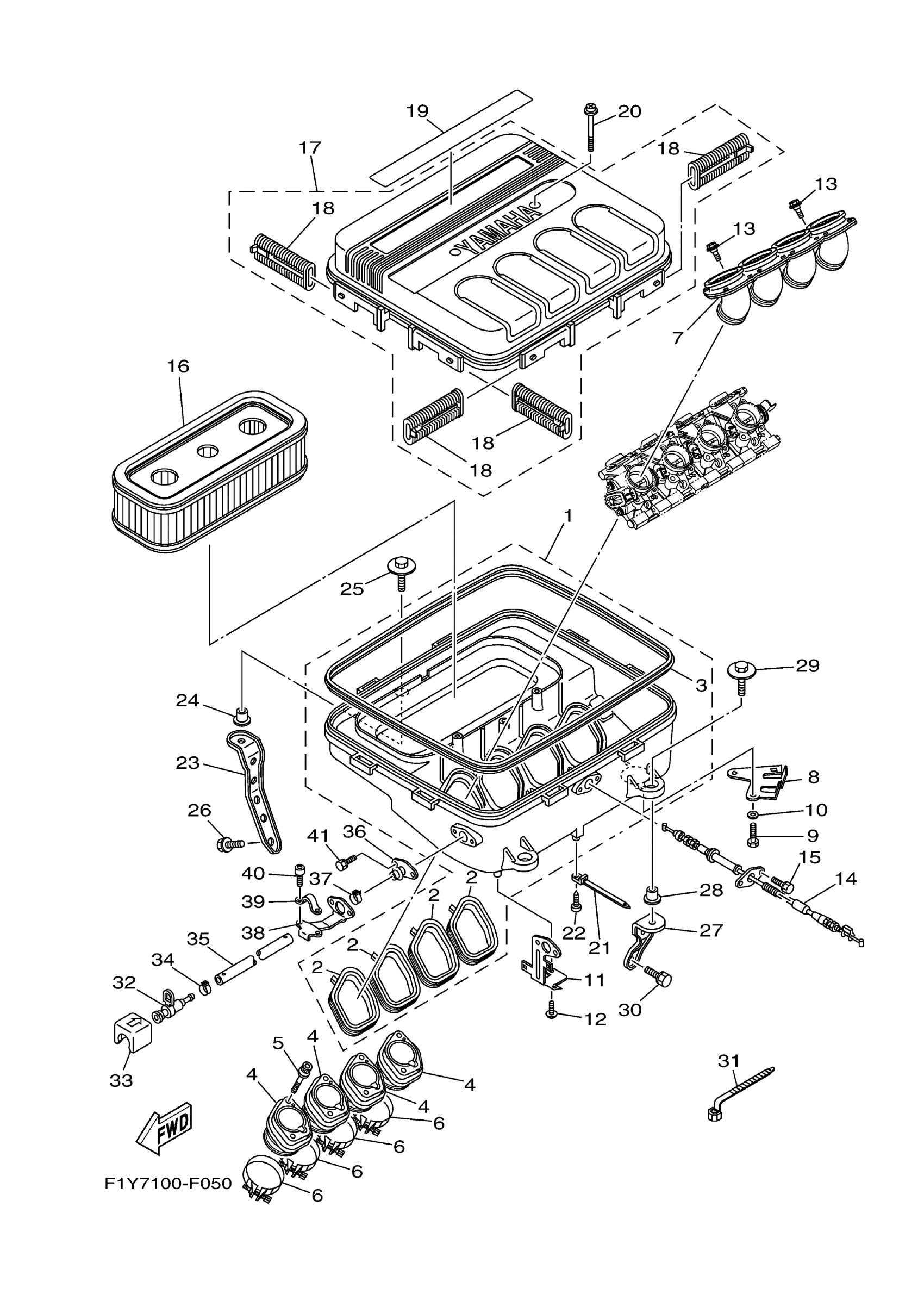

Yamaha FX1000AF (WaveRunner FX Cruiser) F1Y7 2007 INTAKE Diagram
#
1
AIR CLEANER ASSY.
60E-14410-02-00
Unavailable
2
. SEAL
60E-14239-00-00
Unavailable
3
. SEAL
60E-14457-00-00
Unavailable
4
JOINT, THROTTLE BODY 1
60E-13795-00-00
Unavailable
5
BOLT, HEXAGON SOCKET HEAD
90110-08020-00
Unavailable
6
HOSE CLAMP ASSY
90450-57002-00
Unavailable
7
RIBBON, SUB ASSY
60E-1440A-02-00
Unavailable
8
BRACKET 3
6B6-14869-00-00
Unavailable
9
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
$2.76
10
WASHER, PLAIN (646)
92990-06600-00
$2.80
11
BRACKET
60E-14867-00-00
Unavailable
12
SCREW, ROUND TAPPING
90160-05003-00
Unavailable
13
BOLT
90109-06053-00
Unavailable
14
CABLE, THROTTLE 1
6B6-26311-12-00
Unavailable
15
BOLT, WITH WASHER
90119-06078-00
Unavailable
16
ELEMENT, AIR CLEANER
6B6-14451-01-00
Unavailable
17
AIR CLEANER ASSY 2
60E-14420-01-00
Unavailable
18
. HOLDER
66V-13898-00-00
Unavailable
19
GRAPHIC 1
60E-2339E-A0-00
Unavailable
20
SCREW, WITH WASHER
90159-05006-00
Unavailable
21
CLAMP
90465-12M53-00
Unavailable
22
SCREW, ROUND TAPPING
90160-05003-00
Unavailable
23
STAY
60E-14413-00-00
Unavailable
24
COLLAR
60E-14449-00-94
Unavailable
25
BOLT, WITH WASHER
90119-08050-00
Unavailable
26
BOLT, WITH WASHER
90119-08032-00
Unavailable
27
STAY 2
60E-14414-00-00
Unavailable
28
COLLAR
60E-14449-00-94
Unavailable
29
BOLT, WITH WASHER
90119-08050-00
Unavailable
30
BOLT, WITH WASHER
90119-08032-00
Unavailable
31
CLAMP
90464-20005-00
Unavailable
32
FUEL PIPE JOINT
60E-24300-01-00
Unavailable
33
COVER
60E-24474-00-00
Unavailable
34
HOSE CLAMP ASSY
90450-17M17-00
Unavailable
35
HOSE
60E-14294-03-00
Unavailable
36
SEAL
60E-24329-00-00
Unavailable
37
CLIP
90467-090A4-00
Unavailable
38
STAY
60E-24364-00-00
Unavailable
39
CLAMP, FUEL PIPE 1
60E-24366-00-00
Unavailable
40
BOLT
91380-04008-00
Unavailable
41
BOLT, WITH WASHER(61B)
97513-06516-00
Unavailable
