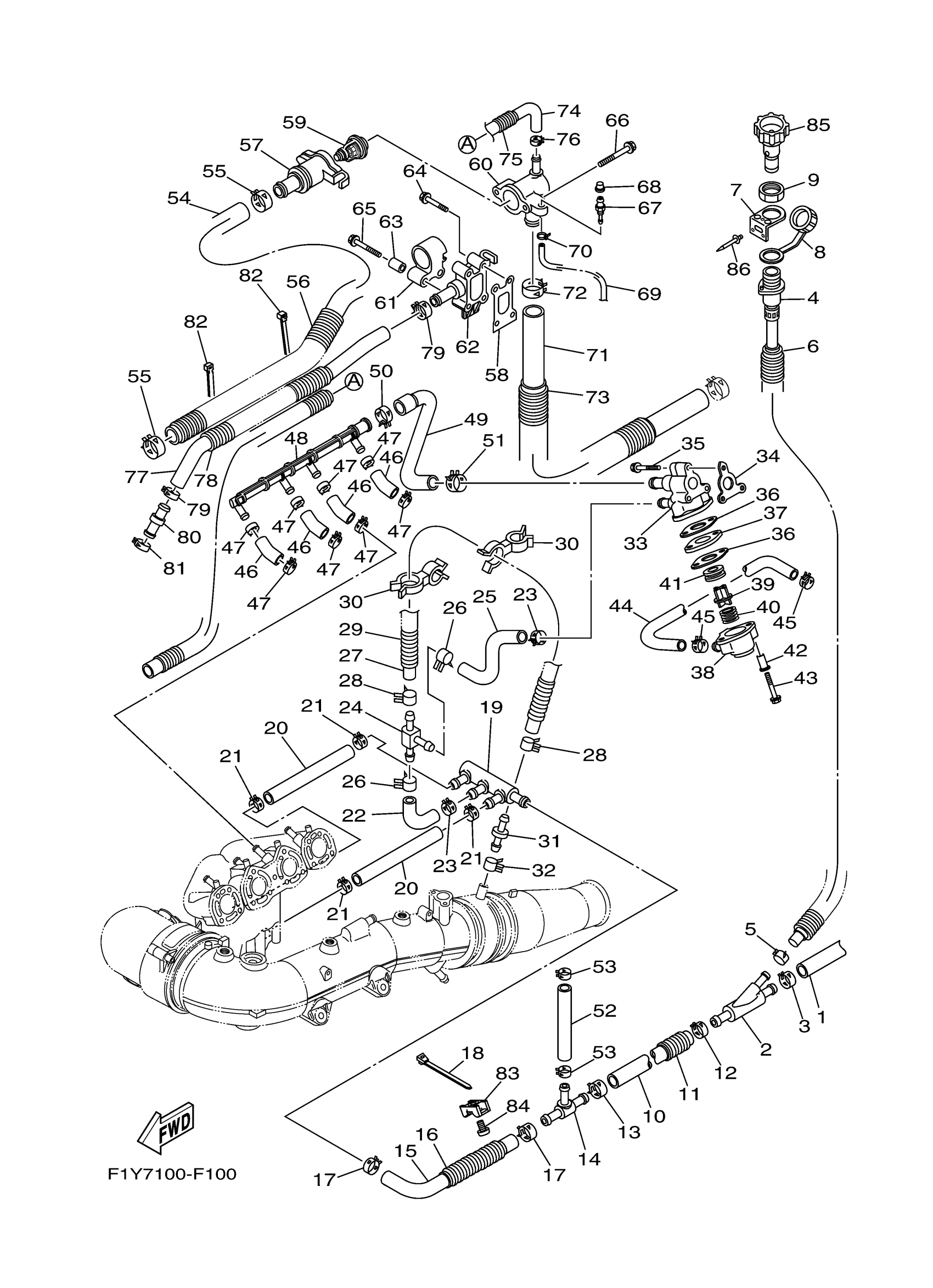

Yamaha FX1000AF (WaveRunner FX Cruiser) F1Y7 2007 EXHAUST 2 Diagram

#

Description
Price

1

HOSE 1

60E-E243A-00-00

Unavailable

2

JOINT, HOSE 1

60E-12581-00-00

$15.49

3

CLIP

90467-200A0-00

$7.40

4

JOINT ASSY

60E-12580-00-00

Unavailable

5

CLIP

90467-150A0-00

$3.33

6

HOSE

90446-24M83-00

Unavailable

7

STAY

60E-12443-00-00

$2.95

8

CAP,1

682-84385-01-00

$9.08

9

NUT

EU0-61652-00-00

$11.48

10

HOSE (L370)

90445-21804-00

Unavailable

11

HOSE, WITH SPRING (L300)

90447-22003-00

$4.55

12

CLIP

90467-200A0-00

$7.40

13

CLIP

90467-200A0-00

$7.40

14

JOINT, HOSE 3

60E-12584-00-00

$6.36

15

HOSE 2

60E-1243E-00-00

$72.71

16

HOSE, WITH SPRING (L100)

90447-22001-00

$6.21

17

CLIP

90467-200A0-00

$7.40

18

CLAMP

90464-55001-00

$5.45

19

JOINT, HOSE 2

60E-12582-00-00

Unavailable

20

HOSE (L150)

90445-18003-00

$10.99

21

CLIP

90467-160A0-00

$2.95

22

HOSE, 3

60E-1243F-10-00

$22.71

23

CLIP

90467-160A0-00

$2.95

24

JOINT, HOSE 5

60E-12598-00-00

$11.99

25

HOSE (L108)

90445-18M03-00

Unavailable

26

CLIP

90467-160A0-00

$2.95

27

HOSE (L1300)

90445-14M22-00

Unavailable

28

CLIP

90467-130A0-00

$2.73

29

HOSE(65R)

90446-20M70-00

Unavailable

30

CLAMP

90464-21001-00

$2.16

31

JOINT 2

60E-1247A-00-00

$3.64

32

CLIP

90467-160A0-00

$2.95

33

JOINT

60E-12479-00-94

$153.02

34

GASKET

60E-12434-00-00

Unavailable

35

BOLT, HEXAGON W/W DEEP RECESS

97E95-06545-00

Unavailable

36

GASKET, COVER

60E-12414-00-00

$3.64

37

PLATE

60E-12535-00-00

$9.08

38

COVER, HOUSING

60E-12422-00-00

Unavailable

39

VALVE, PRESSURE CONTROL

6G5-12416-00-00

Unavailable

40

SPRING, COMPRESSION

90501-16M11-00

$5.63

41

GROMMET

90480-20M05-00

$3.26

42

COLLAR

90387-06M65-00

$8.56

43

BOLT, HEXAGON W/W DEEP RECESS

97E95-06540-00

Unavailable

44

HOSE (L350)

90445-18M13-00

Unavailable

45

CLIP

90467-160A0-00

$2.95

46

HOSE 1

60E-12576-00-00

Unavailable

47

. CLIP

90467-150A1-00

$3.33

48

JOINT 1

60E-12469-00-00

$20.37

49

HOSE 2

60E-12577-00-00

Unavailable

50

CLIP

90467-220A2-00

$4.09

51

CLIP

90467-200A0-00

$7.40

52

HOSE (L130)

90445-18004-00

$5.92

53

CLIP

90467-160A0-00

$2.95

54

HOSE (L365)

90445-26003-00

Unavailable

55

CLIP

90467-240A0-00

$6.82

56

HOSE (L280)

90447-28006-00

$11.99

57

HOUSING, THERMOSTAT

60E-12417-10-94

$99.98

58

GASKET

60E-12435-00-00

$3.64

59

THERMOSTAT

60E-12411-01-00

$116.65

60

COVER, THERMOSTAT

60E-12413-10-94

$113.62

61

JOINT

6B6-12499-00-00

$13.99

62

JOINT

6D3-12446-00-00

$39.38

63

COLLAR

90387-06083-00

$11.35

64

BOLT, FLANGE

90105-06035-00

$2.27

65

BOLT, FLANGE

90105-06054-00

$2.27

66

BOLT, FLANGE

90105-06035-00

$2.27

67

NIPPLE, GREASE

61L-5169A-00-00

$7.40

68

CAP, GREASE NIPPLE

663-45119-01-00

Unavailable

69

HOSE, DELIVERY

6AP-5110K-00-00

Unavailable

70

CLAMP

90465-10098-00

$1.68

71

HOSE (L900)

90445-25003-00

Unavailable

72

CLIP

90467-240A0-00

$6.82

73

TUBE (L800)

90447-28002-00

Unavailable

74

HOSE 8

6P6-12552-00-00

Unavailable

75

TUBE (L1150)

90447-22002-00

$22.71

76

CLIP

90467-120A0-00

$4.55

77

HOSE (L530)

90445-21004-00

$25.49

78

HOSE(63M)

90446-27M55-00

Unavailable

79

CLIP

90467-200A0-00

$7.40

80

CONNECTION

60E-51142-00-00

$3.18

81

CLIP

90467-200A0-00

$7.40

82

CLAMP

90465-14M66-00

Unavailable

83

BRACKET 1

60E-1244E-00-00

$7.27

84

SCREW, WITH WASHER(6L2)

97985-05210-00

Unavailable

85

CONDUCTION ASSY (US)

67X-E2590-00-00

$2.08

86

RIVET, BLIND

90267-48802-00

$1.98
