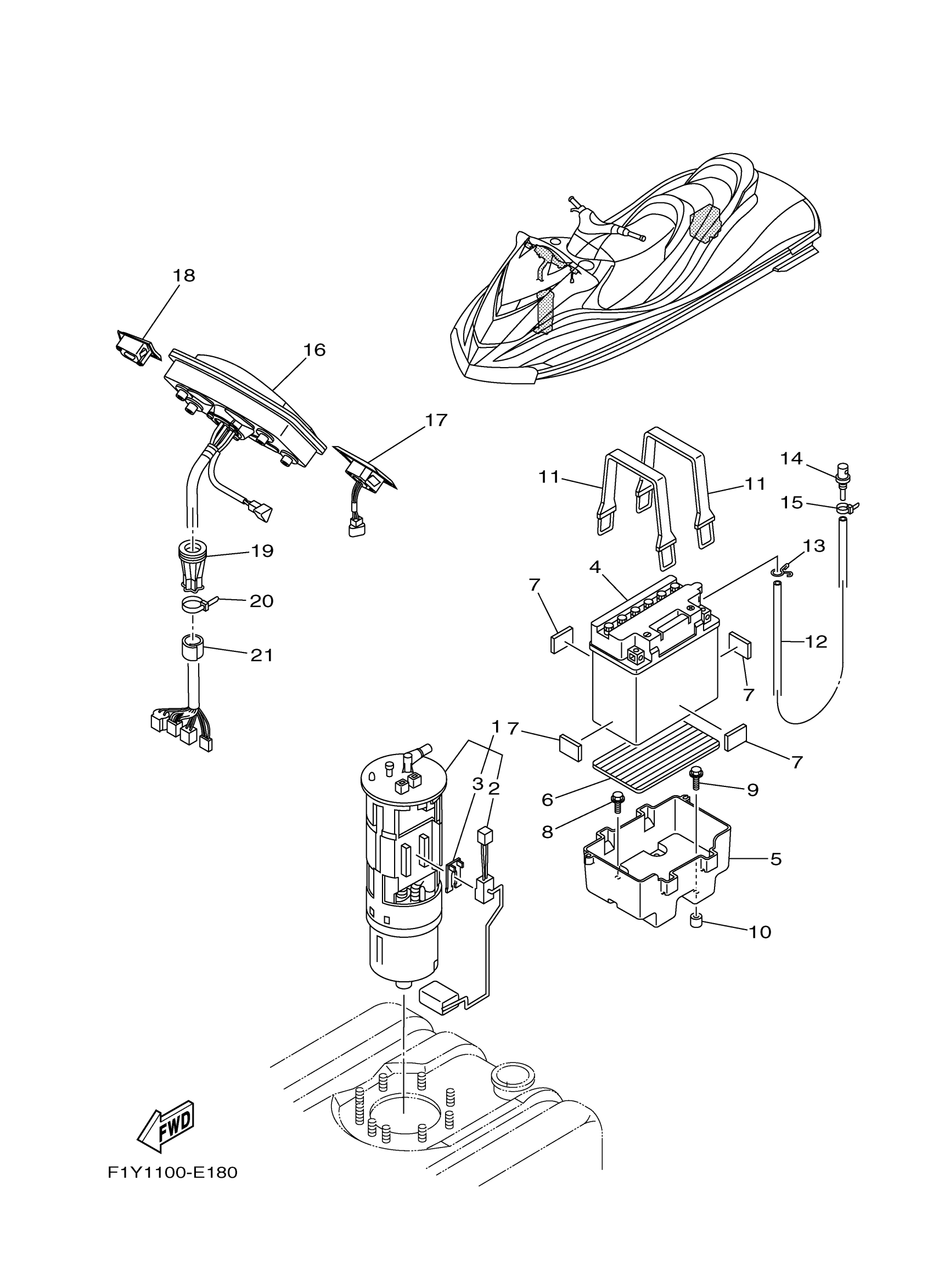

Yamaha FX1000AF (WaveRunner FX Cruiser) F1Y7 2007 ELECTRICAL 3 Diagram

#

Description
Price

1

FUEL PUMP COMP.

60E-13907-0X-00

Unavailable

2

. FUEL SENDER ASSY

60E-682E0-00-00

$243.92

3

DAMPER, STOPPER

60E-82556-10-00

$18.49

4

BATTERY ASSY

EU0-82110-08-00

Unavailable

5

CASE, BATTERY

GP7-U8211-00-00

Unavailable

6

PAD, BATTERY

F1S-U8221-00-00

$2.75

7

PAD, BATTERY

EU0-U8221-31-00

$1.65

8

BOLT, WITH WASHER

90119-069US-00

$2.52

9

BOLT, WITH WASHER

90119-06820-00

$3.52

10

PLATE, BATTERY

F1B-6821G-01-00

$4.09

11

BAND,BATTERY 1

EU0-U821D-00-00

$7.33

12

HOSE, AIR VENT

F0D-U785G-11-00

Unavailable

13

CLIP

90467-089U1-00

$1.44

14

NIPPLE

GJ3-6215F-00-00

$9.08

15

CLAMP

90465-10098-00

$1.68

16

METER ASSY

F1Y-6820A-12-00

Unavailable

17

SWITCH ASSY.

F1X-68090-00-00

$192.41

18

PANEL

F1Y-68322-00-00

$115.14

19

GROMMET

F3J-U822E-01-00

$5.59

20

CLAMP

90464-32801-00

$1.23

21

PACKING, HOSE 2

GJ1-U7578-12-00

Unavailable
