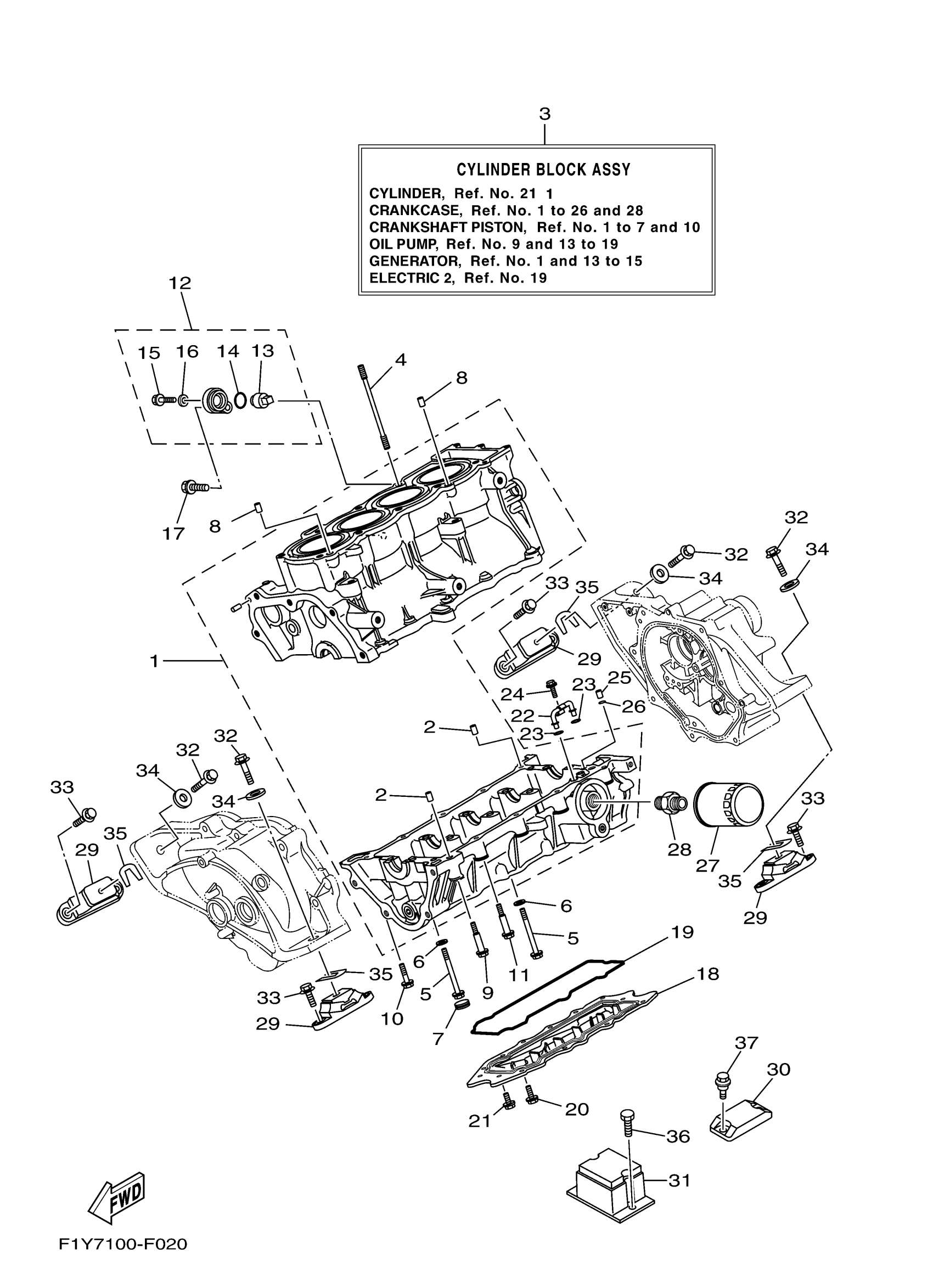

Yamaha FX1000AF (WaveRunner FX Cruiser) F1Y7 2007 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

60E-15100-01-8P

$2,636.35

2

PIN, DOWEL(3VD)

99530-10114-00

$2.13

3

CYLINDER BLOCK ASSY

60E-W009B-01-8P

$7,687.86

4

BOLT, STUD

90116-10619-00

$9.17

5

BOLT, WASHER BASED

90105-093A5-00

$8.98

6

WASHER, PLATE(1AA)

90201-096J9-00

$2.61

7

GROMMET, ANODE

60E-11328-00-00

$2.04

8

PIN, DOWEL(3VD)

99530-10114-00

$2.13

9

BOLT

90109-06051-00

$5.00

10

BOLT, FLANGE(3JP)

95814-06070-00

$5.75

11

BOLT, FLANGE

90105-06M17-00

$5.29

12

ANODE COVER ASSY

69J-11301-02-00

Unavailable

13

ANODE

6ML-11325-00-00

Unavailable

14

GROMMET, ANODE

67F-11328-01-00

$3.50

15

BOLT (689)

90105-06M07-00

$1.82

16

. GASKET

90430-06M03-00

$2.80

17

BOLT, HEXAGON W/W DEEP RECESS

97E95-08540-00

$1.86

18

PAN, OIL

60E-1310A-00-00

Unavailable

19

GASKET

60E-13557-00-00

$27.26

20

BOLT, WITH WASHER(61B)

97513-06520-00

Unavailable

21

BOLT, WITH WASHER(61B)

97513-06525-00

Unavailable

22

PIPE, DELIVERY 1

60E-13161-00-00

$24.98

23

O-RING(26H)

93210-06667-00

Unavailable

24

BOLT, FLANGE(4MY)

95027-06010-00

Unavailable

25

PIN, DOWEL

99530-08012-00

$4.89

26

. O-RING

93210-08001-00

$1.51

27

ELEMENT ASSY, OIL CLEANER

5GH-13440-72-00

Unavailable

28

BOLT, UNION

90401-20007-00

$13.86

29

MOUNT RUBBER

67X-44517-10-00

$101.50

30

STOPPER, LOWER MOUNT RUBBER

60E-G4574-00-94

Unavailable

31

STOPPER, UPPER MOUNT

66V-44532-00-94

$134.83

32

BOLT, WITH WASHER

90119-08858-00

$2.30

33

BOLT, WITH WASHER

90119-08829-00

$3.88

34

WASHER, PLATE

90201-099U3-00

$2.16

35

SHIM (T=0.1)

EU0-67354-A0-00

$4.51

35

SHIM (T=0.3)

EU0-67354-B0-00

$5.45

35

SHIM (T=0.5)

EU0-67354-C0-00

$4.55

35

SHIM (T=1.0)

EU0-67354-D0-00

$4.09

35

SHIM (T=2.0)

EU0-67354-E0-00

$4.09

36

BOLT

90101-06917-00

Unavailable

37

BOLT

90109-06894-00

Unavailable
