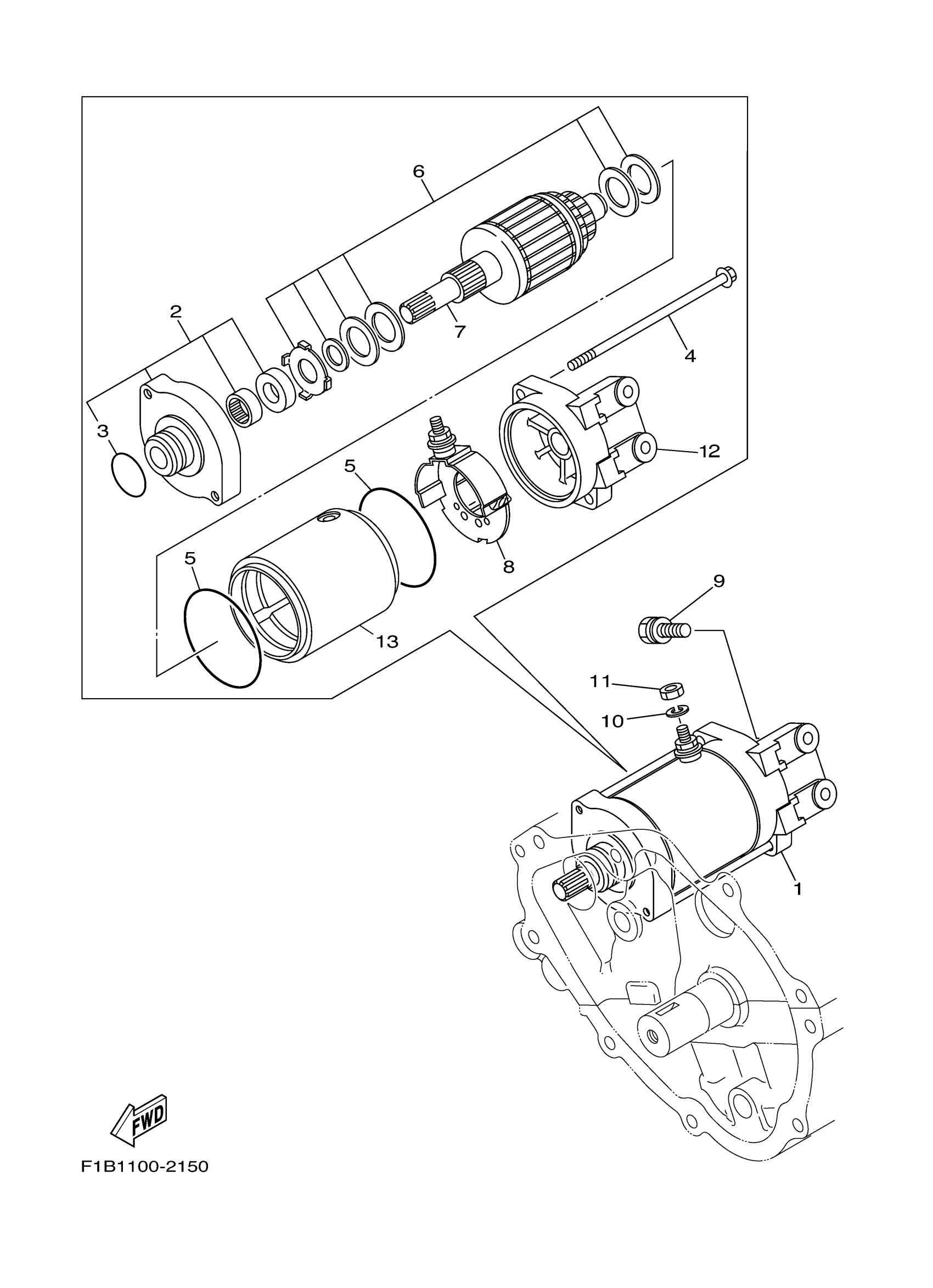

Yamaha FX1000ACB (FX140 CRUISER) F1B71 2003 STARTING MOTOR Diagram

#

Description
Price

1

STARTING MOTOR ASSY

60E-81800-00-00

$386.40

2

. FRONT BRACKET ASSY

6M6-81830-00-00

$136.35

3

O-RING (437)

93210-24235-00

$5.34

4

. BOLT

6M6-81826-00-00

$8.51

5

GASKET

35C-81844-00-00

Unavailable

6

WASHER KIT

3AJ-81809-00-00

Unavailable

7

. ARMATURE ASSY

6M6-81850-00-00

$487.86

8

. BRUSH HOLDER ASSY

6M6-81840-10-00

$122.71

9

BOLT, WITH WASHER (62X)

97513-08530-00

$2.64

10

WASHER, SPRING

92995-06100-00

$2.95

11

NUT(650)

95380-06700-00

$5.75

12

. REAR BRACKET ASSY

60E-81820-00-00

$127.26

13

. STATOR ASSY

60E-81810-00-00

$196.95
