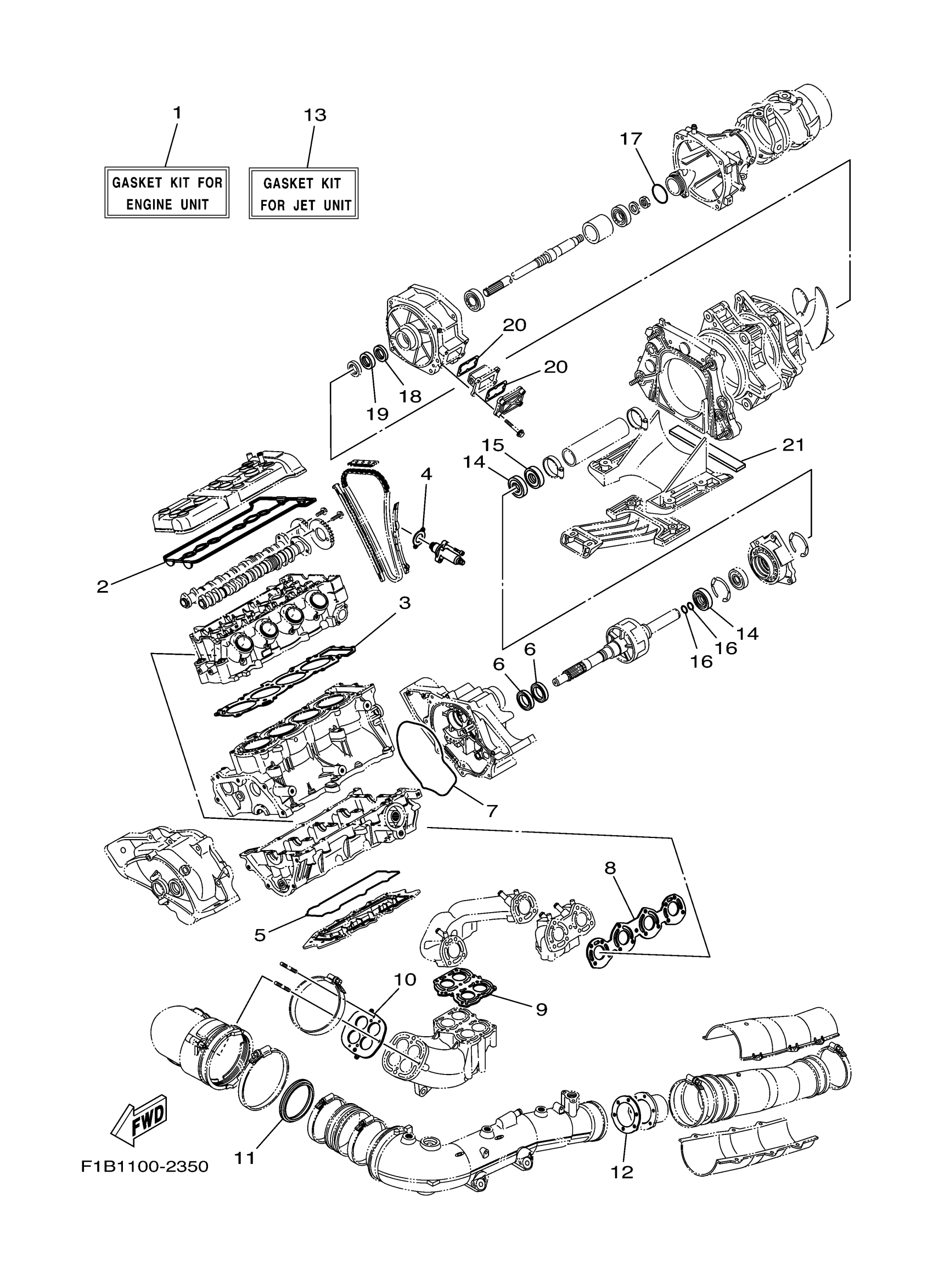

Yamaha FX1000ACB (FX140 CRUISER) F1B71 2003 REPAIR KIT 1 Diagram

#

Description
Price

1

GASKET KIT FOR ENGINE UNIT

60E-W0001-02-00

$284.83

2

GASKET, HEAD COVER 1

60E-11193-01-00

$53.70

3

GASKET, CYLINDER HEAD 1

60E-11181-01-00

$112.11

4

GASKET, TENSIONER CASE

4FM-12213-00-00

$7.05

5

GASKET

60E-13557-00-00

$27.26

6

OIL SEAL

93101-35004-00

$25.49

7

. O-RING

93211-95001-00

$18.49

8

GASKET, EXHAUST PIPE

60E-14613-01-00

$56.87

9

GASKET, MUFFLER DAMPER 1

60E-14739-02-00

$56.87

10

GASKET, MUFFLER DAMPER 2

60E-14749-02-00

$56.05

11

. SEAL, EXHAUST

60E-14642-00-00

$40.22

12

. GASKET, EXHAUST PIPE

60E-14623-00-00

$5.45

13

GASKET KIT FOR JET UNIT

60E-W0001-20-00

Unavailable

14

OIL SEAL(62T)

93101-25M55-00

$24.36

15

. OIL SEAL

93102-25009-00

$29.63

16

O-RING

93210-19001-00

$3.49

17

. O-RING

93210-46M16-00

$7.15

18

OIL SEAL

93101-28002-00

$13.40

19

OIL SEAL

93101-28M66-00

Unavailable

20

. O-RING

66V-42414-00-00

$5.18

21

FELT, PACKING

66V-R1367-00-00

Unavailable
