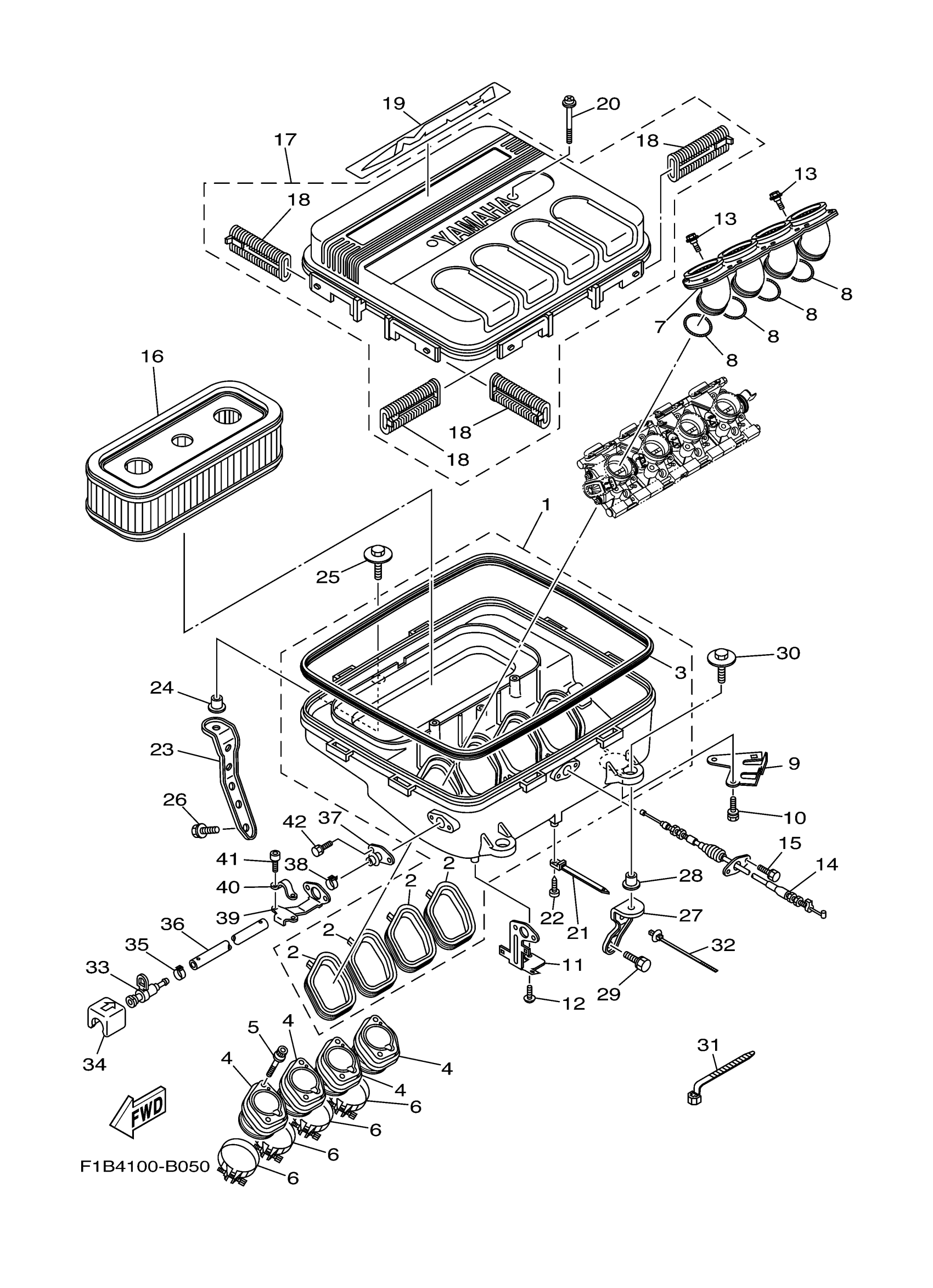

Yamaha FX1000ACB (FX140 CRUISER) F1B71 2003 INTAKE Diagram

#

Description
Price

1

AIR CLEANER ASSY.

60E-14410-02-00

$325.36

2

. SEAL

60E-14239-00-00

Unavailable

3

. SEAL

60E-14457-00-00

$23.87

4

JOINT, THROTTLE BODY 1

60E-13795-00-00

Unavailable

5

BOLT, HEXAGON SOCKET HEAD

90110-08020-00

$4.03

6

HOSE CLAMP ASSY

90450-57002-00

$17.95

7

RIBBON, SUB ASSY

60E-1440A-02-00

$937.30

8

.. SPRING

4XV-14275-00-00

Unavailable

9

BRACKET 3

60E-14869-00-00

Unavailable

10

BOLT, WITH WASHER(61B)

97513-06516-00

$1.55

11

BRACKET

60E-14867-00-00

Unavailable

12

SCREW, ROUND TAPPING

90160-05003-00

$5.31

13

BOLT

90109-06053-00

$3.79

14

CABLE, THROTTLE 1

60E-26311-00-00

$105.96

15

BOLT, WITH WASHER

90119-06078-00

$2.24

16

ELEMENT, AIR CLEANER

6B6-14451-01-00

$184.13

17

AIR CLEANER ASSY 2

60E-14420-01-00

Unavailable

18

. HOLDER

66V-13898-00-00

$8.73

19

GRAPHIC 1

60E-2339E-20-00

Unavailable

20

SCREW, WITH WASHER

90159-05006-00

Unavailable

21

CLAMP

90465-12M53-00

$4.93

22

SCREW, ROUND TAPPING

90160-05003-00

$5.31

23

STAY

60E-14413-00-00

$18.49

24

COLLAR

60E-14449-00-94

$15.07

25

BOLT, WITH WASHER

90119-08050-00

$4.55

26

BOLT, WITH WASHER

90119-08032-00

$4.03

27

STAY 2

60E-14414-00-00

$15.66

28

COLLAR

60E-14449-00-94

$15.07

29

BOLT, WITH WASHER

90119-08032-00

$4.03

30

BOLT, WITH WASHER

90119-08050-00

$4.55

31

CLAMP

90464-20005-00

$2.16

32

CLAMP

90464-28002-00

Unavailable

33

FUEL PIPE JOINT

60E-24300-01-00

$30.13

34

COVER

60E-24474-00-00

$3.58

35

HOSE CLAMP ASSY

90450-17M17-00

$7.59

36

HOSE

60E-14294-03-00

Unavailable

37

SEAL

60E-24329-00-00

$5.82

38

CLIP

90467-09120-00

Unavailable

39

STAY

60E-24364-00-00

Unavailable

40

CLAMP, FUEL PIPE 1

60E-24366-00-00

Unavailable

41

BOLT

91380-04008-00

$5.37

42

BOLT, WITH WASHER(61B)

97513-06516-00

$1.55
