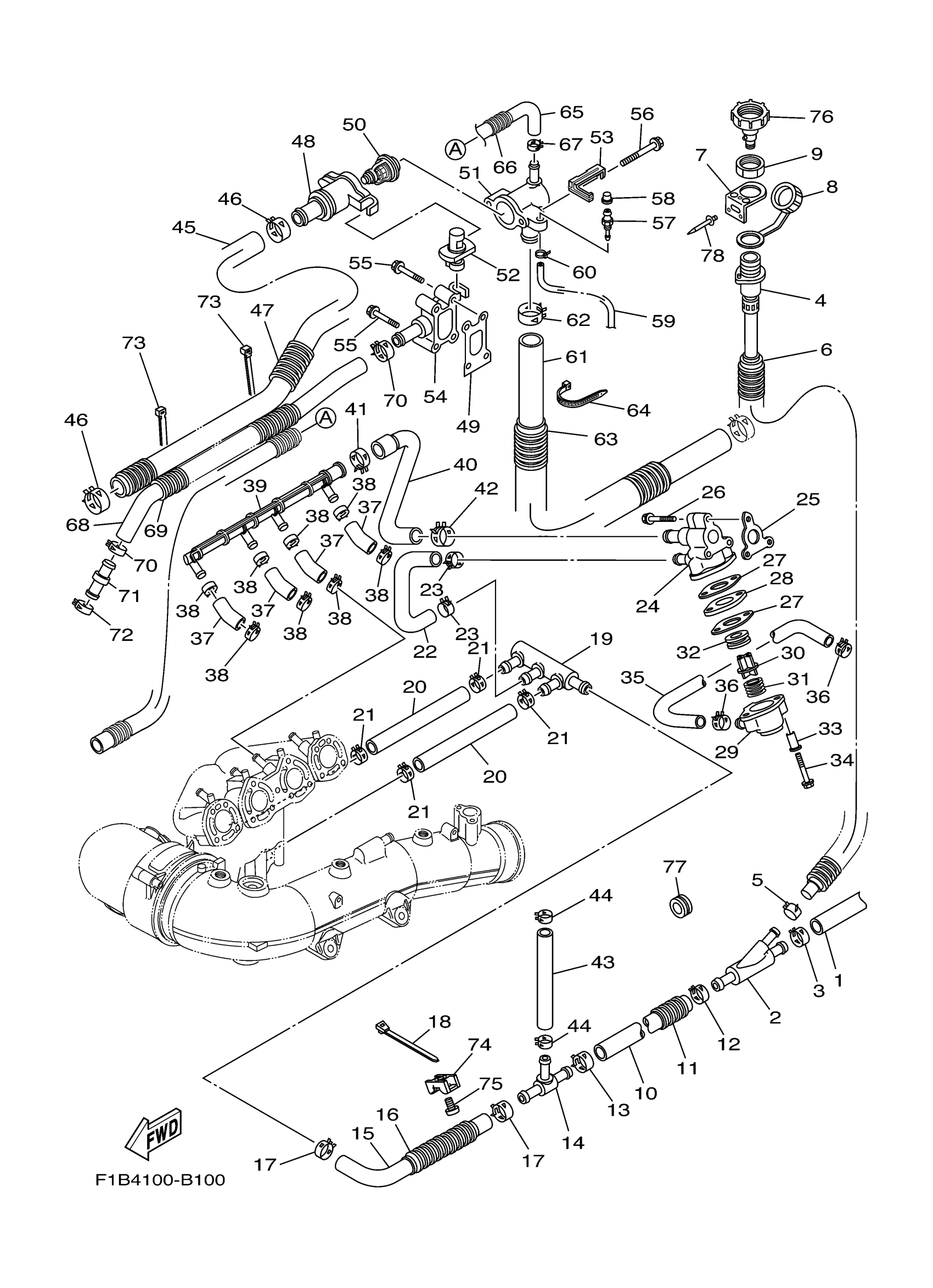

Yamaha FX1000ACB (FX140 CRUISER) F1B71 2003 EXHAUST 2 Diagram

#

Description
Price

1

HOSE 1

60E-1243A-00-00

Unavailable

2

JOINT, HOSE 1

60E-12581-00-00

$15.49

3

CLIP

90467-200A0-00

$7.40

4

JOINT ASSY

60E-12580-00-00

Unavailable

5

CLIP

90467-150A0-00

$3.33

6

HOSE

90446-24M83-00

Unavailable

7

STAY

60E-12443-00-00

$2.95

8

CAP,1

682-84385-01-00

$9.08

9

NUT

EU0-61652-00-00

$11.48

10

HOSE

90445-21003-00

Unavailable

11

HOSE, WITH SPRING (L300)

90447-22003-00

$4.55

12

CLIP

90467-200A0-00

$7.40

13

CLIP

90467-200A0-00

$7.40

14

JOINT, HOSE 3

60E-12584-00-00

$6.36

15

HOSE 2

60E-1243E-00-00

$72.71

16

HOSE, WITH SPRING (L100)

90447-22001-00

$6.21

17

CLIP

90467-200A0-00

$7.40

18

CLAMP

90464-55001-00

$5.45

19

JOINT, HOSE 2

60E-12582-00-00

Unavailable

20

HOSE (L150)

90445-18003-00

$10.99

21

CLIP

90467-160A0-00

$2.95

22

HOSE,3

6B6-1243F-00-00

$41.99

23

CLIP

90467-160A0-00

$2.95

24

JOINT

60E-12479-00-94

$153.02

25

GASKET

60E-12434-00-00

Unavailable

26

BOLT, HEXAGON W/W DEEP RECESS

97E95-06545-00

Unavailable

27

GASKET, COVER

60E-12414-00-00

$3.64

28

PLATE

60E-12535-00-00

$9.08

29

COVER, HOUSING

60E-12422-00-00

Unavailable

30

VALVE, PRESSURE CONTROL

6G5-12416-00-00

Unavailable

31

SPRING, COMPRESSION

90501-16M11-00

$5.63

32

GROMMET

90480-20M05-00

$3.26

33

COLLAR

90387-06M65-00

$8.56

34

BOLT, HEXAGON W/W DEEP RECESS

97E95-06540-00

Unavailable

35

HOSE (L350)

90445-18M13-00

Unavailable

36

CLIP

90467-160A0-00

$2.95

37

HOSE 1

60E-12576-00-00

Unavailable

38

. CLIP

90467-150A1-00

$3.33

39

JOINT 1

60E-12469-00-00

$20.37

40

HOSE 2

60E-12577-00-00

Unavailable

41

CLIP

90467-22002-00

$4.09

42

CLIP

90467-200A0-00

$7.40

43

HOSE (L130)

90445-18004-00

$5.92

44

CLIP

90467-160A0-00

$2.95

45

HOSE 3

60E-12578-00-00

Unavailable

46

CLIP

90467-240A0-00

$6.82

47

HOSE, WITH SPRING

90447-28003-00

Unavailable

48

HOUSING, THERMOSTAT

60E-12417-10-94

$99.98

49

GASKET

60E-12435-00-00

$3.64

50

THERMOSTAT

60E-12411-01-00

$116.65

51

COVER, THERMOSTAT

60E-12413-10-94

$113.62

52

JOINT

60E-12499-00-00

$16.99

53

BRACKET 1

60E-1244F-00-00

Unavailable

54

JOINT

60E-12446-00-94

$115.14

55

BOLT, FLANGE

90105-06035-00

$2.27

56

BOLT, FLANGE

90105-06035-00

$2.27

57

NIPPLE, GREASE

61L-5169A-00-00

$7.40

58

CAP, GREASE NIPPLE

663-45119-01-00

Unavailable

59

HOSE, DELIVERY

6AP-5110K-00-00

Unavailable

60

CLAMP

90465-10098-00

$1.68

61

HOSE (L900)

90445-25003-00

Unavailable

62

CLIP

90467-240A0-00

$6.82

63

TUBE (L800)

90447-28002-00

Unavailable

64

CLAMP

90465-13M18-00

$1.71

65

HOSE 8

6P6-12552-00-00

Unavailable

66

TUBE (L1150)

90447-22002-00

$22.71

67

CLIP

90467-120A0-00

$4.55

68

HOSE (L530)

90445-21004-00

$25.49

69

HOSE(63M)

90446-27M55-00

Unavailable

70

CLIP

90467-200A0-00

$7.40

71

CONNECTION

60E-51142-00-00

$3.18

72

CLIP

90467-200A0-00

$7.40

73

CLAMP

90465-14M66-00

Unavailable

74

BRACKET 1

60E-1244E-00-00

$7.27

75

SCREW, WITH WASHER(6L2)

97985-05210-00

Unavailable

76

CONDUCTION ASSY (US)

67X-E2590-00-00

$2.08

77

GROMMET

90480-38800-00

$2.73

78

RIVET, BLIND

90267-48802-00

$1.98
