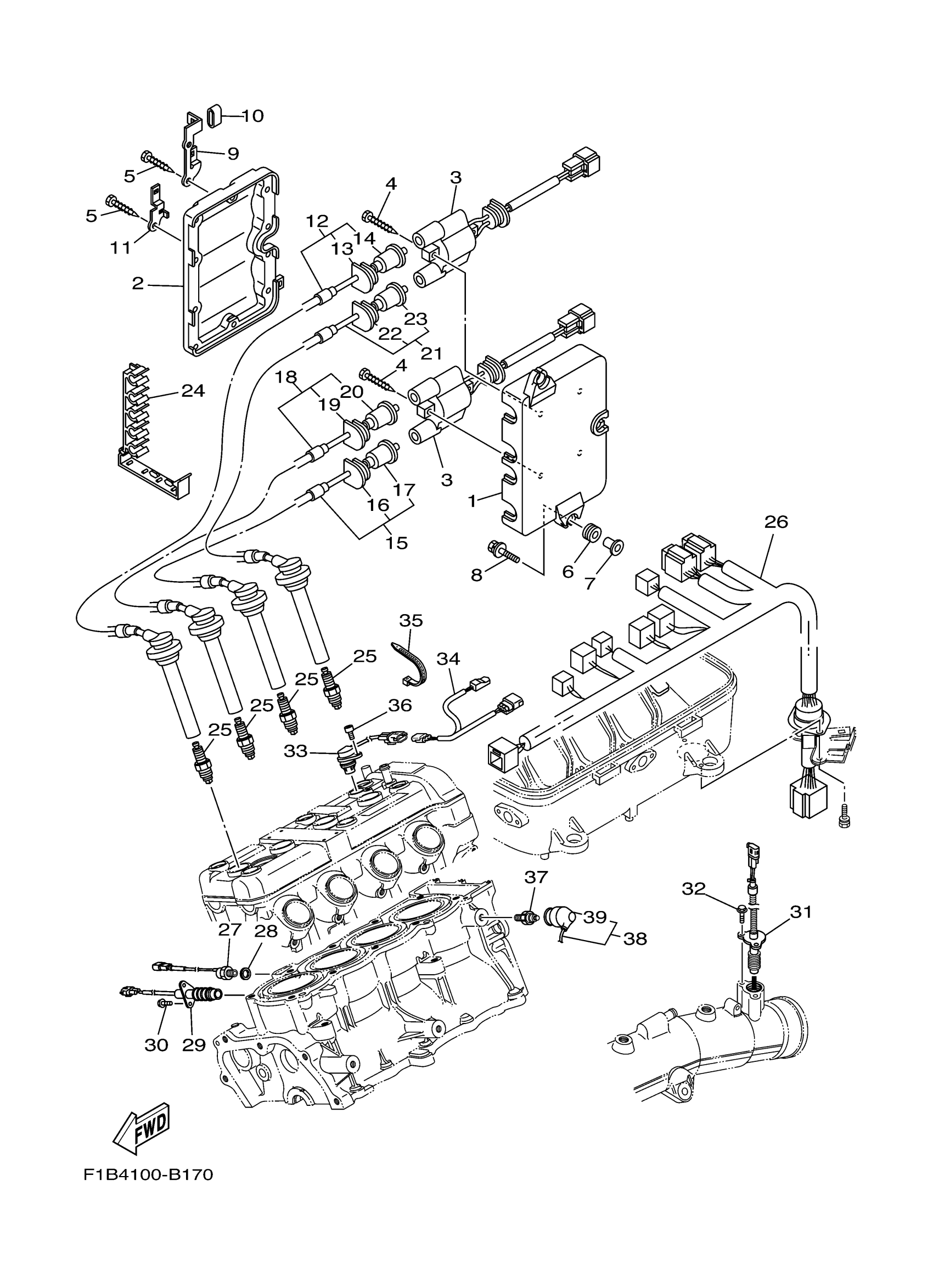

Yamaha FX1000ACB (FX140 CRUISER) F1B71 2003 ELECTRICAL 2 Diagram
#
1
CASE 1
60E-8235A-00-00
Unavailable
2
COVER, IGNITION COIL
60E-82314-00-00
Unavailable
3
IGNITION COIL ASSY
60E-82310-00-00
Unavailable
4
SCREW, TAPPING(65J)
97780-60625-00
Unavailable
5
SCREW, TAPPING
97780-60520-00
Unavailable
6
DAMPER, IGNITION C
6A0-82317-01-00
Unavailable
7
. COLLAR
90387-06119-00
Unavailable
8
BOLT, WITH WASHER
90119-06289-00
Unavailable
9
BRACKET, REFLECTOR 1
60E-85112-00-00
Unavailable
10
HOSE
60E-82353-00-00
Unavailable
11
BRACKET, REFLECTOR 2
60E-85122-00-00
Unavailable
12
CORD, HIGH TENSION 1
60E-82341-00-00
Unavailable
13
GROMMET
90480-06M43-00
Unavailable
14
GROMMET
66V-82355-00-00
Unavailable
15
CORD, HIGH TENSION 2
60E-82342-00-00
Unavailable
16
GROMMET
90480-06M43-00
Unavailable
17
GROMMET
66V-82355-00-00
Unavailable
18
CORD, HIGH TENSION 3
60E-82343-00-00
Unavailable
19
GROMMET
90480-06M43-00
Unavailable
20
GROMMET
66V-82355-00-00
Unavailable
21
CORD, HIGH TENSION 4
60E-82344-00-00
Unavailable
22
GROMMET
90480-06M43-00
Unavailable
23
GROMMET
66V-82355-00-00
Unavailable
24
CLAMP, CORD
60E-81317-00-00
Unavailable
25
PLUG, SPARK (NGK CR9EB)
NGKCR9EB-00-00
Unavailable
26
WIRE HARNESS ASSY 2
60E-8259M-10-00
Unavailable
27
THERMOSENSOR ASSY
60E-85790-02-00
Unavailable
28
WASHER, PLATE
92990-10600-00
Unavailable
29
THERMO SWITCH ASSY
60E-82560-A1-00
Unavailable
30
BOLT, HEXAGON W/W DEEP RECESS
97E95-06416-00
Unavailable
31
THERMO SWITCH ASSY
60E-82560-01-00
Unavailable
32
BOLT, HEXAGON W/W DEEP RECESS
97E95-06416-00
Unavailable
33
SENSOR, CAM POSITION
60E-85896-02-00
Unavailable
34
CONDENSER 1
60E-81325-10-00
Unavailable
35
CLAMP (6E5)
90465-13M11-00
Unavailable
36
BOLT,SOCKET
91380-06016-00
Unavailable
37
OIL PRESSURE SWITCH ASSY
68V-82504-00-00
Unavailable
38
LEAD WIRE ASSY
60E-81315-01-00
Unavailable
39
CAP
60E-82532-01-00
Unavailable
