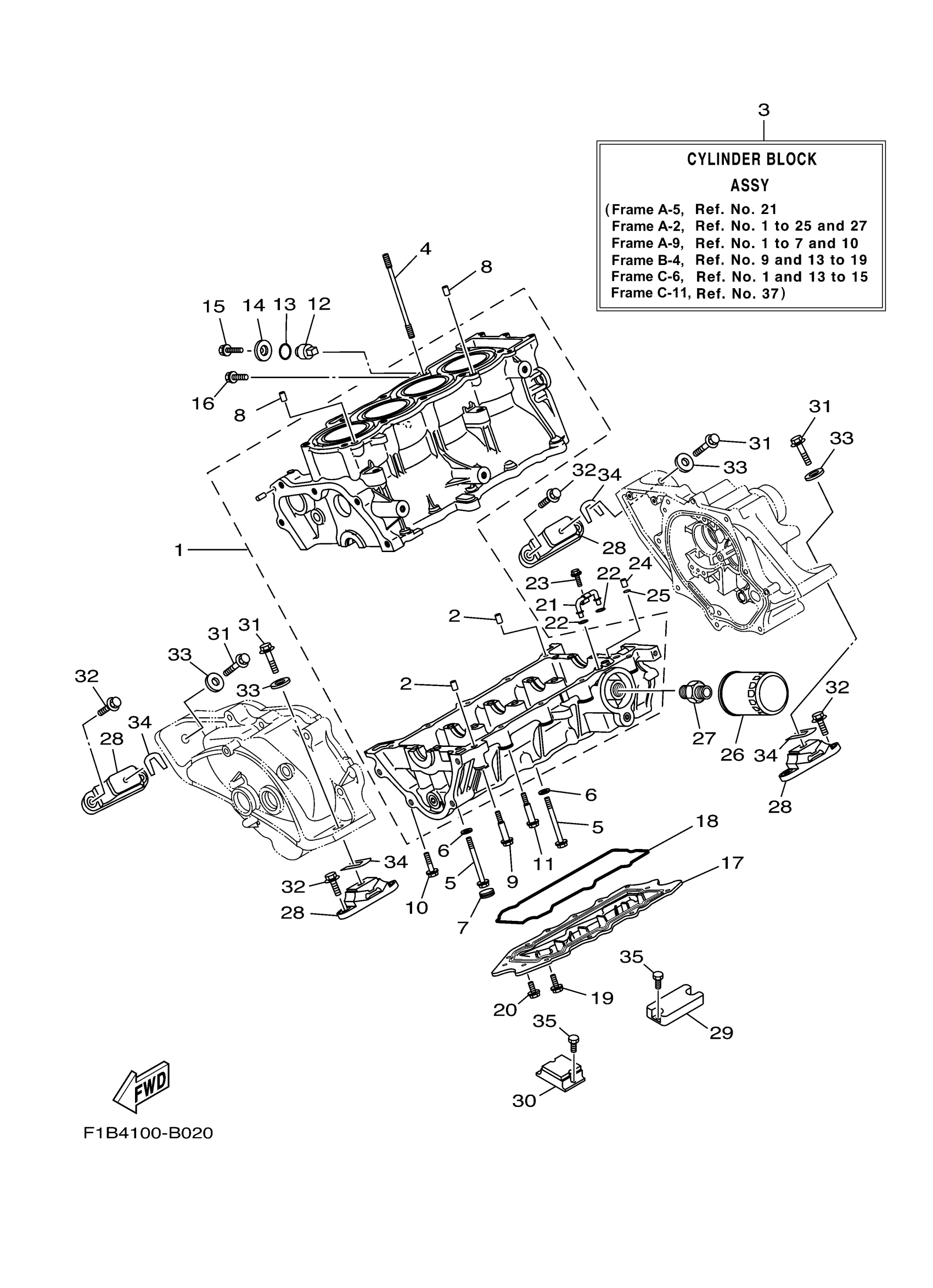

Yamaha FX1000ACB (FX140 CRUISER) F1B71 2003 CRANKCASE Diagram
#
1
CRANKCASE ASSY
60E-15100-01-8P
Unavailable
2
PIN, DOWEL(3VD)
99530-10114-00
$2.55
3
CYLINDER BLOCK ASSY
60E-W009B-01-8P
Unavailable
4
BOLT, STUD
90116-10619-00
$11.49
5
BOLT, WASHER BASED
90105-093A5-00
$11.49
6
WASHER, PLATE(1AA)
90201-096J9-00
$4.41
7
GROMMET, ANODE
60E-11328-00-00
Unavailable
8
PIN, DOWEL(3VD)
99530-10114-00
$2.55
9
BOLT
90109-06051-00
Unavailable
10
BOLT, FLANGE(3JP)
95814-06070-00
$8.49
11
BOLT, FLANGE
90105-06M17-00
Unavailable
12
ANODE
67F-11325-00-00
Unavailable
13
GROMMET, ANODE
67F-11328-01-00
Unavailable
14
ANODE COVER ASSY
69J-11301-11-00
$16.99
15
BOLT, HEXAGON W/W DEEP RECESS
97E95-06520-00
Unavailable
16
BOLT, HEXAGON W/W DEEP RECESS
97E95-08540-00
Unavailable
17
PAN, OIL
60E-1310A-00-00
Unavailable
18
GASKET
60E-13557-00-00
Unavailable
19
BOLT, WITH WASHER(61B)
97513-06520-00
Unavailable
20
BOLT, WITH WASHER(61B)
97513-06525-00
Unavailable
21
PIPE, DELIVERY 1
60E-13161-00-00
Unavailable
22
O-RING(26H)
93210-06667-00
Unavailable
23
BOLT, FLANGE(4MY)
95027-06010-00
Unavailable
24
PIN, DOWEL
99530-08012-00
Unavailable
25
. O-RING
93210-08001-00
Unavailable
26
ELEMENT ASSY, OIL CLEANER
5GH-13440-72-00
Unavailable
27
BOLT, UNION
90401-20007-00
Unavailable
28
MOUNT RUBBER
67X-44517-10-00
Unavailable
29
STOPPER LWR MOUNT RUBBER
60E-44574-00-94
Unavailable
30
STOPPER, UPPER MOUNT
66V-44532-00-94
Unavailable
31
BOLT, WITH WASHER
90119-08858-00
Unavailable
32
BOLT, WITH WASHER
90119-08829-00
Unavailable
33
WASHER, PLATE
90201-099U3-00
Unavailable
34
SHIM (T=0.1)
EU0-67354-A0-00
Unavailable
34
SHIM (T=0.3)
EU0-67354-B0-00
Unavailable
34
SHIM (T=0.5)
EU0-67354-C0-00
Unavailable
34
SHIM (T=1.0)
EU0-67354-D0-00
Unavailable
34
SHIM (T=2.0)
EU0-67354-E0-00
Unavailable
35
BOLT
90101-06917-00
Unavailable
