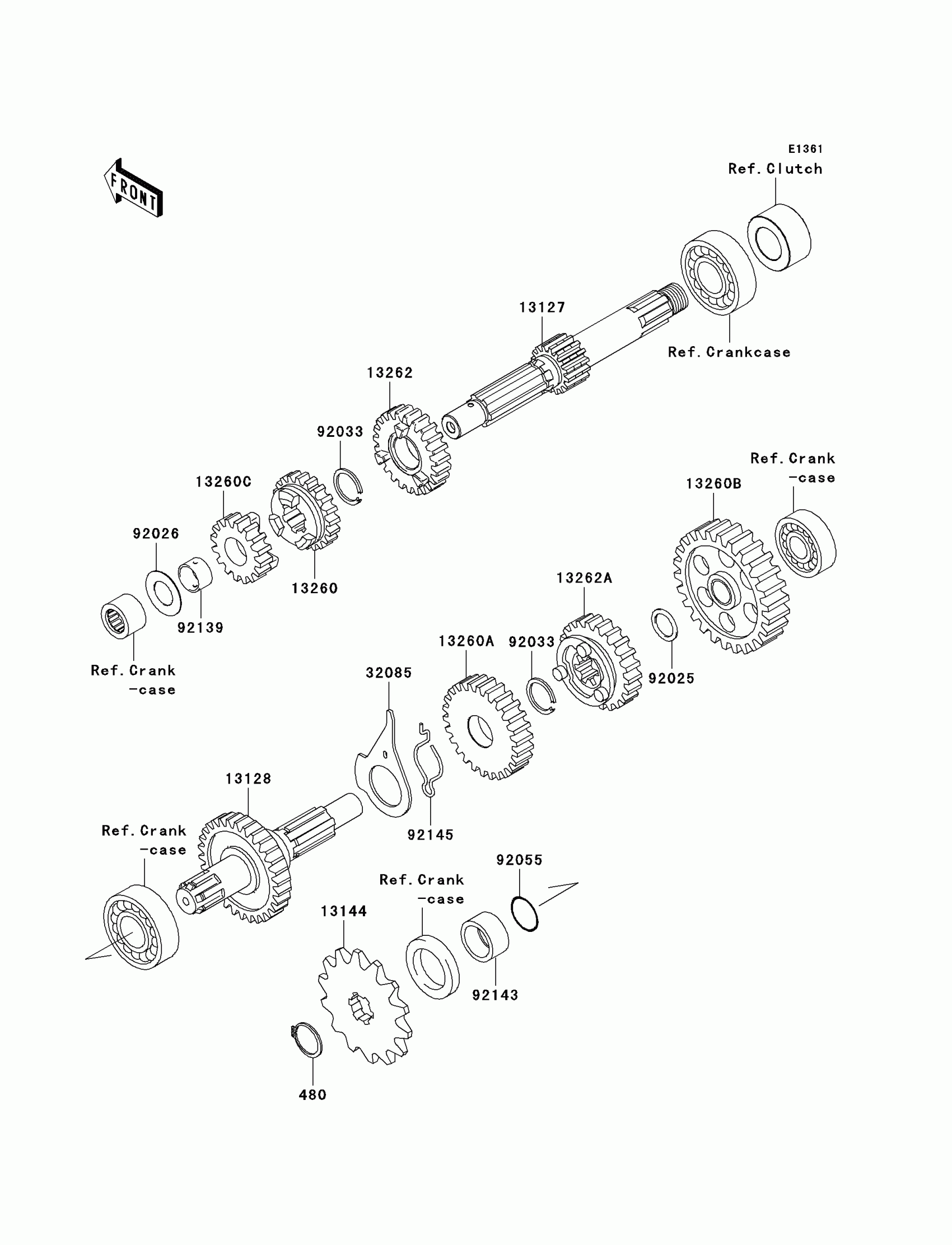

Kawasaki Fury 125R Transmission Diagram

Description

Price

480

CIRCLIP-TYPE-C,17MM

480J1700

$0.65

13127

SHAFT-TRANSMISSION INPUT,12T

13127-1280

$129.02

13128

SHAFT-TRANSMISSION OUTPUT

13128-0042

$128.21

13144

SPROCKET-OUTPUT,14T

13144-1323

$21.93

13260

GEAR,INPUT 3RD,20T

13260-1839

$53.12

13260A

GEAR,OUTPUT 3RD,27T

13260-1860

Unavailable

13260B

GEAR,OUTPUT LOW,36T

13260-1862

$77.55

13260C

GEAR,INPUT 2ND,16T

13260-1986

$30.75

13262

GEAR,INPUT 4TH,23T

13262-0666

$67.59

13262A

GEAR,OUTPUT 4TH,25T

13262-0667

$67.59

32085

STOPPER

32085-1515

$4.43

92025

SHIM

92025-1280

$3.29

92026

SPACER

92026-1091

$4.31

92033

RING-SNAP,17MM

92033-1060

$4.26

92055

RING-O,16.8MM

92055-1235

$5.52

92139

BUSHING

92139-1102

$12.80

92143

COLLAR,SPROCKET

92143-1680

$12.92

92145

SPRING

92145-1381

$10.39
