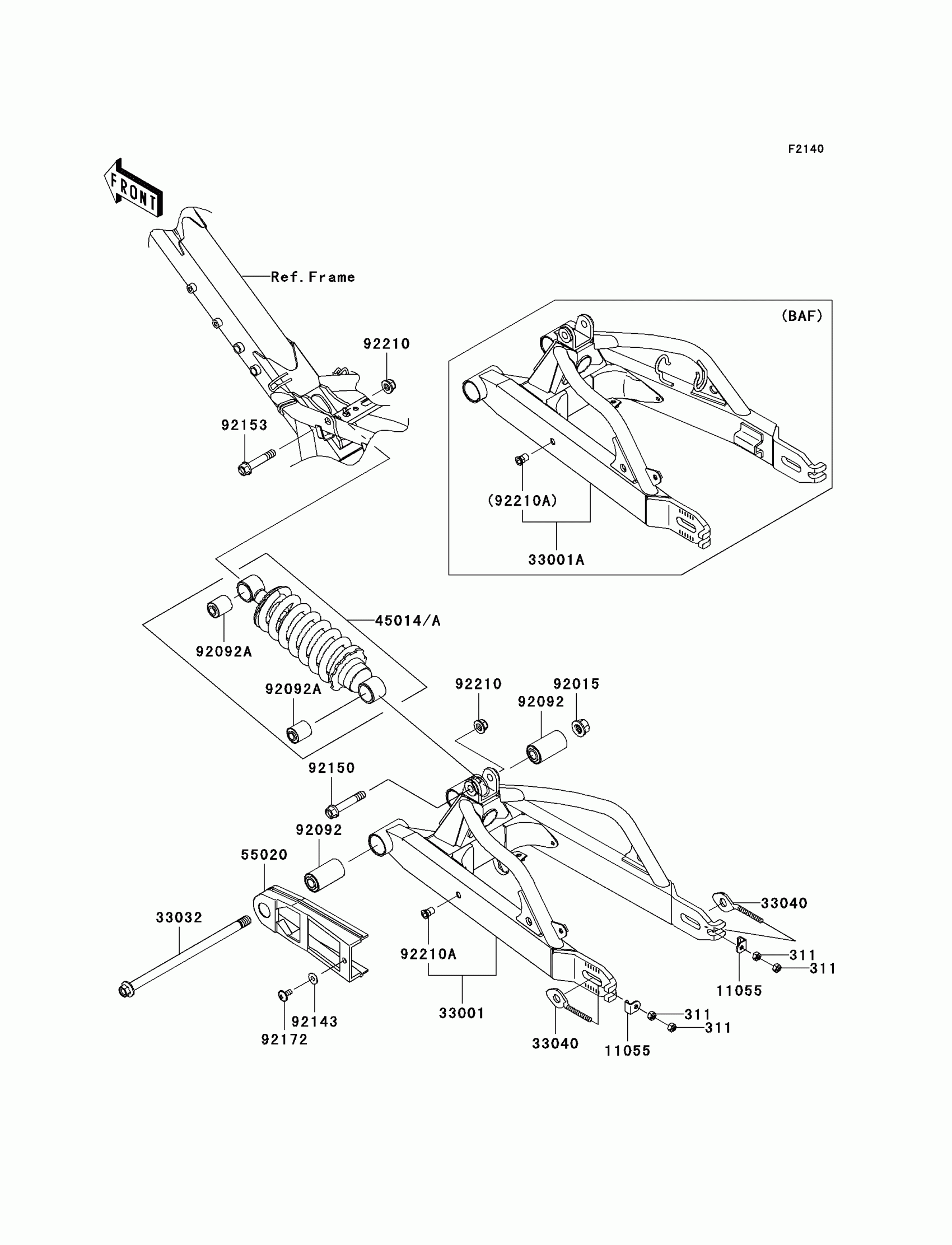

Find the part on the Swingarm/shock Absorber diagram for your 2010 Kawasaki Fury 125R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2010 Kawasaki Fury 125R Swingarm/shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

311

NUT-HEX,6MM

311AA0600

1
Out of stock

11055

BRACKET

11055-1502

1

$1.73

In stock

33001

ARM-COMP-SWING,P.SILVER

33001-0185-458

1
Out of stock

33032

SHAFT-SWING ARM

33032-0028

1
Out of stock

33040

ADJUSTER-CHAIN

33040-1006

1
Out of stock

45014A

SHOCKABSORBER,E.RED

45014-0313-20V

1
Out of stock

55020

GUARD,CHAIN

55020-0492

1

$9.46

In stock

92015

NUT,12MM

92015-1426

1
Out of stock

92092

BUSHING-RUBBER

92092-0015

1
Out of stock

92092A

BUSHING-RUBBER

92092-1079

1
Out of stock

92143

COLLAR

92143-1087

1
Out of stock

92150

BOLT,FLANGED,10X57

92150-1227

1
Out of stock

92153

BOLT,FLANGED,10X52

92153-1864

1
Out of stock

92172

SCREW,6X14

92172-0055

1
Out of stock

92210

NUT,LOCK,FLANGED,10MM

92210-0276

1
Out of stock

92210A

NUT,POP,6MM,L=15

92210-1397

1
Out of stock
