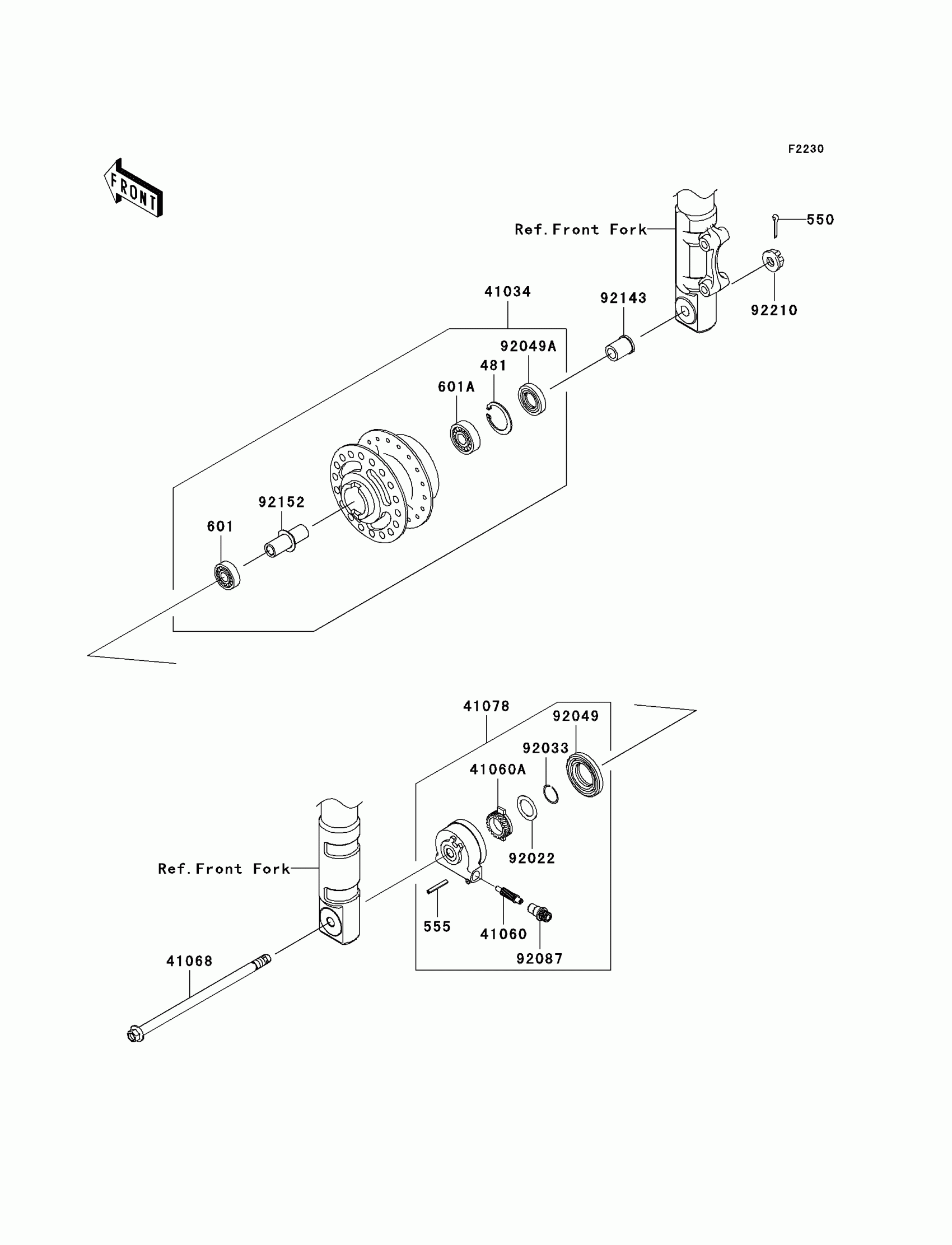

Kawasaki Fury 125R Front Hub(AAF) Diagram

Description

Price

481

CIRCLIP-TYPE-C,35MM

481J3500

$1.42

550

PIN-COTTER,2.5X20

550AA2520

$1.05

555

PIN-SPRING

555A0214

$0.78

601

BEARING-BALL,#6200UG

601B6200UG

Unavailable

601A

BEARING-BALL

601B6300UG

$12.42

41034

DRUM-ASSY,FRONT BRAKE

41034-0025

$227.06

41060

GEAR-METER SCREW,10T

41060-0001

$20.42

41060A

GEAR-METER SCREW,25T

41060-0002

$20.42

41068

AXLE,FR

41068-1445

$7.42

41078

CASE-ASSY-METER GEAR

41078-0001

$88.39

92022

WASHER,20X29X1.0

92022-1510

$4.08

92033

RING-SNAP,19MM

92033-1160

$3.98

92049

SEAL-OIL,SD 42X50X6

92049-0042

$16.66

92049A

SEAL-OIL,DD20X35X7

92049-0052

$16.19

92087

BUSHING-METER GEAR

92087-0002

$19.85

92143

COLLAR,FR AXLE,L=24.5

92143-1847

$13.22

92152

COLLAR,FRONT BRAKE DRUM,L=51

92152-0119

$13.03

92210

NUT,CASTLE,10MM

92210-1383

$5.76
