2010 Kawasaki Fury 125R Side Covers/chain Cover Diagram

← All diagrams

Find the part on the Side Covers/chain Cover diagram for your 2010 Kawasaki Fury 125R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

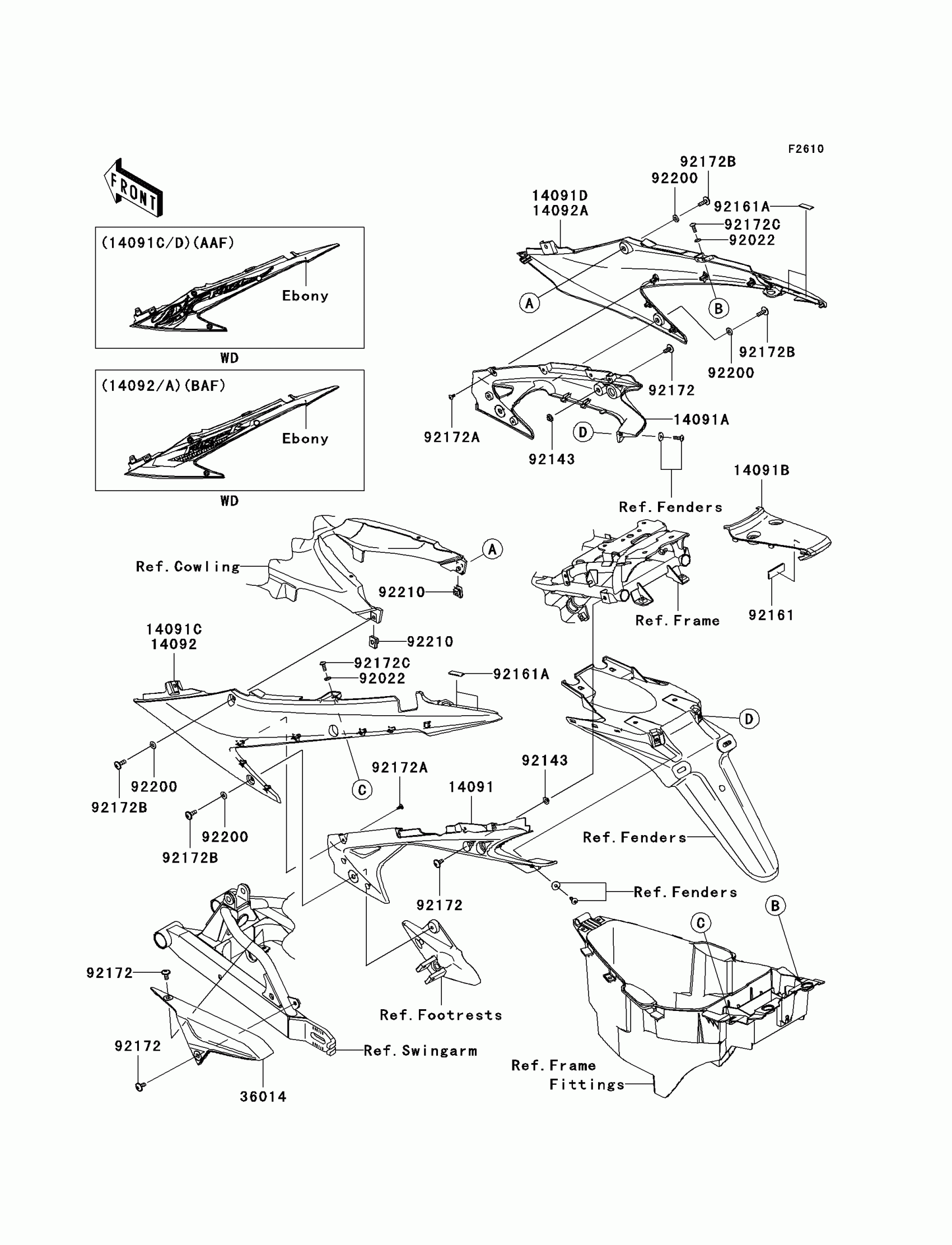

2010 Kawasaki Fury 125R Side Covers/chain Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14091

COVER,TAIL,LH,LWR

14091-0774

1

$12.78

In stock

14091A

COVER,TAIL,RH,LWR

14091-0775

1

$12.78

In stock

14091B

COVER,TAIL,CNT,EBONY

14091-1718-QE

1

$15.71

In stock

14092

COVER,TAIL,LH,UPP,EBONY

14092-5111-QE

1

$69.41

In stock

14092A

COVER,TAIL,RH,UPP,EBONY

14092-5112-QE

1

$69.41

In stock

36014

CASE-CHAIN

36014-0039

1

$8.41

In stock

92022

1

$3.12

In stock

92143

COLLAR

92143-1331

1

$3.14

In stock

92161

DAMPER

92161-0301

1

$1.81

In stock

92161A

DAMPER,COVER UPP

92161-0654

1

$1.20

In stock

92172

SCREW,6X14

92172-0055

1

$0.44

In stock

92172A

SCREW,TAPPING,4X10

92172-0172

1

$3.71

In stock

92172B

SCREW,6X18

92172-0192

1

$10.83

In stock

92172C

SCREW,5X14

92172-0461

1

$0.85

In stock

92200

WASHER,6.5X14X1

92200-1388

1
Out of stock

92210

NUT,6MM

92210-0218

1
Out of stock
