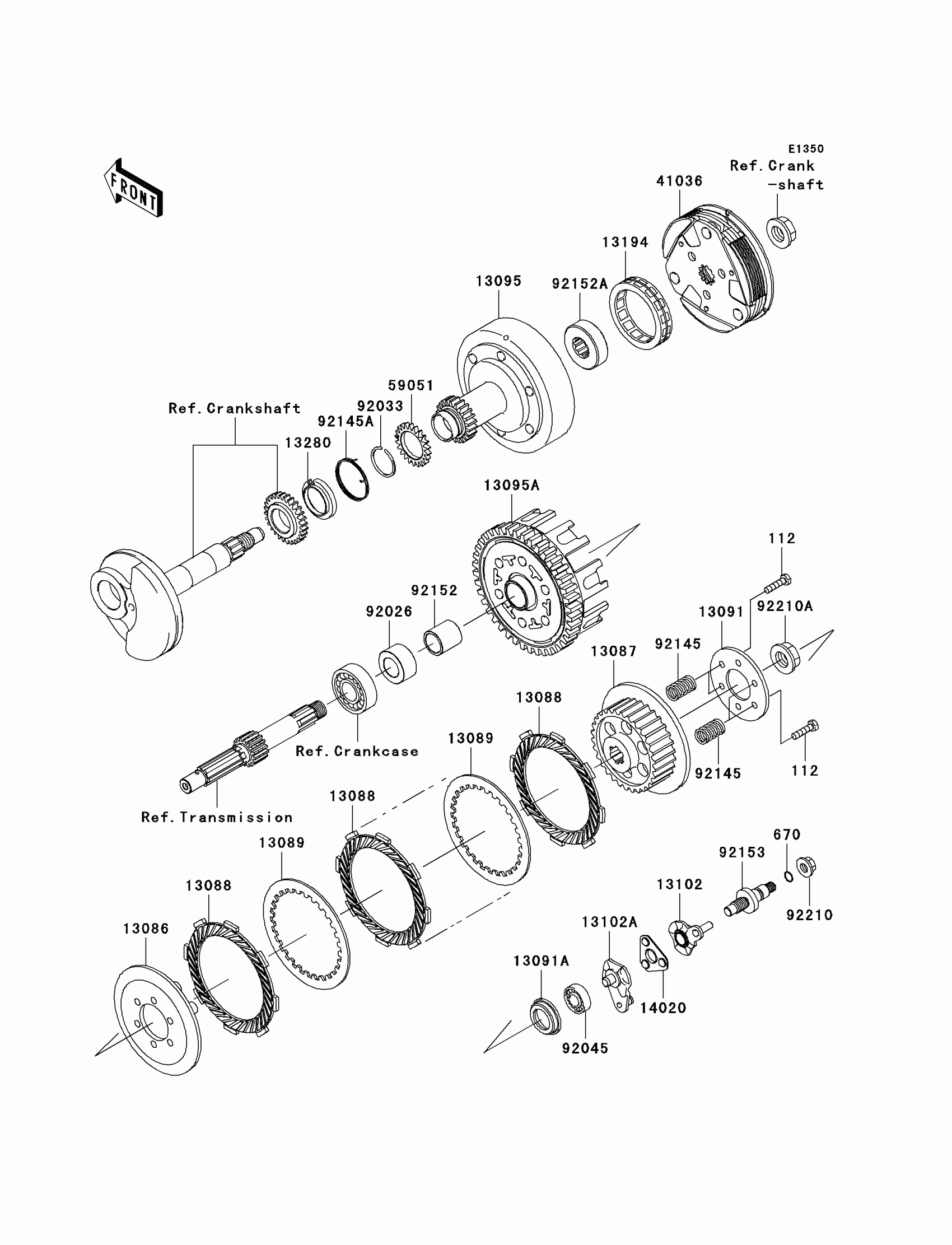

Kawasaki Fury 125R Clutch Diagram

#

Description
Price

112

BOLT-UPSET,5X20

112BA0520

$4.18

670

O RING,8MM

670B1508

$1.00

13086

WHEEL-CLUTCH

13086-1065

$26.05

13087

HUB-CLUTCH

13087-1151

$41.45

13088

PLATE-FRICTION

13088-1142

$9.53

13089

PLATE-CLUTCH

13089-1087

$9.73

13091

HOLDER,CLUTCH

13091-1782

$7.76

13091A

HOLDER

13091-1787

$9.82

13095

HOUSING-COMP-CLUTCH

13095-0094

$83.00

13095A

HOUSING-COMP-CLUTCH

13095-1403

$97.35

13102

RELEASE-COMP-CLUTCH

13102-1135

$56.07

13102A

RELEASE-COMP-CLUTCH

13102-1136

$48.51

13194

CLUTCH-ONEWAY

13194-1103

Unavailable

13280

HOLDER,CLUTCH

13280-1250

$0.86

14020

RETAINER

14020-1100

$13.29

41036

HUB-ASSY,CLUTCH

41036-1364

$131.43

59051

GEAR-SPUR,CLUTCH,22T

59051-1403

$5.24

92026

SPACER

92026-1605

$3.76

92033

RING-SNAP,23.5MM

92033-1065

$3.81

92045

BEARING-BALL,#628

92045-1123

$18.83

92145

SPRING,CLUTCH HUB

92145-1456

$1.16

92145A

SPRING,CLUTCH HOLDER

92145-1457

$0.95

92152

COLLAR,17X22X22.7

92152-0393

$15.93

92152A

COLLAR,19X39.9X13

92152-1370

$8.70

92153

BOLT,CLUTCH RELEASE

92153-0525

$7.84

92210

NUT,FLANGED,8MM

92210-0004

$4.07

92210A

NUT,14MM

92210-1374

$7.39
