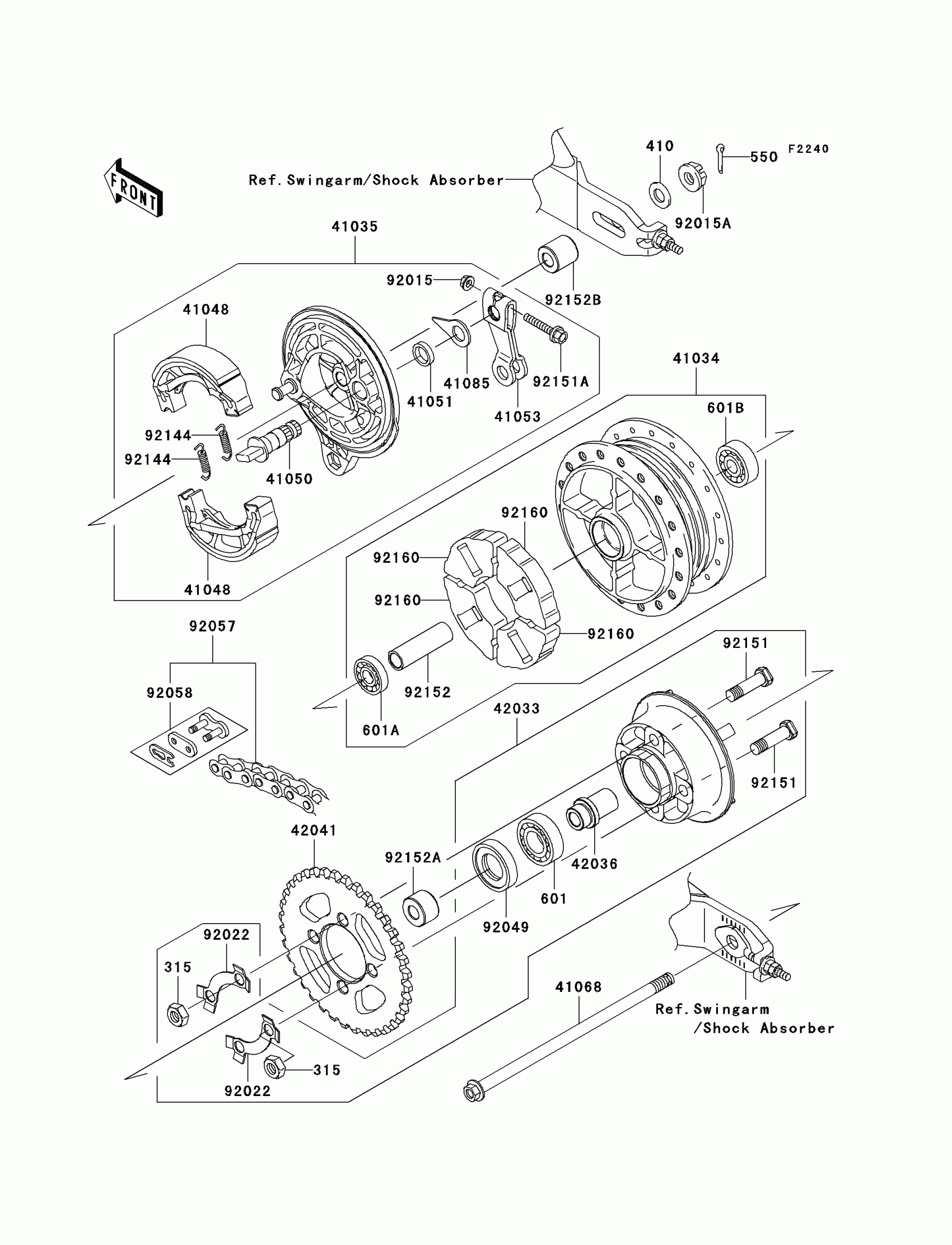

Kawasaki Fury 125R Rear Hub(AAF) Diagram
#
Description
Price
315
NUT-HEX-FINE,10MM
315AA1000
$0.59
410
WASHER-PLAIN-SMALL,12MM
410AA1200
$0.72
550
PIN-COTTER,3.0X25
550AA3025
$0.62
601
BEARING-BALL,#6004UG
601B6004UG
$37.11
601A
BEARING-BALL,#6201UG
601B6201UG
$19.40
601B
BEARING-BALL,#6301UG
601B6301UG
$29.43
41034
DRUM-ASSY,REAR BRAKE
41034-0067
$222.40
41035
PANEL-ASSY-BRAKE,RR
41035-0054
$119.81
41048
SHOE-BRAKE
41048-0003
$14.69
41050
CAM-BRAKE
41050-1098
$8.74
41051
SEAL,BRAKE CAM
41051-001
$4.26
41053
LEVER-BRAKE CAM
41053-0015
$10.64
41068
AXLE,RR
41068-0078
$25.63
41085
INDICATOR
41085-1079
$0.84
42033
COUPLING-ASSY,RR HUB
42033-0012
$97.97
42036
SLEEVE,RR HUB COUPLING,L=41
42036-0017
$66.37
42041
SPROCKET-HUB,36T
42041-0068
Unavailable
92015
NUT,FLANGED,6MM
92015-1367
$3.69
92015A
NUT,CASTLE,12MM
92015-1870
$6.36
92022
WASHER,LOCK
92022-1705
$7.68
92049
SEAL-OIL,SC26X42X8
92049-1490
$3.29
92057
CHAIN,DRIVE,RK420SBX104L
92057-0162
$44.44
92058
JOINT-CHAIN,DRIVE
92058-0020
$6.76
92144
SPRING,BRAKE SHOE
92144-1907
$4.61
92151
BOLT,RR HUB COUPLING,10X36
92151-1160
$2.98
92151A
BOLT,FLANGED,6X34
92151-1209
$3.71
92152
COLLAR,RR BRAKE DRUM,L=58
92152-0354
$12.67
92152A
COLLAR,RR AXLE,LH,L=17
92152-0452
$17.24
92152B
COLLAR,RR AXLE,L=24
92152-0565
$10.76
92160
DAMPER,SHOCK,RR HUB
92160-1627
$11.91
