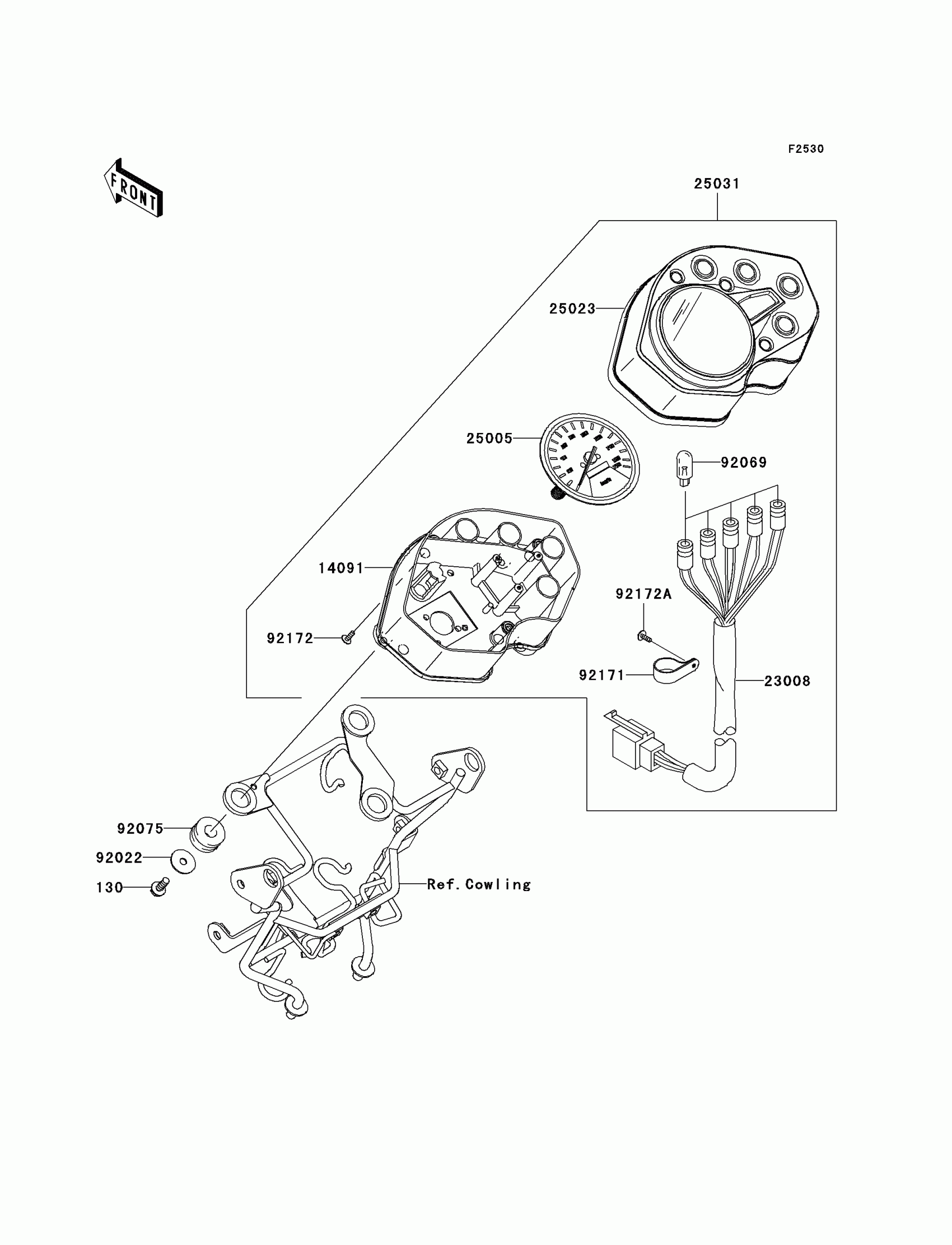

Kawasaki Fury 125R Meter(s) Diagram

Description

Price

130

BOLT-FLANGED,5X14

130BA0514

$2.06

14091

COVER,METER,LWR

14091-0805

$38.24

23008

SOCKET-ASSY,METER

23008-0078

$36.18

25005

SPEEDOMETER,KPH

25005-0044

$82.99

25023

COVER-METER CASE,UPP

25023-0032

$65.29

25031

METER-ASSY,KPH

25031-0182

$201.86

92022

WASHER,5.5X20X1.2

92022-104

$4.31

92069

BULB,12V 3.4W,T10

92069-1007

$5.00

92075

DAMPER,10X24X12

92075-1690

$5.00

92171

CLAMP

92171-1602

$1.19

92172

SCREW

92172-0386

$1.25

92172A

SCREW

92172-0387

$3.94
