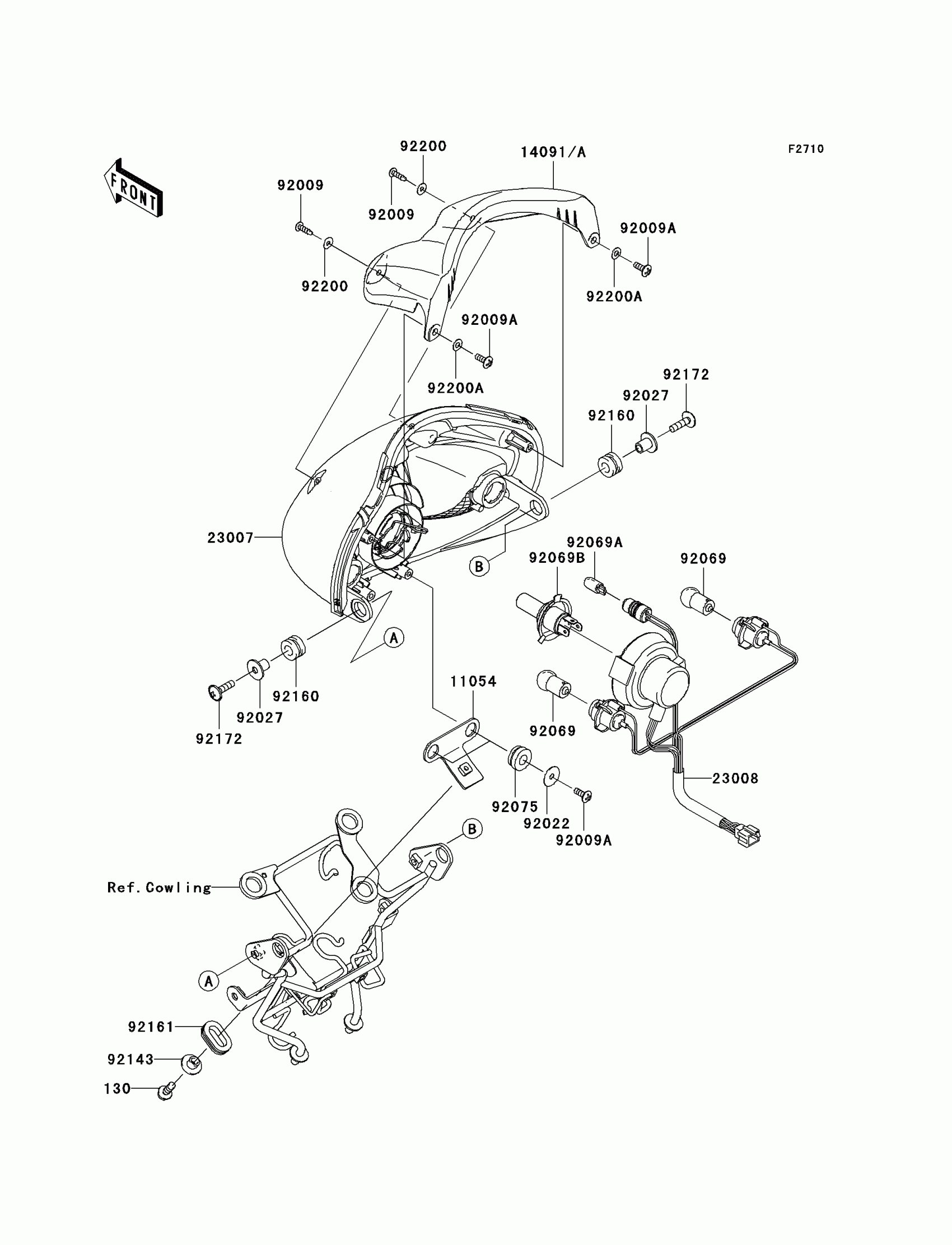

Kawasaki Fury 125R Headlight(s) Diagram

Description

Price

130

BOLT-FLANGED,6X18

130BB0618

$1.81

11054

BRACKET,HEAD LAMP

11054-1690

$5.29

14091A

COVER,HEAD LAMP,L.GREEN

14091-1719-777

$19.85

23007

LENS-COMP,HEAD LAMP

23007-0116

$156.59

23008

SOCKET-ASSY,HEAD LAMP

23008-0106

$27.66

92009

SCREW,4X16,BLACK

92009-1158

$3.65

92009A

SCREW,TAPPING,5X14

92009-1197

$3.92

92022

WASHER,5.5X20X1.2

92022-1405

$4.31

92027

COLLAR,L=14.1

92027-1920

$6.57

92069

BULB,12V 10W

92069-0003

$2.63

92069A

BULB,12V 5W

92069-1016

$6.52

92069B

BULB,12V 35/35W

92069-1120

$34.96

92075

DAMPER

92075-277

$2.84

92143

COLLAR

92143-1833

$0.67

92160

DAMPER,10X20X12

92160-1167

$4.69

92161

DAMPER

92161-0522

$1.19

92172

SCREW,6X22

92172-0373

$1.71

92200

WASHER,4.2X11.5X0.5

92200-0412

$1.82

92200A

WASHER,NYLON,5.3X11.5X0.5

92200-1480

$1.59
