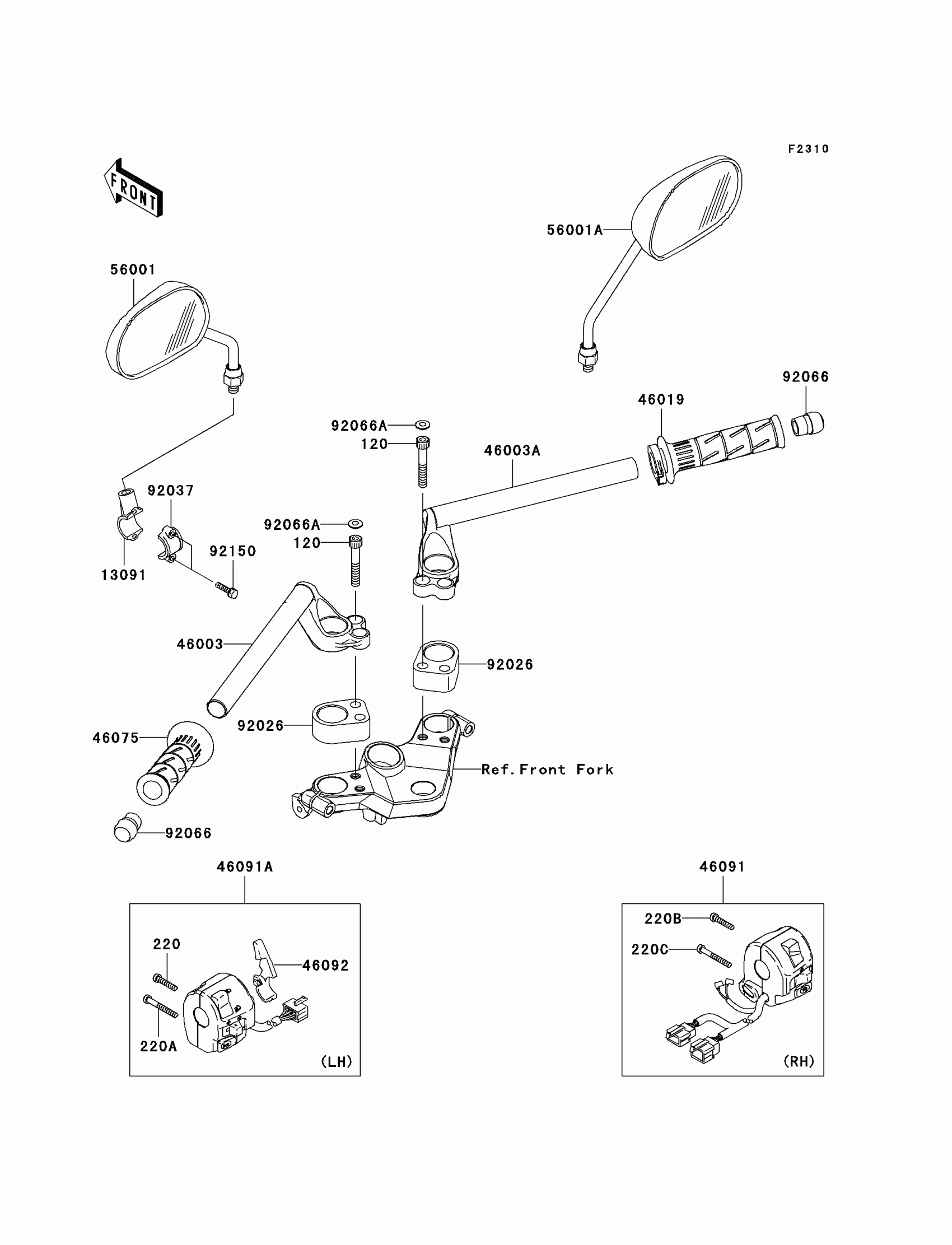

Kawasaki Fury 125R Handlebar Diagram

#

Description
Price

120

BOLT-SOCKET,8X50

120CA0850

$5.25

220

SCREW-PAN-CROS,5X22

220AB0522

$1.11

220A

SCREW-PAN-CROS,5X40

220AB0540

$2.06

220B

SCREW-PAN-CROS,5X22

220C0522

$1.11

220C

SCREW-PAN-CROS,5X40

220C0540

$1.92

13091

HOLDER,MIRROR

13091-1718

$41.28

46003

HANDLE,LH,F.S.BLACK

46003-0129-18R

$91.60

46003A

HANDLE,RH,F.S.BLACK

46003-0130-18R

$91.60

46019

GRIP-ASSY,THROTTLE

46019-0003

$10.63

46075

GRIP,LH

46075-0007

$7.40

46091

HOUSING-ASSY-CONTROL,RH

46091-0155

$122.33

46091A

HOUSING-ASSY-CONTROL,LH

46091-0198

$117.89

46092

LEVER-GRIP,CHOKE LEVER

46092-0033

$4.10

56001

MIRROR-ASSY,LH

56001-0119

$29.24

56001A

MIRROR-ASSY,RH

56001-0120

$29.24

92026

SPACER,HANDLE,F.BLACK

92026-0122-21

$32.03

92037

CLAMP,LEVER HOLDER

92037-1621

$27.29

92066

PLUG

92066-0122

$1.93

92066A

PLUG

92066-1216

$4.65

92150

BOLT,5X20

92150-1389

$4.69
