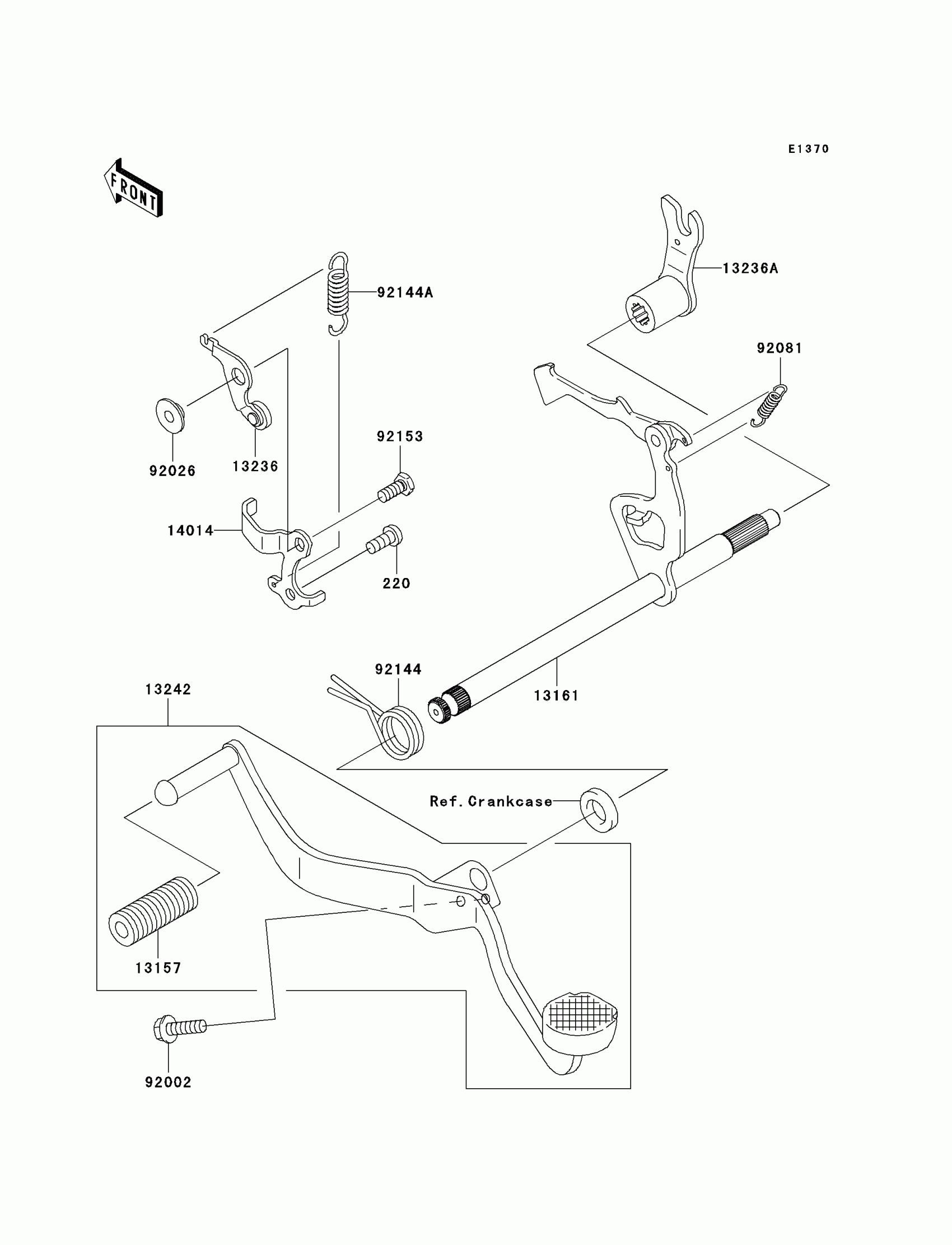

Kawasaki Fury 125R Gear Change Mechanism Diagram

Description

Price

220

SCREW-PAN-CROSS,6X14

220AA0614

$1.48

13157

DAMPER,CHANGE PEDAL

13157-004

Unavailable

13161

LEVER-COMP-CHANGE SHAFT

13161-0003

Unavailable

13236

LEVER-COMP,POSITION

13236-1256

$9.21

13236A

LEVER-COMP

13236-1288

$8.55

13242

LEVER-ASSY-CHANGE,PEDAL

13242-0047

$53.03

14014

PLATE-POSITION

14014-1118

Unavailable

92002

BOLT,6X20

92002-1237

$4.31

92026

SPACER

92026-1217

$5.52

92081

SPRING,CHANGE LEVER

92081-076

$5.46

92144

SPRING,CHANGE SHAFT RETURN

92144-1107

$8.79

92144A

SPRING

92144-1590

$4.82

92153

BOLT,6X14

92153-0571

$1.08
