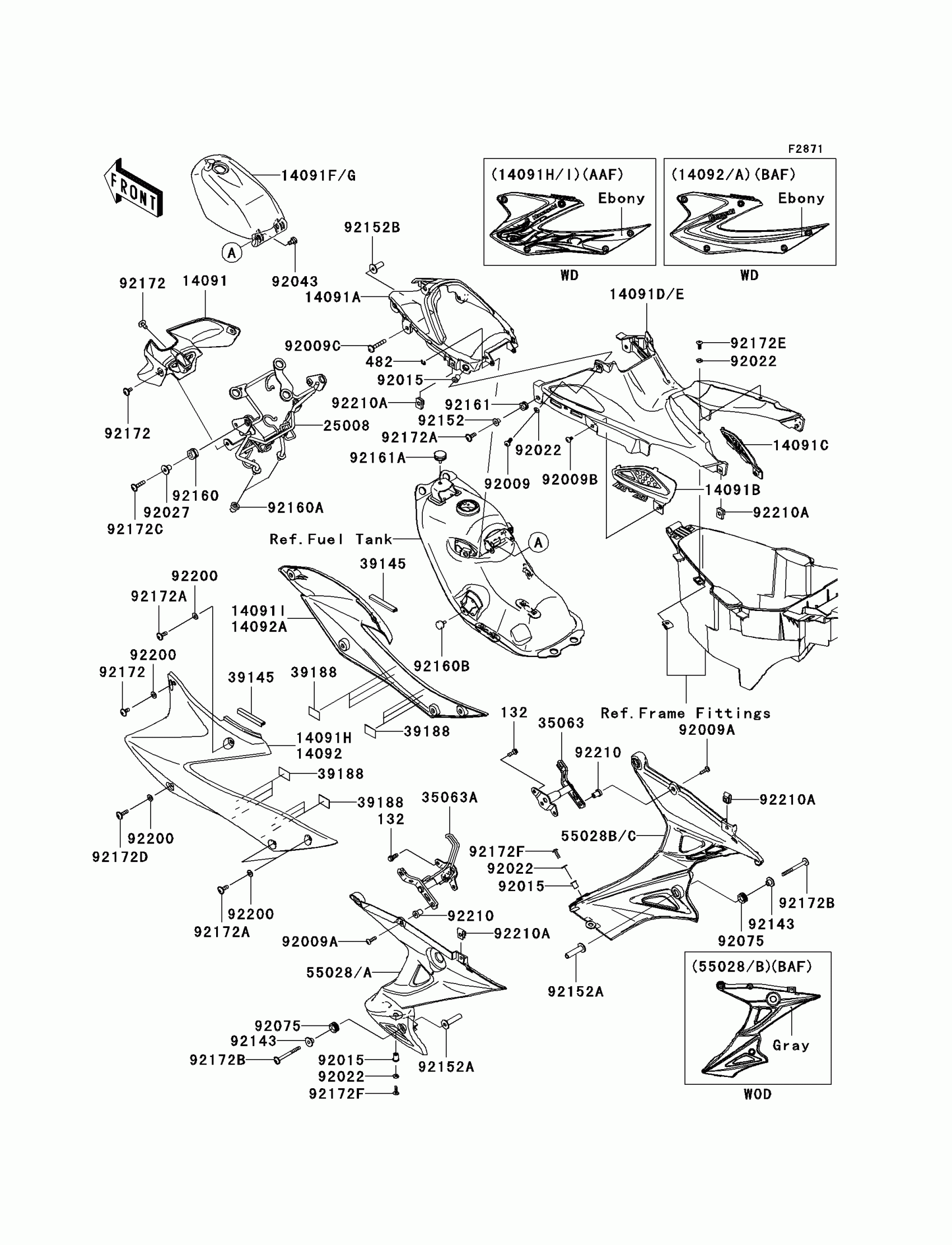

Kawasaki Fury 125R Cowling Diagram
#
14091
COVER,HORN
14091-0777
$8.14
14091A
COVER,FUEL TANK,OUTER
14091-0783
$7.99
14091B
COVER,LEG,LH
14091-0888
$4.58
14091C
COVER,LEG,RH
14091-0889
$4.58
14091E
COVER,LEG,L.GREEN
14091-1720-777
$47.94
14091G
COVER,FUEL TANK,L.GREEN
14091-1723-777
$22.32
14092
COVER,SHROUD,LH,EBONY
14092-5082-QE
$56.06
14092A
COVER,SHROUD,RH,EBONY
14092-5083-QE
$56.06
25008
BRACKET-METER
25008-0030
$65.61
35063
STAY,RH
35063-0517
$18.87
35063A
STAY,LH
35063-0614
$25.80
39145
TRIM-SEAL,L=70
39145-0038
$2.02
39188
TAPE
39188-0007
$2.13
55028A
COWLING,LWR,LH,L.GREEN
55028-0269-777
$45.59
55028C
COWLING,LWR,RH,L.GREEN
55028-0270-777
$44.90
92009
SCREW,5X18
92009-1655
$4.31
92009A
SCREW,5X20,BLACK
92009-1656
$3.96
92009B
SCREW,TAPPING 5X10
92009-1831
$2.58
92009C
SCREW,6X40
92009-1898
$2.67
92015
NUT,WELL,5MM
92015-1757
$7.29
92022
WASHER,NYLON,5.3X11.5X1.5
92022-1521
$3.92
92027
COLLAR,L=14.1
92027-1920
$6.57
92043
PIN
92043-0158
$6.03
92075
DAMPER
92075-1634
$4.69
92143
COLLAR,L=9.6
92143-1016
$6.22
92152
COLLAR
92152-0035
$0.82
92152A
COLLAR
92152-0607
$7.31
92152B
COLLAR
92152-0608
$6.05
132
BOLT-FLANGED-SMALL,6X16
132BB0616
$2.49
482
CIRCLIP-TYPE-E
482EA5000
$1.34
92160
DAMPER,10X20X12
92160-1167
$4.69
92160A
DAMPER
92160-1303
$0.77
92160B
DAMPER,BRAKE STOPPER
92160-1821
$1.11
92161
DAMPER
92161-0031
$0.67
92161A
DAMPER
92161-0581
$1.94
92172
SCREW,6X14
92172-0055
$0.39
92172A
SCREW,6X18
92172-0192
$11.28
92172B
SCREW,6X65
92172-0256
$1.19
92172C
SCREW,6X28
92172-0348
Unavailable
92172D
SCREW,6X22
92172-0373
$1.71
92172E
SCREW,5X14
92172-0461
$0.85
92172F
SCREW,5X16
92172-0462
$0.85
92200
WASHER,6.5X14X1
92200-1388
$2.46
92210
NUT,5MM
92210-0001
$6.18
92210A
NUT,6MM
92210-0218
$2.55
