2010 Kawasaki Fury 125R Chassis Electrical Equipment Diagram

← All diagrams

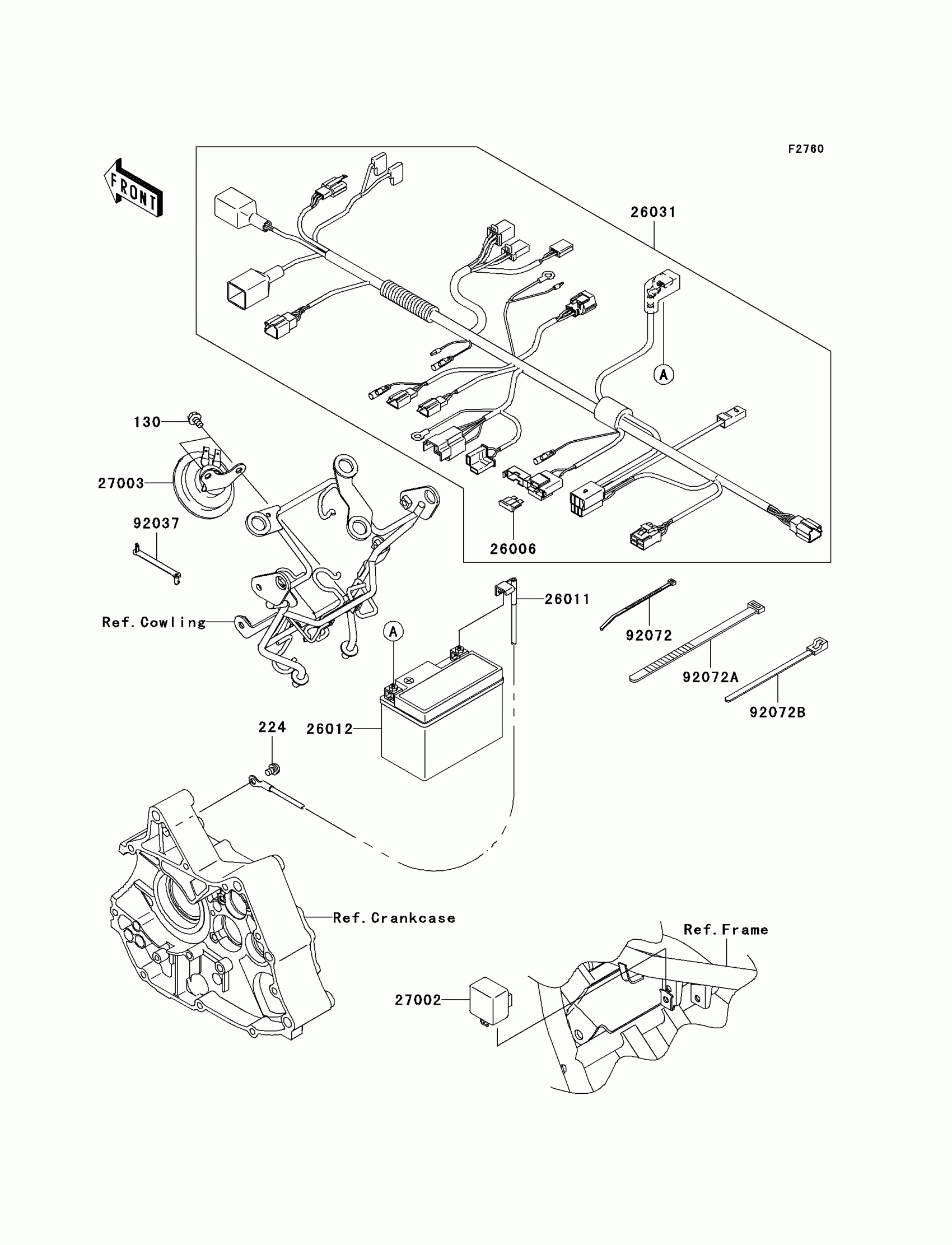

Find the part on the Chassis Electrical Equipment diagram for your 2010 Kawasaki Fury 125R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2010 Kawasaki Fury 125R Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X10

130AA0610

1

$0.53

In stock

224

SCREW-PAN-WP-CROS,6X10

224AA0610

1
Out of stock

26006

FUSE,10A,RED

26006-0010

1
Out of stock

26011

WIRE-LEAD,BATTERY(-)

26011-0218

1
Out of stock

26012

BATTERY,YTX4L-BS

26012-0075

1
Out of stock

26031

HARNESS,MAIN

26031-0774

1
Out of stock

27002

RELAY-ASSY

27002-1091

1
Out of stock

27003

HORN

27003-1422

1
Out of stock

92037

CLAMP,SPEED,L=58

92037-1163

1
Out of stock

92072

BAND

92072-0054

1
Out of stock

92072A

BAND,L=202

92072-1195

1
Out of stock

92072B

BAND,L=140

92072-1293

1
Out of stock
