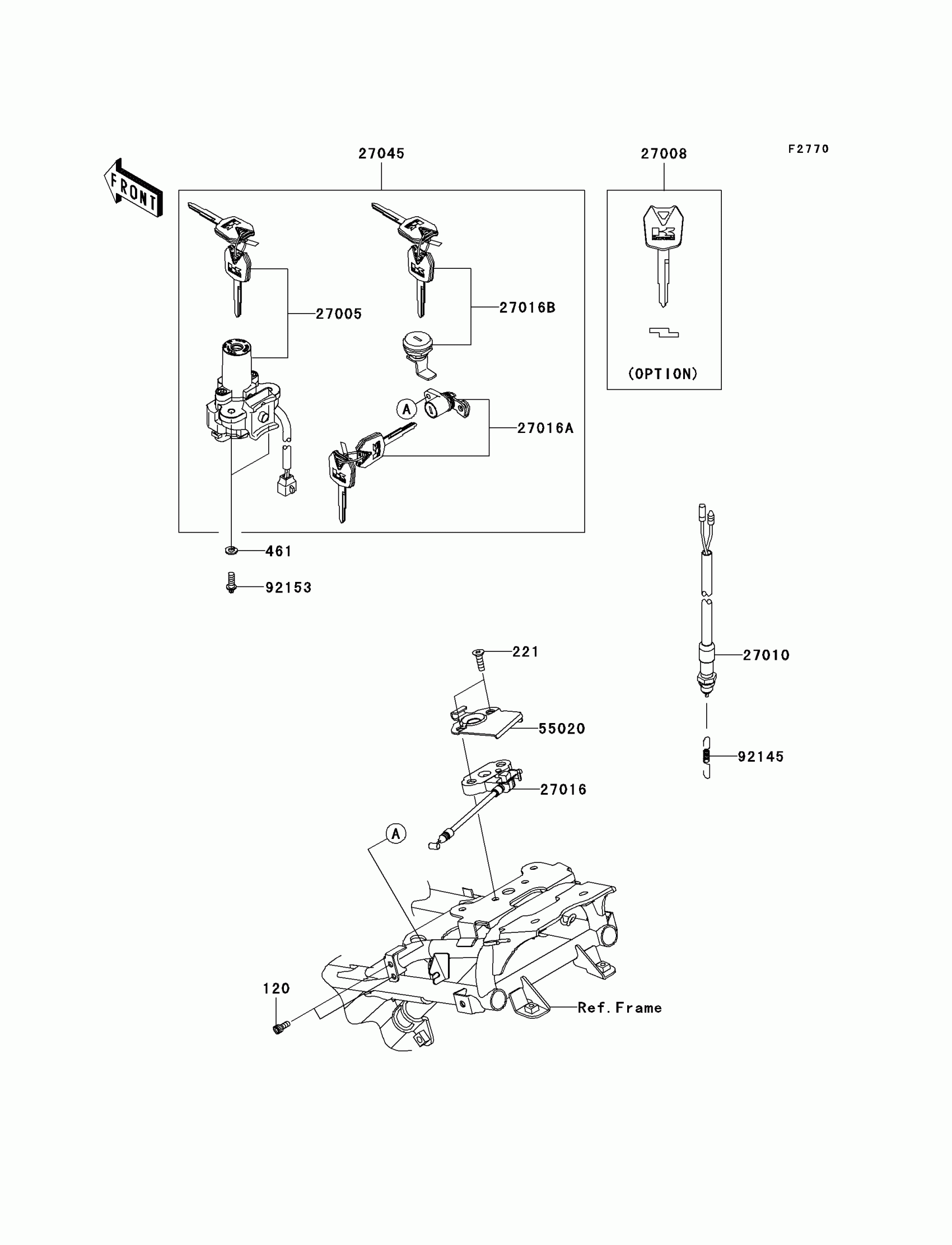

Kawasaki Fury 125R Ignition Switch Diagram

Description

Price

120

BOLT-SOCKET,5X12

120CB0512

$1.30

221

SCREW-CSK-CROSS,6X25

221AA0625

$1.81

461

WASHER-SPRING,6MM

461DA0600

$0.66

27005

SWITCH-ASSY-IGNITION

27005-5146

$121.07

27008

KEY-LOCK,BLANK

27008-0053

$17.17

27010

SWITCH,REAR BRAKE

27010-0044

$34.32

27016

LOCK-ASSY,SEAT STRIKER

27016-0025

$25.42

27016A

LOCK-ASSY,SEAT

27016-5353

$105.87

27016B

LOCK-ASSY,FUEL TANK COVER

27016-5354

$29.27

27045

SWITCH-ASSY

27045-5389

$223.83

55020

GUARD,SEAT LOCK

55020-0497

$12.44

92145

SPRING,REAR BRAKE

92145-0646

$1.93

92153

BOLT,TORX,6X16

92153-0967

$1.85
