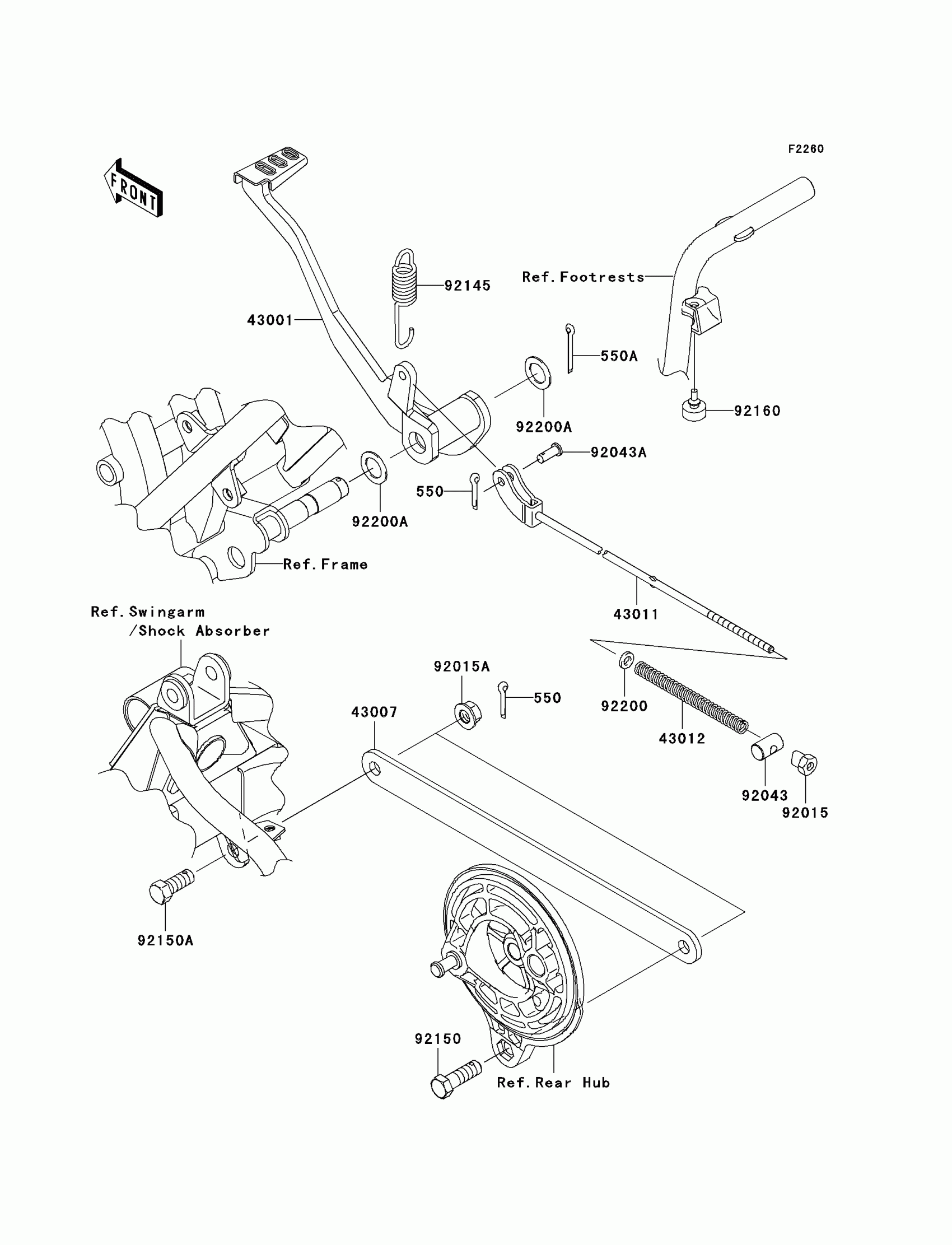

Kawasaki Fury 125R Brake Pedal(AAF) Diagram

Description

Price

550

PIN-COTTER,2.0X15

550AA2015

$1.12

550A

PIN-COTTER,3.0X30

550AA3030

$2.51

43001

LEVER-BRAKE,PEDAL

43001-0107

$64.33

43007

ROD-TORQUE

43007-1202

$4.76

43011

ROD-BRAKE

43011-0009

$15.77

43012

SPRING,BRAKE ROD

43012-001

$4.65

92015

NUT,BRAKE ROD

92015-042

$6.22

92015A

NUT,FLANGED,10MM

92015-1428

$5.00

92043

PIN,BRAKE ROD

92043-0147

$6.38

92043A

PIN,6X12.8

92043-1542

$0.72

92145

SPRING,BRAKE PEDAL

92145-0734

$5.86

92150

BOLT,10X32

92150-1872

$6.22

92150A

BOLT,10X25

92150-1873

$5.29

92160

DAMPER,BRAKE STOPPER

92160-1821

$1.11

92200

WASHER,6.5X12X2

92200-0086

$0.95

92200A

WASHER,15.3X24X1.2

92200-0444

$1.19
