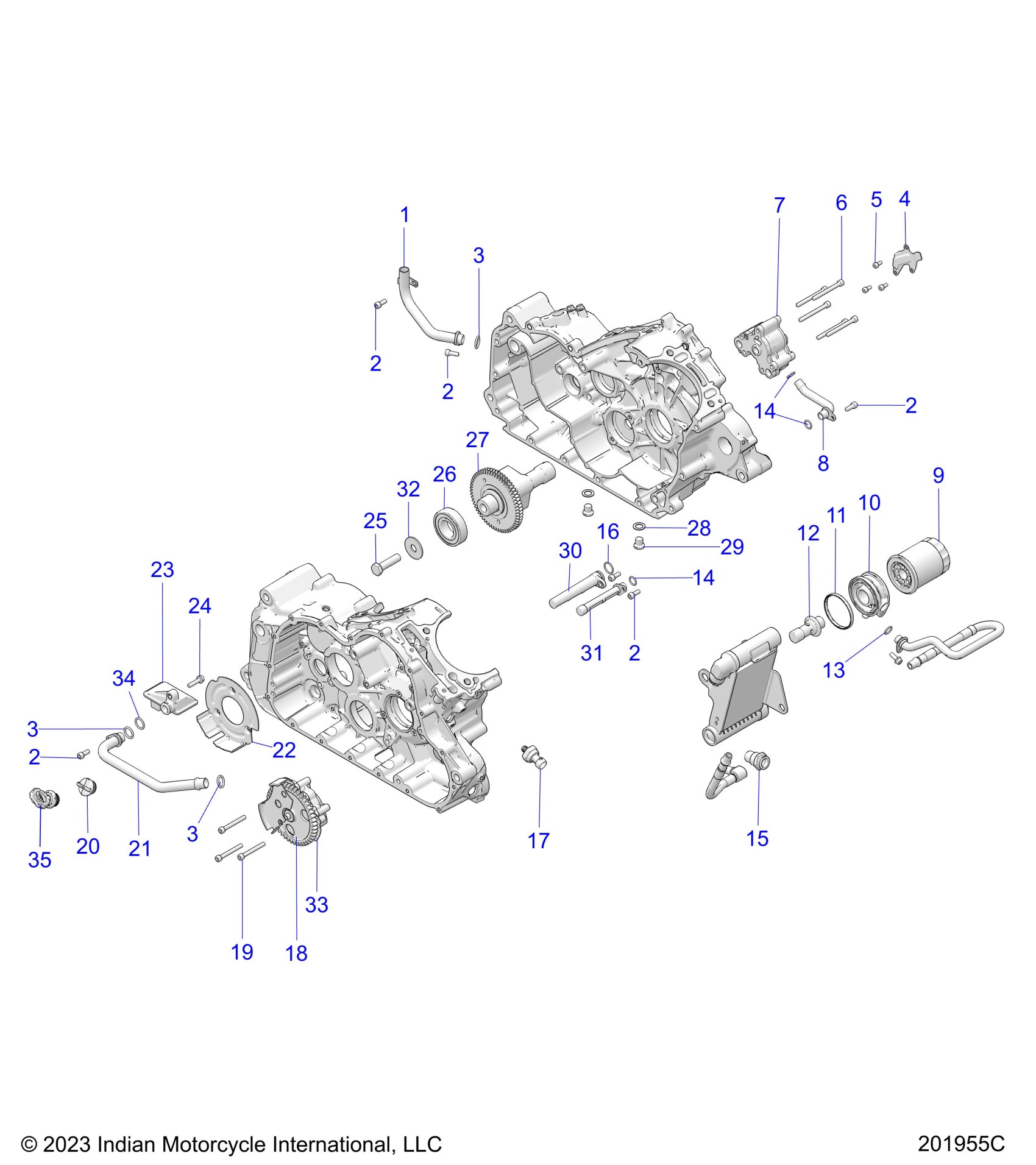

Polaris FTR X 100% R CARBON (R01) - N24FZU22JM/PM/RZU22AM/BM/CM/EM ENGINE, OIL SYSTEM - N24RZU122/FZU22 (201955C) Diagram

#

Description
Price

1

TUBE-SCAVENGE OIL RETURN

2521915

Unavailable

2

SCREW-SH-M6X1.0X15 10.9 ZPC D204

7517775

Unavailable

2

SCREW-SH-M6X1.0X15 10.9 ZPC D204

7517775

Unavailable

2

SCREW-SH-M6X1.0X15 10.9 ZPC D204

7517775

Unavailable

2

SCREW-SH-M6X1.0X15 10.9 ZPC D204

7517775

Unavailable

2

SCREW-SH-M6X1.0X15 10.9 ZPC D204

7517775

Unavailable

3

O-RING,.612X.818X.103

5413837

$4.84

3

O-RING,.612X.818X.103

5413837

$4.84

3

O-RING,.612X.818X.103

5413837

$4.84

4

CLIP-STATOR WIRE,IND

5258718

Unavailable

5

SCREW-M5X0.8X10 SOC/CP-D

7517847

$3.19

6

SCREW-SH-M6X1.0X60 8.8 ZPC

7517270

$3.99

7

ASM., OIL PUMP,DUAL SCAVENGE

1205329

Unavailable

8

TUBE-SCAVENGE,INLET

2522090

Unavailable

9

FILTER-OIL (10 MICRON)

2540086

$11.99

10

ADAPTER-OIL FILTER

5141707

Unavailable

11

SEAL-ADAPTER,OIL FILTER

5416476

Unavailable

12

SPIGOT-ADAPTER,OIL FILTER

5141706

Unavailable

13

O-RING-12.42X1.78,0600083

5412688

$4.49

14

O-RING 12.42X15.98X1.78

5414100

$1.49

14

O-RING 12.42X15.98X1.78

5414100

$1.49

15

FITTING-QC,OIL

2522106

Unavailable

16

O-RING,-017

5414596

Unavailable

17

SENSOR-OIL PRESSURE

4018558

$87.99

18

ASM., OIL PUMP [INCL. 33]

1205470

Unavailable

19

SCREW-SH-M6X1.0X50 8.8 ZPC

7518348

Unavailable

20

PLUG-OIL FILL

5454415

Unavailable

21

TUBE-PRESSURE OIL INLET

2521510

Unavailable

22

SHIELD-GEAR,CRANK [TO 3/20/25]

5258759

Unavailable

22

SHIELD-GEAR,CRANK [FROM 3/20/25]

5275219

Unavailable

23

ASM., OIL PICKUP [INCL. 34]

2521826

Unavailable

24

SCREW-SOCFLGHD,M6X1.0X25

7520179

Unavailable

25

SCREW-HEXHD,M12X45,0600088

7518575

Unavailable

26

BRG-BALL,6206ZZ,C3,30X62X16

3515835

Unavailable

27

ASM-BALANCE SHAFT

1208909

Unavailable

28

WASHER-19X12X1.3,COPPER

5812232

$1.59

29

PLUG-SOCKET,M12X1.5 DIN 908A

7052306

$15.37

30

SCREEN-OIL INLET,SCAVENGE [INCL. 16]

2521285

Unavailable

31

PICKUP-SCAVENGE

2521480

Unavailable

32

WASHER-FLAT,13.5X38.5X2.7

7556771

Unavailable

33

GEAR-OIL PUMP

5452831

Unavailable

34

O-RING,3-908

5416365

Unavailable

35

K-CAP,OIL,GILLES [GILLES OIL CAP]

2890138

Unavailable
