- FTR X 100% R CARBON (R01) - N24FZU22JM/PM/RZU22AM/BM/CM/EM
ENGINE, COOLING - N24RZU22/FZU22 (201950C)

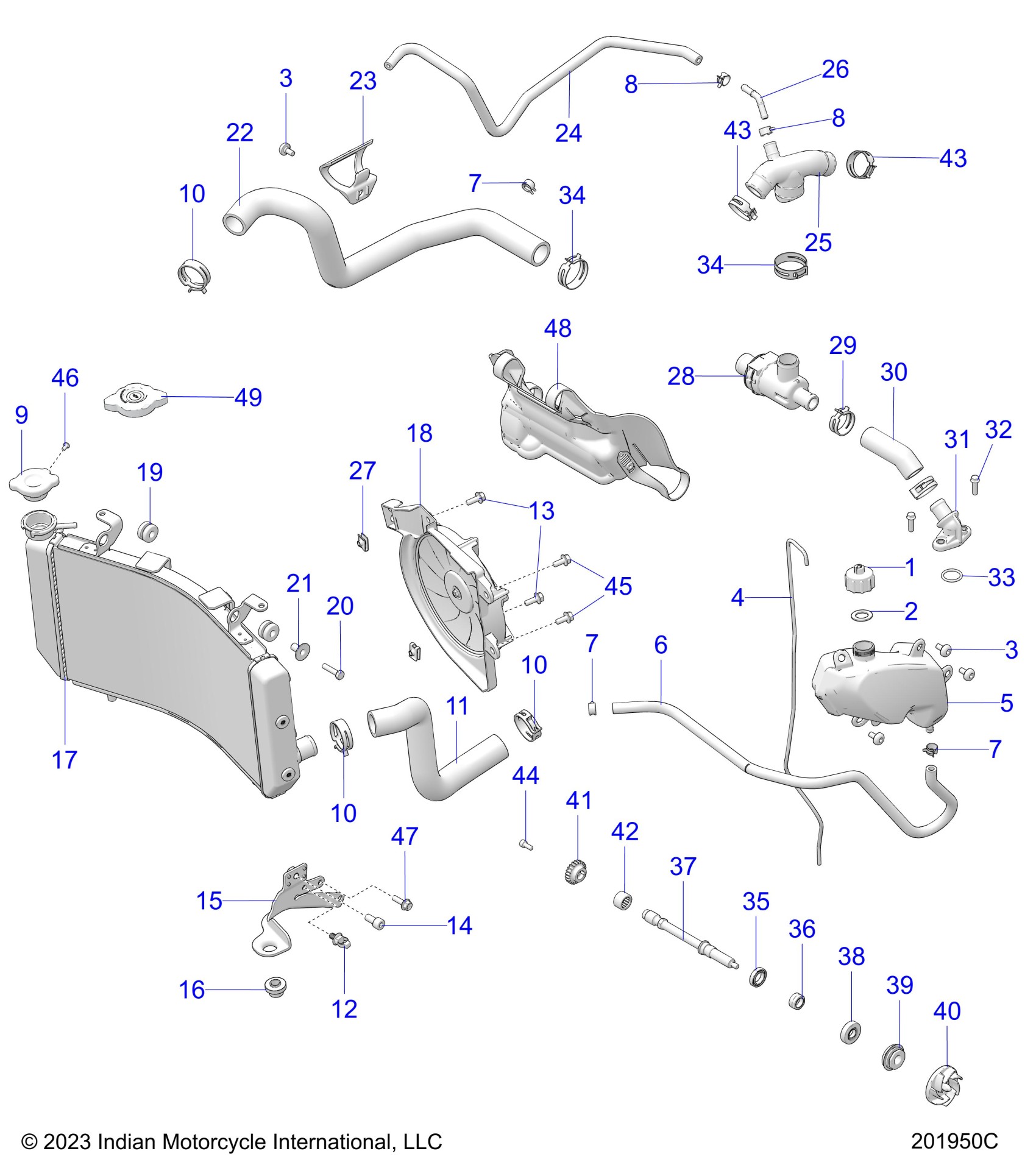

Polaris FTR X 100% R CARBON (R01) - N24FZU22JM/PM/RZU22AM/BM/CM/EM ENGINE, COOLING - N24RZU22/FZU22 (201950C) Diagram
#
1
CAP, OVER FLOW BOTTLE, W/FITTING
5437635
$4.79
2
GASKET-OVERFLOW CAP
5810279
$2.41
3
SCREW-M6X1.0,10,HEX,BUT,SHLD,BLK
7519203
Unavailable
3
SCREW-M6X1.0,10,HEX,BUT,SHLD,BLK
7519203
Unavailable
4
HOSE-POLY,CLEAR,3/16 OD,1/8 ID (BULK SVC LENGTH)
8360009-600
$40.46
5
BOTTLE-COOLANT,RECOVERY
2521982
Unavailable
6
FUEL LINE-66 CM
8450120-66
Unavailable
7
CLAMP-HOSE,1/2,SPRING-BLK
7082492
Unavailable
7
CLAMP-HOSE,1/2,SPRING-BLK
7082492
Unavailable
7
CLAMP-HOSE,1/2,SPRING-BLK
7082492
Unavailable
8
CLAMP-HOSE, 17/32, GREEN
7081432
$3.99
8
CLAMP-HOSE, 17/32, GREEN
7081432
$3.99
9
CAP-PRESSURE,1.1BAR,LOCK,ECOAT
1244800
Unavailable
10
SPRINGBAND-CLAMP 32/12,BLK
7081977
Unavailable
10
SPRINGBAND-CLAMP 32/12,BLK
7081977
Unavailable
10
SPRINGBAND-CLAMP 32/12,BLK
7081977
Unavailable
11
HOSE-RAD,OUT
5416660
Unavailable
12
CLIP FIR-TREE,DIA6-33MM
7081496
$4.79
13
SCREW-HXFL-M6X1.0X14, 8.8 ZPB
7520143
$3.99
14
SCREW-SH-M8X1.25X16 A2 EP SPC
7517523
Unavailable
15
BRKT-RADIATOR,BTM
5268115
Unavailable
16
BUSHING-MOUNT,TOPHAT
5417018
Unavailable
17
RADIATOR-CORE
1241357
Unavailable
18
ASM., FAN,160MM
2414502
Unavailable
19
ISOLATOR-9.1ID,22.4ODX14.2
5416856
Unavailable
20
SCREW-HH-M6X1.0X25 8.8 ZPB
7517510
$4.79
21
SPACER-6.6ID,9.1ODX14.2
5416857
Unavailable
22
HOSE-RAD,IN
5417498
Unavailable
23
CLIP-COOLANT LINE
5455730
Unavailable
24
HOSE-COOLANT,BLEED
5418285
Unavailable
25
JUNCTION-COOLANT
5418557
Unavailable
26
FITTING-ANGLE,1/4X1/4,BARB
7052767
Unavailable
27
NUT-CLIP,U
7547974
Unavailable
28
ASM., THERMOSTAT
1205798
Unavailable
29
SPRINGBAND-CLAMP 26/12
7081692
$4.03
30
HOSE-COOLANT,BYPASS
5416543
Unavailable
31
FITTING-COOLANT,BYPASS
5454710
Unavailable
32
SCREW-HXFL-M6X1.0X20 8.8 ZPC
7520035
Unavailable
33
O-RING 20.30MMX2.62MM
5413563
$1.60
34
SPRINGBAND-CLAMP 35/12,BLK
7080844
$10.39
34
SPRINGBAND-CLAMP 35/12,BLK
7080844
$10.39
35
BEARING, BALL, WP SHAFT
3514878
Unavailable
36
NUT-SPC,M14X1.5
7547688
Unavailable
37
SHAFT, WATER PUMP
5138723
Unavailable
38
SEAL-SHAFT, 12X28X7
3610228
Unavailable
39
SEAL-WATERPUMP SHAFT,WATER
3610173
Unavailable
40
IMPELLER-WATER PUMP
5141334
Unavailable
41
ASM., GEAR, DRIVEN, WATERPUMP
1333199
Unavailable
42
BEARING-NDL,14X20X12
3515832
Unavailable
43
SPRINGBAND-CLAMP 29/12,BLK
7080842
$7.19
43
SPRINGBAND-CLAMP 29/12,BLK
7080842
$7.19
44
SCREW-SH-M5X0.8X12 10.9 ZPC D204
7517276
$7.19
45
SCREW-HXFL-M6X1.0X14, 8.8 ZPB
7520143
$3.99
46
SCREW-HXBH-M4X0.7X8 10.9 ZPB
7517486
Unavailable
47
SCREW-HXFL, M6x1.0x20 8.8 ZPB
7520122
$4.79
48
HEAT DEFLECTOR, RUBBER
5417869
Unavailable
49
CAP,RADIATOR,GILLES,REDRING [GILLES CAP]
1028886
Unavailable
