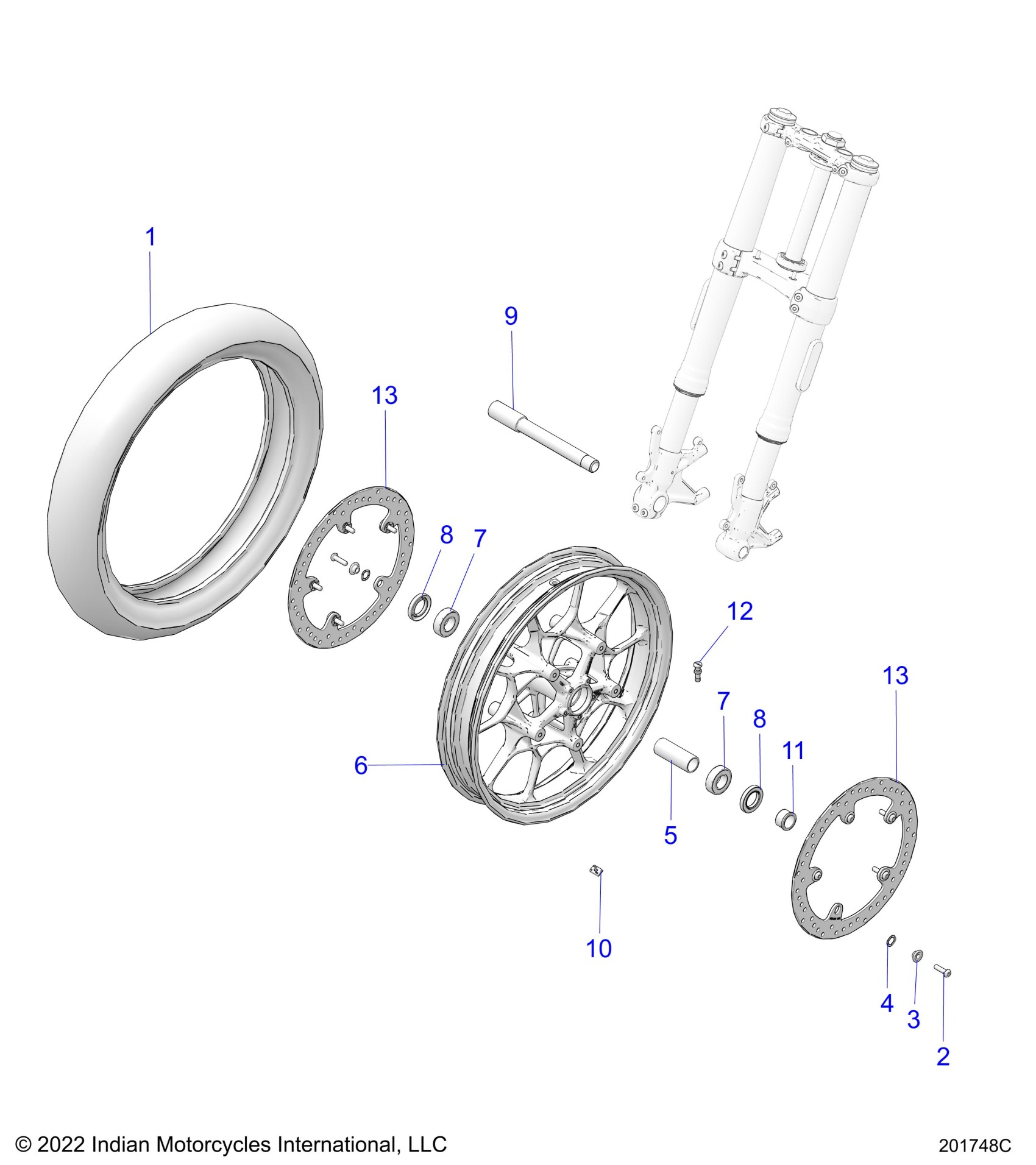

Polaris FTR RALLY ALL OPTIONS (R01) - N24RTT22AS/BS/CS/ES/UT24ES WHEEL, FRONT (NORTH AMERICA) - N24RTT22 (201748C) Diagram

#

Description
Price

1

TIRE-FT,PRLI STR 120/70R19

5417164

$199.99

2

SCREW-ROTOR,SEMI-FLOAT

7520851

Unavailable

3

BUSHING-ROTOR,SEMI-FLOAT

5141804

$3.17

4

WASHER-SPRING,ROTOR

7557116

$3.17

5

TUBE-COMPRESSION,FRONT

5142069

$40.46

6

WHL,FRT,19X3.0,CAST,BLK [INCL. 5,7,8,12]

1523218-266

$379.99

7

BEARING-6205,C3,25X52X15

3514823

$44.99

7

BEARING-6205,C3,25X52X15

3514823

$44.99

8

SEAL-32X52X7

3610333

$1.59

8

SEAL-32X52X7

3610333

$1.59

9

AXLE-FRONT

5141729

Unavailable

10

WEIGHT-STEEL, 5G, BLK

1525326

Unavailable

11

SPACER-WHEEL

5142462

$4.76

12

VALVE, RIM

1521312

$11.32

13

ROTOR,BRAKE,5MM

1913317

$154.99

13

ROTOR,BRAKE,5MM

1913317

$154.99
