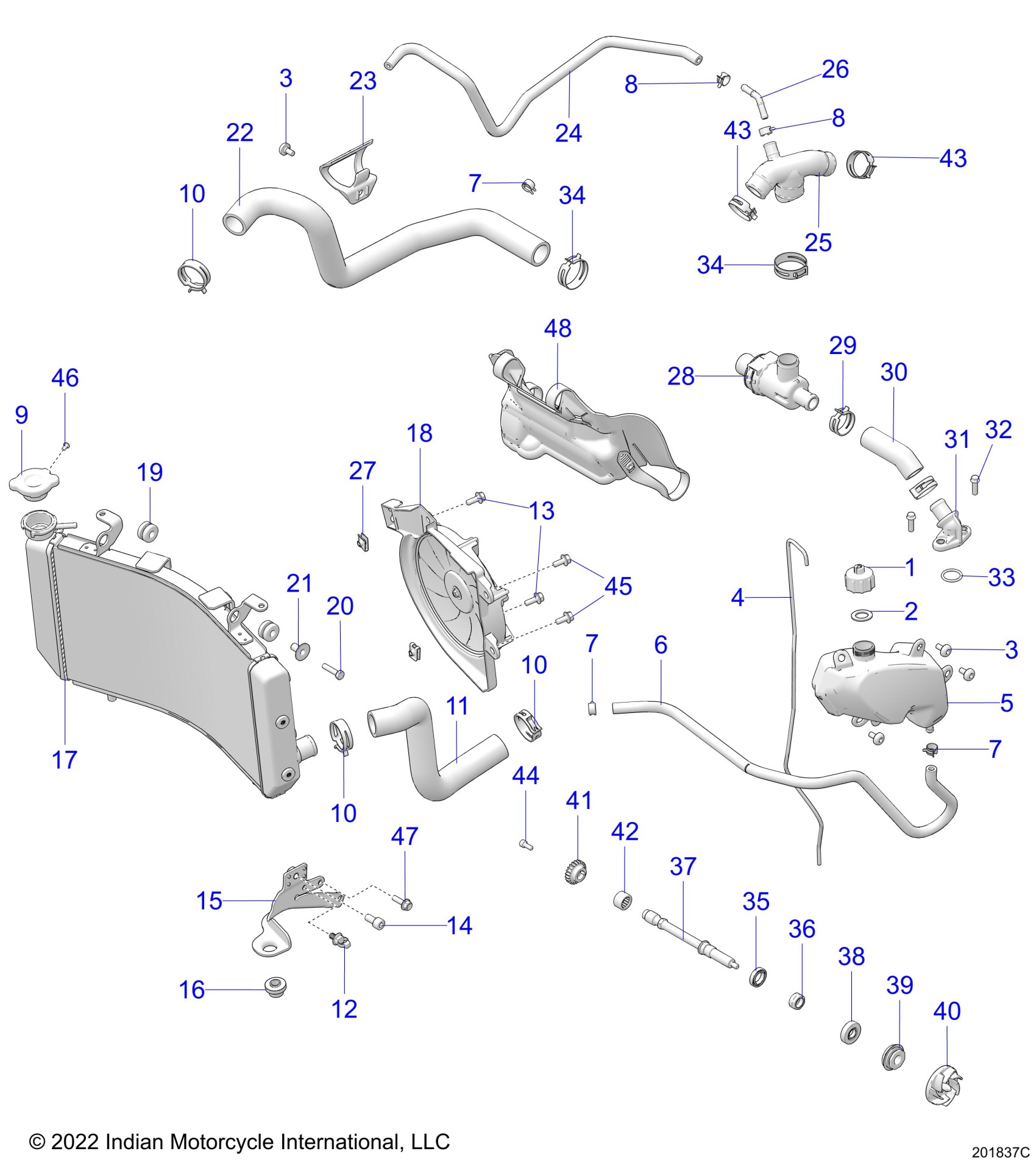

Polaris FTR RALLY ALL OPTIONS (R01) - N24RTT22AS/BS/CS/ES/UT24ES ENGINE, COOLING - N24RTT22 (201837C) Diagram

#

Description
Price

1

CAP, OVER FLOW BOTTLE, W/FITTING

5437635

$4.84

2

GASKET-OVERFLOW CAP

5810279

$2.41

3

SCREW-M6X1.0,10,HEX,BUT,SHLD,BLK

7519203

$12.99

3

SCREW-M6X1.0,10,HEX,BUT,SHLD,BLK

7519203

$12.99

4

HOSE-POLY,CLEAR,3/16 OD,1/8 ID (BULK SVC LENGTH)

8360009-600

Unavailable

5

BOTTLE-COOLANT,RECOVERY

2521982

$72.84

6

FUEL LINE-66 CM

8450120-66

$72.84

7

CLAMP-HOSE,1/2,SPRING-BLK

7082492

$3.17

7

CLAMP-HOSE,1/2,SPRING-BLK

7082492

$3.17

7

CLAMP-HOSE,1/2,SPRING-BLK

7082492

$3.17

8

CLAMP-HOSE, 17/32, GREEN

7081432

$3.97

8

CLAMP-HOSE, 17/32, GREEN

7081432

$3.97

9

CAP-PRESSURE,1.1BAR,LOCK,ECOAT

1244800

$53.24

10

SPRINGBAND-CLAMP 32/12,BLK

7081977

$5.56

10

SPRINGBAND-CLAMP 32/12,BLK

7081977

$5.56

10

SPRINGBAND-CLAMP 32/12,BLK

7081977

$5.56

11

HOSE-RAD,OUT

5416660

$36.41

12

CLIP FIR-TREE,DIA6-33MM

7081496

$4.76

13

SCREW-HXFL-M6X1.0X14, 8.8 ZPB

7520143

$3.97

14

SCREW-SH-M8X1.25X16 A2 EP SPC

7517523

$5.22

15

BRKT-RADIATOR,BTM

5268115

$36.41

16

BUSHING-MOUNT,TOPHAT

5417018

$2.38

17

RADIATOR-CORE

1241357

$399.99

18

ASM., FAN,160MM

2414502

$198.48

19

ISOLATOR-9.1ID,22.4ODX14.2

5416856

$7.14

20

SCREW-HH-M6X1.0X25 8.8 ZPB

7517510

$5.22

21

SPACER-6.6ID,9.1ODX14.2

5416857

Unavailable

22

HOSE-RAD,IN

5417498

$36.41

23

CLIP-COOLANT LINE

5455730

$6.35

24

HOSE-COOLANT,BLEED

5418285

$36.41

25

JUNCTION-COOLANT

5418557

$18.99

26

FITTING-ANGLE,1/4X1/4,BARB

7052767

$8.89

27

NUT-CLIP,U

7547974

$3.17

28

ASM., THERMOSTAT

1205798

$124.99

29

SPRINGBAND-CLAMP 26/12

7081692

$2.74

30

HOSE-COOLANT,BYPASS

5416543

$12.13

31

FITTING-COOLANT,BYPASS

5454710

$36.41

32

SCREW-HXFL-M6X1.0X20 8.8 ZPC

7520035

$4.76

33

O-RING 20.30MMX2.62MM

5413563

$1.60

34

SPRINGBAND-CLAMP 35/12,BLK

7080844

$10.32

34

SPRINGBAND-CLAMP 35/12,BLK

7080844

$10.32

35

BEARING, BALL, WP SHAFT

3514878

$33.32

36

NUT-SPC,M14X1.5

7547688

$27.78

37

SHAFT, WATER PUMP

5138723

$40.46

38

SEAL-SHAFT, 12X28X7

3610228

$15.87

39

SEAL-WATERPUMP SHAFT,WATER

3610173

$15.87

40

IMPELLER-WATER PUMP

5141334

$32.37

41

ASM., GEAR, DRIVEN, WATERPUMP

1333199

$48.40

42

BEARING-NDL,14X20X12

3515832

$15.87

43

SPRINGBAND-CLAMP 29/12,BLK

7080842

$7.14

43

SPRINGBAND-CLAMP 29/12,BLK

7080842

$7.14

44

SCREW-SH-M5X0.8X12 10.9 ZPC D204

7517276

$7.14

45

SCREW-HXFL-M6X1.0X14, 8.8 ZPB

7520143

$3.97

46

SCREW-HXBH-M4X0.7X8 10.9 ZPB

7517486

$5.22

47

SCREW-HXFL, M6x1.0x20 8.8 ZPB

7520122

$4.76

48

HEAT DEFLECTOR, RUBBER

5417869

$52.60
