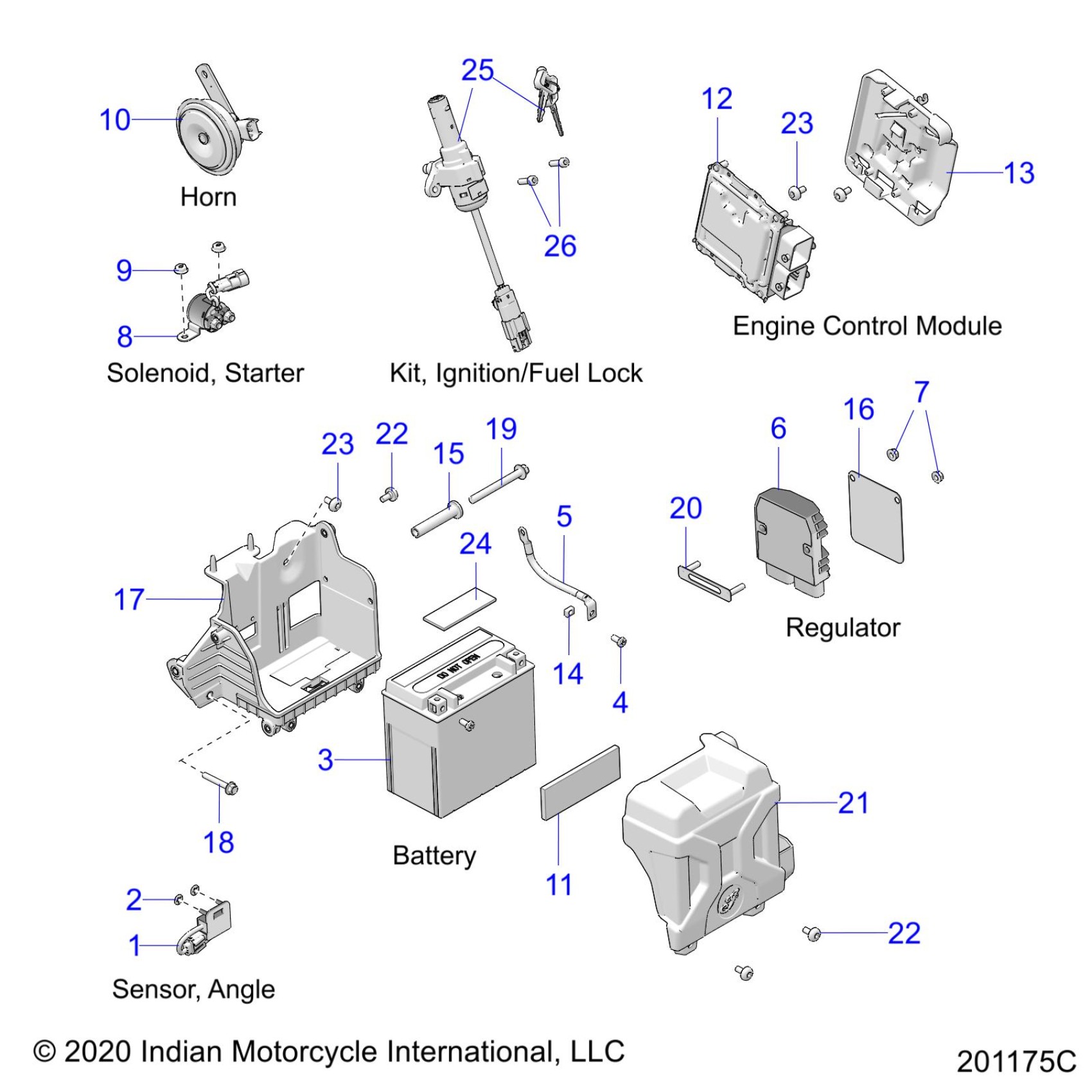

Polaris FTR RALLY ALL OPTIONS (R01) - N24RTT22AS/BS/CS/ES/UT24ES ELECTRICAL, COMPONENTS 1 - N24RTT22 (201175C) Diagram

SENSOR-ANGLE,65 DEGREE

4017979

$96.81

RING-RETAINING,4MM STUD

7710751

$3.97

BATT-12V240CCA,12AH,YTX14H,CO

4082075

Unavailable

SCREW-PHHX-M6X1X12,LPS,BATTERY

7520056

$3.17

CABLE-GROUND,TRK,V

4017582

$36.41

REGULATOR-3PH,35A,SERIES,105C

4012941

$284.99

NUT-HXFLGHD,M6,0600087

7710495

$5.22

SOLENOID, STARTER,C1100,W/WASHER

4014471

$47.60

SPEED NUT-WASHER, HEAD-1/4

7670054

$1.19

HORN, DISC, LOW TONE, TVS, MP280, 60

4017857

Unavailable

PAD-BATTERY, FRONT

5814831

$6.46

ECM-NO START,ME17 500K

4017585

$929.51

MOUNT-ECM

5454542

$28.32

NUT-RECT,M6X1,LPS,BATTERY

7547732

$3.97

TOPHAT-CRANKCASE,LH

5142198

$13.75

PLATE-BACKER, VOLTAGE REG

5270657

$10.51

TRAY-BATTERY

5269894

$84.98

SCREW-HXFL-M6X1.0X40 8.8 ZPB

7518579

$3.97

SCREW-HXFL-M8X1.25X75,10.9,ZPC

7519948

$3.97

STUD-MOUNTING,VOLTAGE REG

5265993

$23.81

COVER-BATTERY

5268451

$72.84

SCREW-HXBH-M6X1.0X10 8.8 ZPB SPC

7521013

$3.97

SCREW-HXBH-M6X1.0X10 8.8 ZPB SPC

7521013

$3.97

SCREW-M6X1.0,10,HEX,BUT,SHLD,BLK

7519203

$12.99

SCREW-M6X1.0,10,HEX,BUT,SHLD,BLK

7519203

$12.99

PAD, BATTERY

5815369

$0.79

K-IGNITION/FUEL LOCK,NS (INCL. IGNITION SWITCH,FUEL CAP LOCK,2 KEYS)

4019099

$199.99

KEY-BLANK,SERVICE (INCL. 1 BLANK KEY)

5268113

$24.27

SCREW-SH-M6X1.0X20 8.8 ZPB

7517305

$5.22
