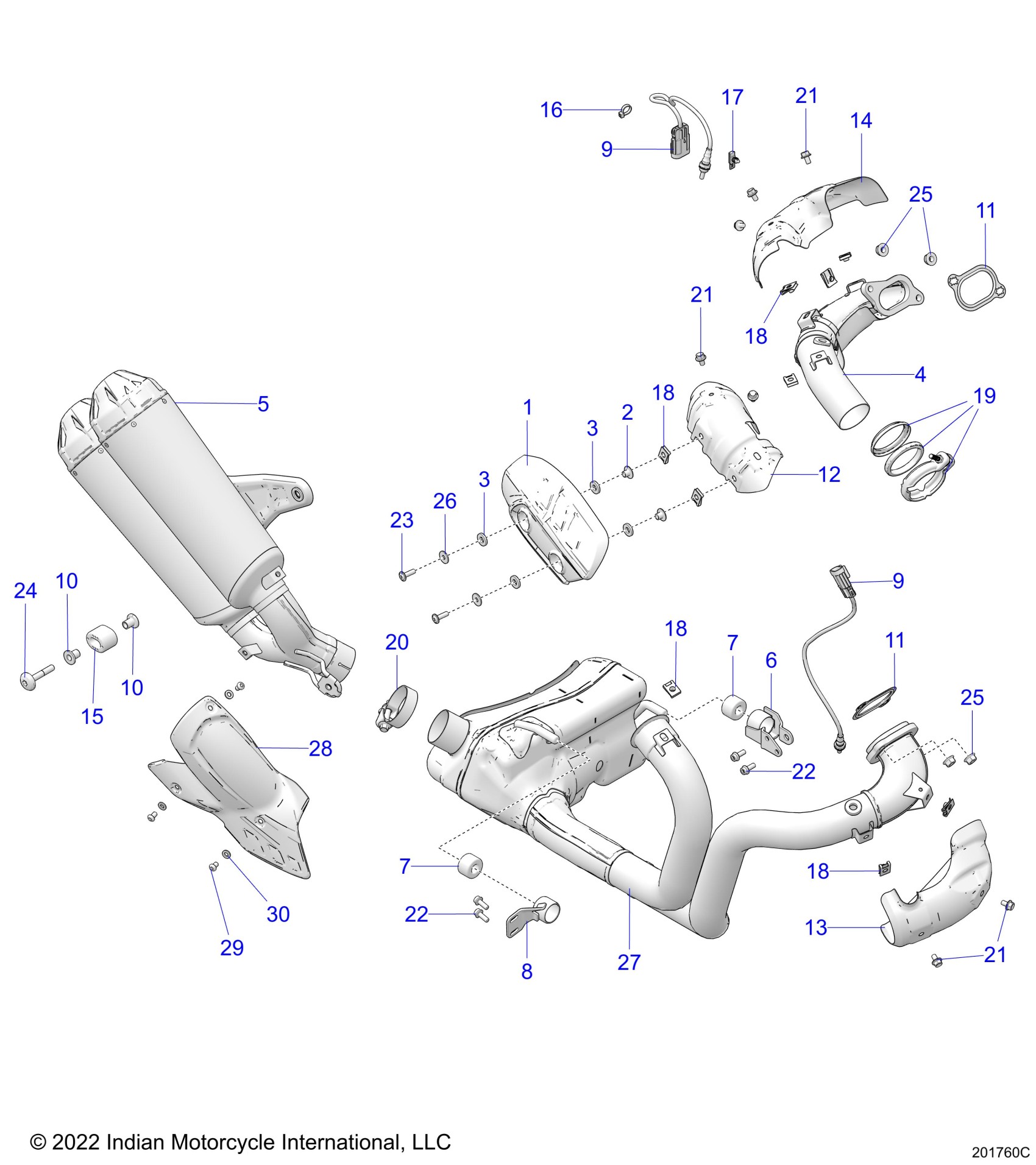

Polaris FTR/FTR SPORT ALL OPTIONS (R01) - N24FZA22JF/L/PF/L/M22JB/Y/PB/Y/RVA24EF/L/ZA22AF/L/BF/L/CF/L/EF/L/ZM22AB/Y/BB/Y/CB/Y/EB/Y ENGINE, EXHAUST ASM - N24RZA22/RZM22/FZA22/FZM22 (201760C) Diagram

Description

Price

ASM., HEATSHIELD,CENTRAL

1263372

$43.56

SPACER,HEAT-SHIELD

5144768

$9.52

WASHER-ISOLATOR,HEAT-SHIELD

7558792

$3.97

WASHER-ISOLATOR,HEAT-SHIELD

7558792

$3.97

ASM-HEADPIPE,REAR

1263463

$554.99

ASM-MUFFLER,TOP

1263792

$2,484.99

ASM-RESONATOR,MOUNT,LH (INCL. 7)

1263635

$109.99

GROMMET-ISOLATOR,RESONATOR

5417643

$5.56

GROMMET-ISOLATOR,RESONATOR

5417643

$5.56

ASM-RESONATOR,MOUNT,RH (INCL. 7)

1263869

$84.99

SENSOR, OXYGEN

4016021

$169.98

SENSOR, OXYGEN

4016021

$169.98

INSERT-EXHAUST,ISOLATOR

5142036

$4.03

INSERT-EXHAUST,ISOLATOR

5142036

$4.03

GASKET-EXHAUST,PORT

5271218

$43.65

GASKET-EXHAUST,PORT

5271218

$43.65

HEAT-SHIELD,CENTRAL,STEEL

5268829

$43.56

HEAT-SHIELD,FRONT

5269140

$64.99

HEAT-SHIELD,REAR,TOP

5269379

$69.99

GROMMET-ISOLATOR,RESONATOR

5416612

$23.81

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

CLIP-FIR,HOLE6.35MM

7082134

$3.97

C-CLIP,M6

7082445

$3.97

C-CLIP,M6

7082445

$3.97

C-CLIP,M6

7082445

$3.97

C-CLIP,M6

7082445

$3.97

CLAMP-V BAND (INCL. CLAMP, GASKET,RING)

7082577

$51.59

CLAMP-EXHAUST

7082628

$35.71

SCR-HXFL-M6X1.0X10 8.8 ZPC

7518140

$3.17

SCR-HXFL-M6X1.0X10 8.8 ZPC

7518140

$3.17

SCR-HXFL-M6X1.0X10 8.8 ZPC

7518140

$3.17

SCREW-SOCFLGHD,M6X1.0X16

7518803

$3.97

SCREW-SOCFLGHD,M6X1.0X16

7518803

$3.97

SCREW-M6X1-20-8.8-BUTTON-FLANGE

7520981

$3.97

BOLT-M8,MUFFLER,STYLED,ZNC CLR

7521229

$5.99

NUT-HXFLGHD,M8,0600087

7547014

$7.84

NUT-HXFLGHD,M8,0600087

7547014

$7.84

WASHER-6.4X18.0X1.6 ZC

7556565

$2.38

ASM-RESONATOR,COLLECTOR,NA

1263578

$1,429.99

ASM-RESONATOR,COLLECTOR (INTL. ONLY)

1263813

Unavailable

SHIELD-MUFFLER,INLET

5273142

$101.65

SCR-TXBH-M6X1.0X12 8.8 EP

7528258

$5.99

SHIELD-WASHER

7558804

$3.17
