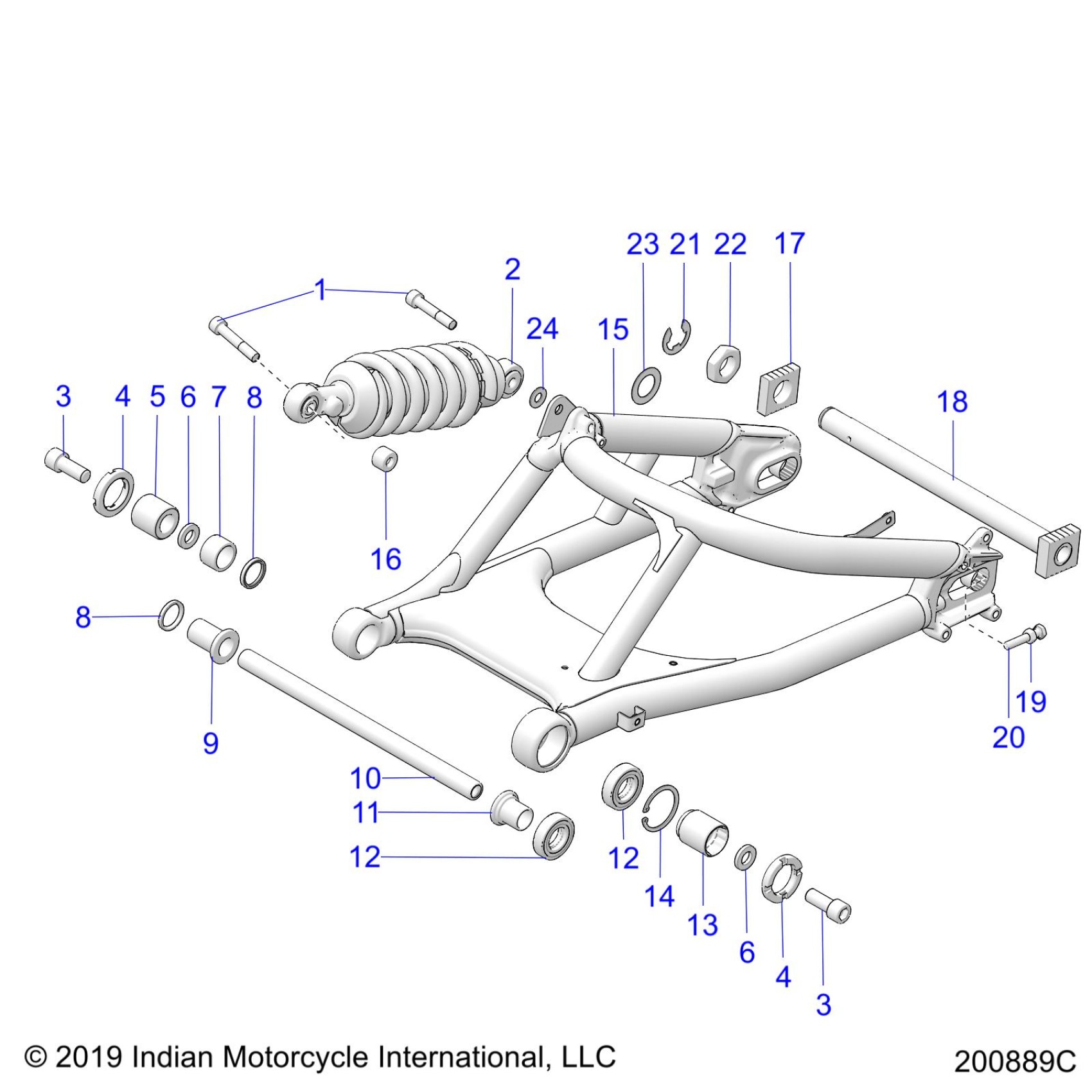

Polaris FTR 1200 RALLY (R05) - N20RTT22A9/B9/C9/E9 SUSPENSION,REAR SWING ARM/SHOCK - N20RTT22 (200889C) Diagram

#

Description
Price

1

SCREW-SH-M10X1.5X55 10.9 SPCL

7521017

$4.76

2

ASM., SHOCK,BASE,BLK

1824960-266

$689.99

3

SCREW-SH-M14X2X35 10.9 ZPC D204

7521139

$8.08

3

SCREW-SH-M14X2X35 10.9 ZPC D204

7521139

$8.08

4

RING-LOCK,PIVOT

5142051

$23.81

4

RING-LOCK,PIVOT

5142051

$23.81

5

ADJUSTER-PIVOT,RH

5142050

$39.68

6

WASHER-14.5X26.4X4 ZPC

7557189

$4.76

6

WASHER-14.5X26.4X4 ZPC

7557189

$4.76

7

BEARING-NEEDLE ROLLER,HK2520

3514413

$19.84

8

SEAL-SD25X32X4

3610096

$11.90

8

SEAL-SD25X32X4

3610096

$11.90

9

BUSH-PIVOT,RH

5141833

$31.75

10

SHAFT-PIVOT

5142071

$94.99

11

BUSH-PIVOT,LH

5141731

$23.81

12

BEARING,BALL,47X25X12,6005-2RS

3514549

$23.81

12

BEARING,BALL,47X25X12,6005-2RS

3514549

$23.81

13

ADJUSTER-PIVOT,LH

5142049

$39.68

14

RING-SNAP,DIN472,47X1.75MM

7710677

$5.65

15

SWINGARM,STEEL,BLACK [INCL. 7,8,12,14]

1024289-266

$654.99

15

K-BEARINGS,SWING-ARM [INCL. 7,8,9,12]

2208038

$94.99

16

BUSH-SHOCK,FLOATING

5142556

$19.84

17

PLATE-ADJUSTER,AXLE,RH

5141735

$32.37

18

ASM., AXLE,REAR

1544152

$61.10

19

NUT-HEX-M8X1.25 8 ZPB.

7547076

$2.60

20

SCREW-HH M8X1.25X45 SPCL

7520973

$3.97

21

RING-E-CLIP,63/64

7710908

$3.97

22

NUT-AXLE,REAR

7547932

$27.78

23

WASHER-25X40X1.2 ZPC

7557132

$3.97

24

WSHR-10.5X22.0X1.6 SPC

7556155

$5.22
