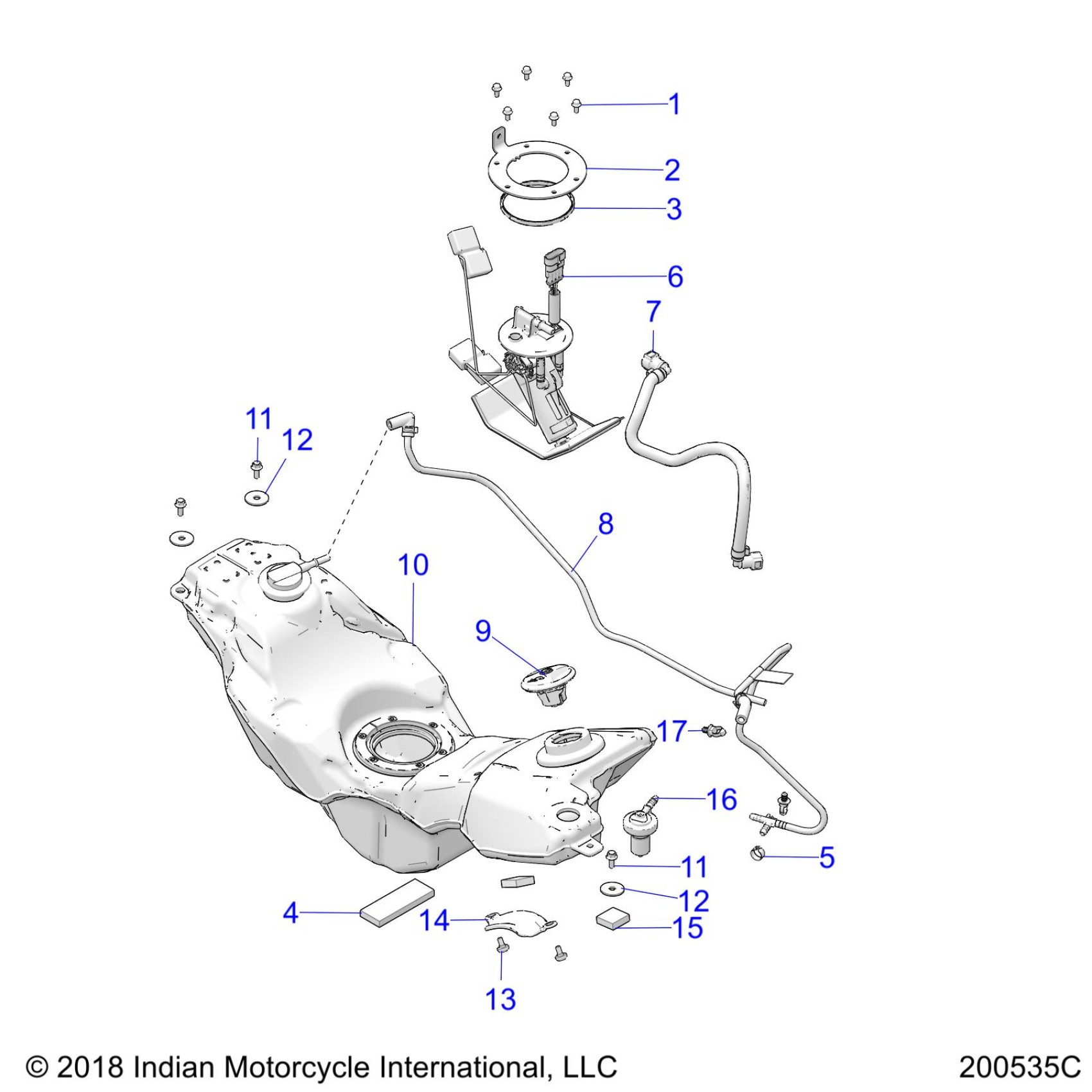

Polaris FTR 1200 RALLY (R05) - N20RTT22A9/B9/C9/E9 FUEL SYSTEM, FUEL TANK ASM. - N20RTT22 (200535C) Diagram

#

Description
Price

1

SCREW-HXGL-M5X0.8X12 8.8

7520974

$3.17

2

RING-LOCK,PFA

5455026

$43.65

3

SEAL-PFA

5416648

$35.71

4

PAD-RUBBER,35X100

5814767

$6.46

5

CLAMP-HOSE, 9/16, SPRING-B

7080534

$1.59

6

PUMP-FUEL

2522246

$634.99

7

LINE-FUEL

8450200

$169.99

8

FUEL LINE ASM. [EXCLUDES CALIF., INTL.]

5455341

$124.99

9

K-FUEL CAP, SERVICE, NS [INCL. CAP, KEY]

2208309

$109.99

10

ASM., FUEL TANK [INCL. 1-3,6,16]

1024092

$794.99

11

SCREW-HXFL-M6X1.0X16 8.8 ZPB

7518591

$3.79

11

SCREW-HXFL-M6X1.0X16 8.8 ZPB

7518591

$3.79

12

WASHER-.327X.875X.090,FL-Y

7556175

$5.99

12

WASHER-.327X.875X.090,FL-Y

7556175

$5.99

13

SCREW-HXBH-M6X1.0X10 8.8 ZPB SPC

7521013

$3.97

14

RETAINER-FUEL LINE

5455340

$7.94

15

PAD-RUBBER,30X30

5814766

$3.22

16

VALVE-ROLLOVER

----

Unavailable

17

CLIP FIR-TREE,DIA6-33MM

7081496

$4.76

17

CLIP-PUSH IN, 0.50

7081968

$6.35
