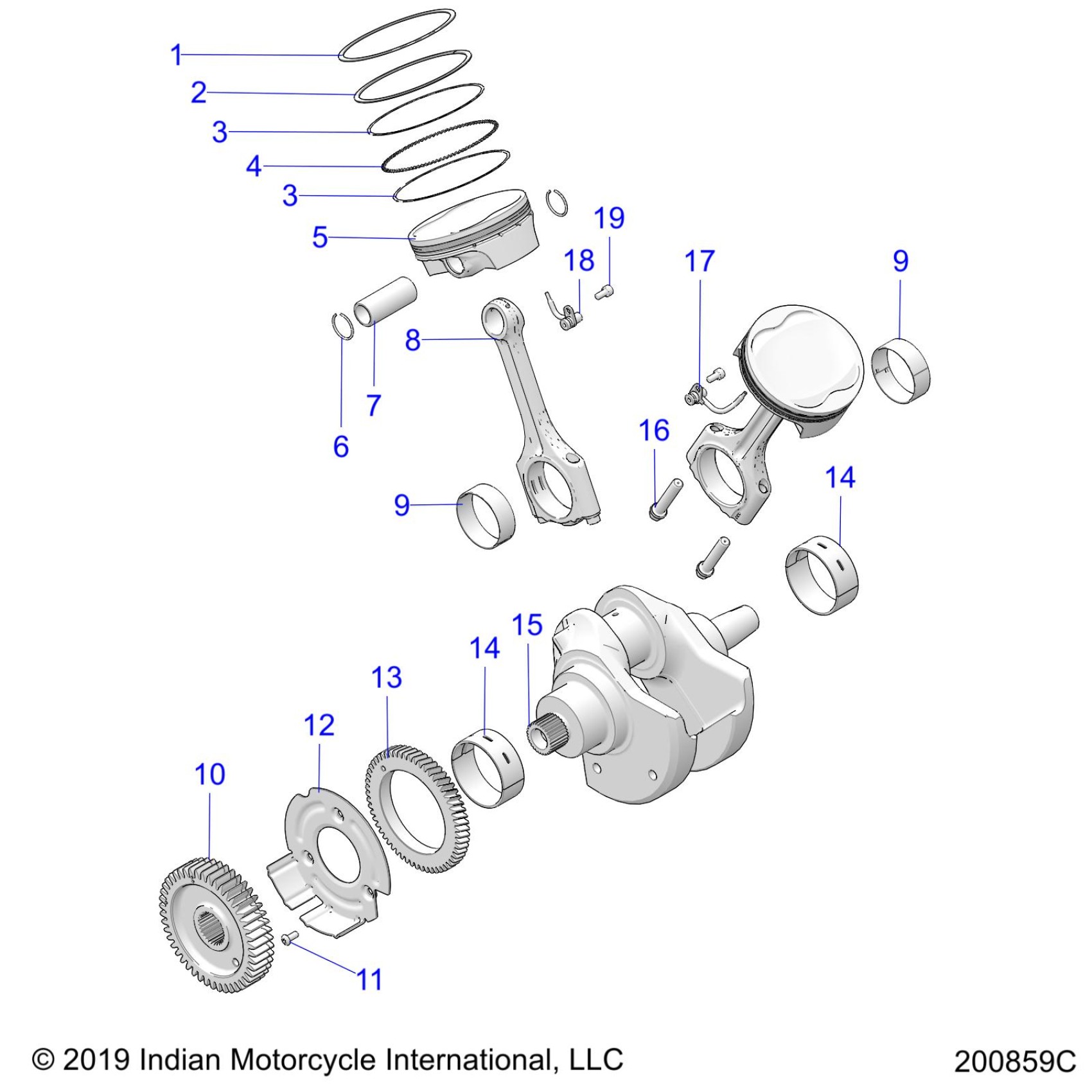

Polaris FTR 1200 RALLY (R05) - N20RTT22A9/B9/C9/E9 ENGINE, PISTON AND CRANKSHAFT ASM. - N20RTT22 (200859C) Diagram

#

Description
Price

1

K, RINGS, PISTON [INCL. 1-4,6]

2208057

$114.99

1

RING-TOP

----

Unavailable

2

RING-SECOND

----

Unavailable

3

RING-OIL CONTROL

----

Unavailable

3

RING-OIL CONTROL

----

Unavailable

4

RING-OIL EXPANDER

----

Unavailable

5

PISTON-102MM,BOX [INCL. 1-7]

3023573

$244.99

6

RING-RTNG,RND,22.0X1.6

7710899

$23.81

7

PIN-PISTON

3023331

$44.99

8

ASM., CONNECTING ROD [INCL. 16]

3023329

$242.84

9

BEARING-ROD,48X51X17,LD,GRD 1

3515027-001

$19.84

9

BEARING-ROD,48X51X17,LD,GRD 2

3515027-002

$19.84

9

BEARING-MAIN,48X51X17,LD,GRD 3

3515027-003

$19.84

9

BEARING-ROD,48X51X17,LD,GRD 1

3515027-001

$19.84

9

BEARING-ROD,48X51X17,LD,GRD 2

3515027-002

$19.84

9

BEARING-MAIN,48X51X17,LD,GRD 3

3515027-003

$19.84

10

ASM., GEAR,CRANKSHAFT

1333532

$280.78

11

SCREW-BTNHD,M5X.8X12,0600129

7518817

$3.97

12

SHIELD-GEAR,CRANK

5258759

$40.46

13

GEAR-CRANKSHAFT

----

Unavailable

14

BEARING-MAIN,56X60X23,UP,GRD 1

3515065-001

$23.81

14

BEARING-MAIN,56X60X23,UP,GRD 2

3515065-002

$23.81

14

BEARING-MAIN,56X60X23,UP,GRD 3

3515065-003

$23.81

14

BEARING-MAIN,56X60X23,LW,GRD 1

3515066-001

$23.81

14

BEARING-MAIN,56X60X23,LW,GRD 2

3515066-002

$23.81

14

BEARING-MAIN,56X60X23,LW,GRD 3

3515066-003

$23.81

14

BEARING-MAIN,56X60X23,UP,GRD 1

3515065-001

$23.81

14

BEARING-MAIN,56X60X23,UP,GRD 2

3515065-002

$23.81

14

BEARING-MAIN,56X60X23,UP,GRD 3

3515065-003

$23.81

14

BEARING-MAIN,56X60X23,LW,GRD 1

3515066-001

$23.81

14

BEARING-MAIN,56X60X23,LW,GRD 2

3515066-002

$23.81

14

BEARING-MAIN,56X60X23,LW,GRD 3

3515066-003

$23.81

15

ASM., CRANKSHAFT [INCL. 13]

3023328

$1,359.99

16

BOLT-CONROD MJ9X1.0X44

7520356

$23.81

17

ASM., PISTON COOLING JET,REAR

1205135

$42.84

18

ASM., PISTON COOLING JET,FRT

1205134

$42.84

19

SCREW-M5X0.8X10 SOC/CP-D

7517847

$3.17
