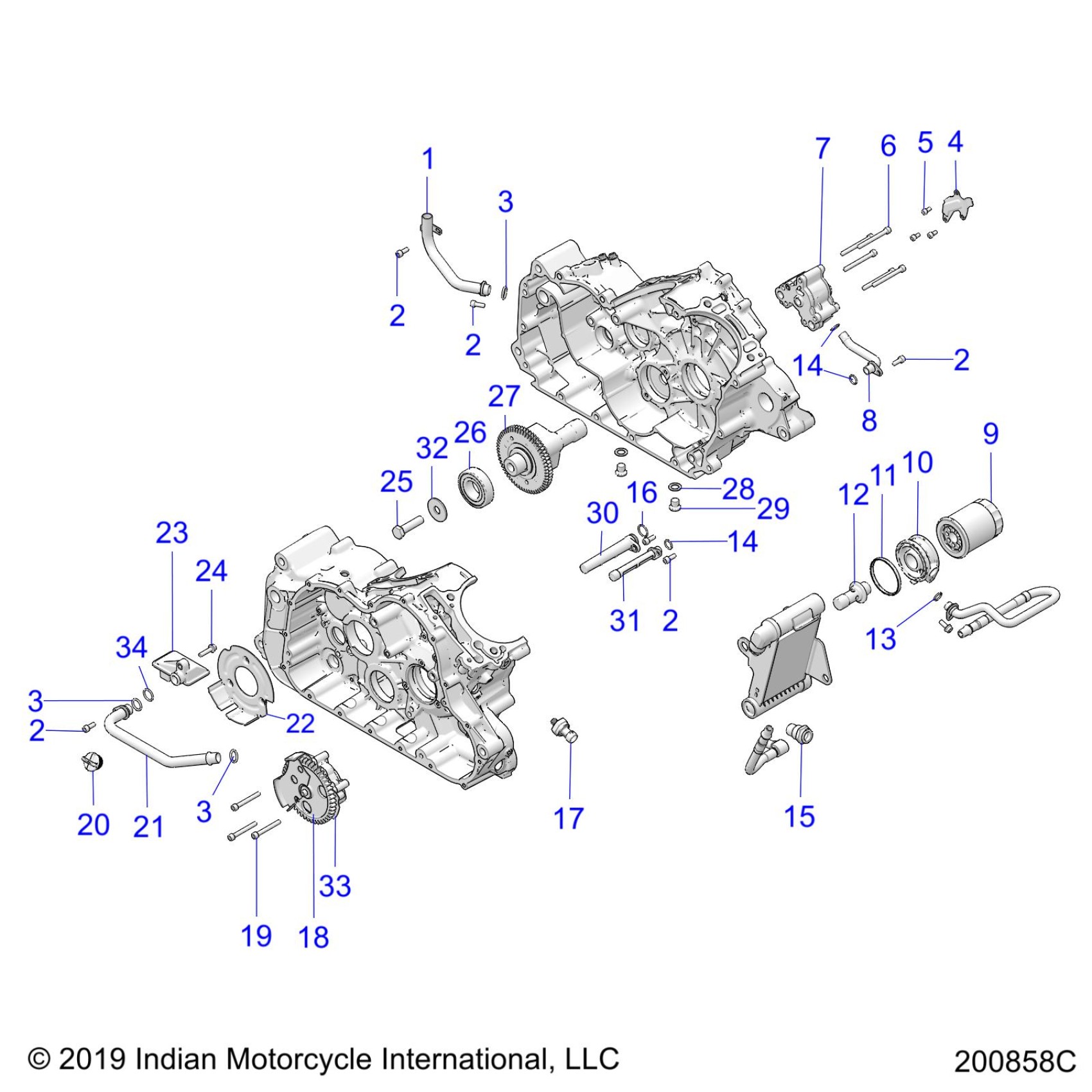

Polaris FTR 1200 RALLY (R05) - N20RTT22A9/B9/C9/E9 ENGINE, OIL SYSTEM - N20RTT22 (200858C) Diagram

TUBE-SCAVENGE OIL RETURN

2521915

$119.99

SCREW-SH-M6X1.0X15 10.9 ZPC D204

7517775

$5.22

SCREW-SH-M6X1.0X15 10.9 ZPC D204

7517775

$5.22

SCREW-SH-M6X1.0X15 10.9 ZPC D204

7517775

$5.22

SCREW-SH-M6X1.0X15 10.9 ZPC D204

7517775

$5.22

SCREW-SH-M6X1.0X15 10.9 ZPC D204

7517775

$5.22

O-RING,.612X.818X.103

5413837

$4.84

O-RING,.612X.818X.103

5413837

$4.84

O-RING,.612X.818X.103

5413837

$4.84

CLIP-STATOR WIRE,IND

5258718

$12.99

SCREW-M5X0.8X10 SOC/CP-D

7517847

$3.17

SCREW-SH-M6X1.0X60 8.8 ZPC

7517270

$4.35

ASM., OIL PUMP,DUAL SCAVENGE

1205329

$142.84

TUBE-SCAVENGE,INLET

2522090

$48.56

FILTER-OIL (10 MICRON)

2540086

$11.90

ADAPTER-OIL FILTER

5141707

$40.46

SEAL-ADAPTER,OIL FILTER

5416476

$5.56

SPIGOT-ADAPTER,OIL FILTER

5141706

$40.46

O-RING-12.42X1.78,0600083

5412688

$4.49

O-RING 12.42X15.98X1.78

5414100

$0.79

O-RING 12.42X15.98X1.78

5414100

$0.79

FITTING-QC,OIL

2522106

$44.51

E-CLIP QUICKCONNECT

5342231

$5.65

O-RING,-017

5414596

$1.98

SENSOR-OIL PRESSURE

4018558

$114.99

ASM., OIL PUMP [INCL. 33]

1205470

Unavailable

SCREW-SH-M6X1.0X50 8.8 ZPC

7518348

$5.69

PLUG-OIL FILL

5454415

Unavailable

TUBE-PRESSURE OIL INLET

2521510

$60.70

SHIELD-GEAR,CRANK

5258759

$40.46

ASM., OIL PICKUP [INCL. 34]

2521826

$44.99

SCREW-SOCFLGHD,M6X1.0X25

7520179

$5.56

SCREW-HEXHD,M12X45,0600088

7518575

$23.81

BRG-BALL,6206ZZ,C3,30X62X16

3514886

Unavailable

ASM., BALANCE SHAFT

1205739

Unavailable

WASHER-19X12X1.3,COPPER

5812232

$1.59

PLUG-SOCKET,M12X1.5 DIN 908A

7052306

$15.37

SCREEN-OIL INLET,SCAVENGE [INCL. 16]

2521285

$48.56

PICKUP-SCAVENGE

2521480

$58.08

WASHER-FLAT,13.5X38.5X2.7

7556771

$10.32

GEAR-OIL PUMP

5452831

$36.41

O-RING,3-908

5416365

$5.56
