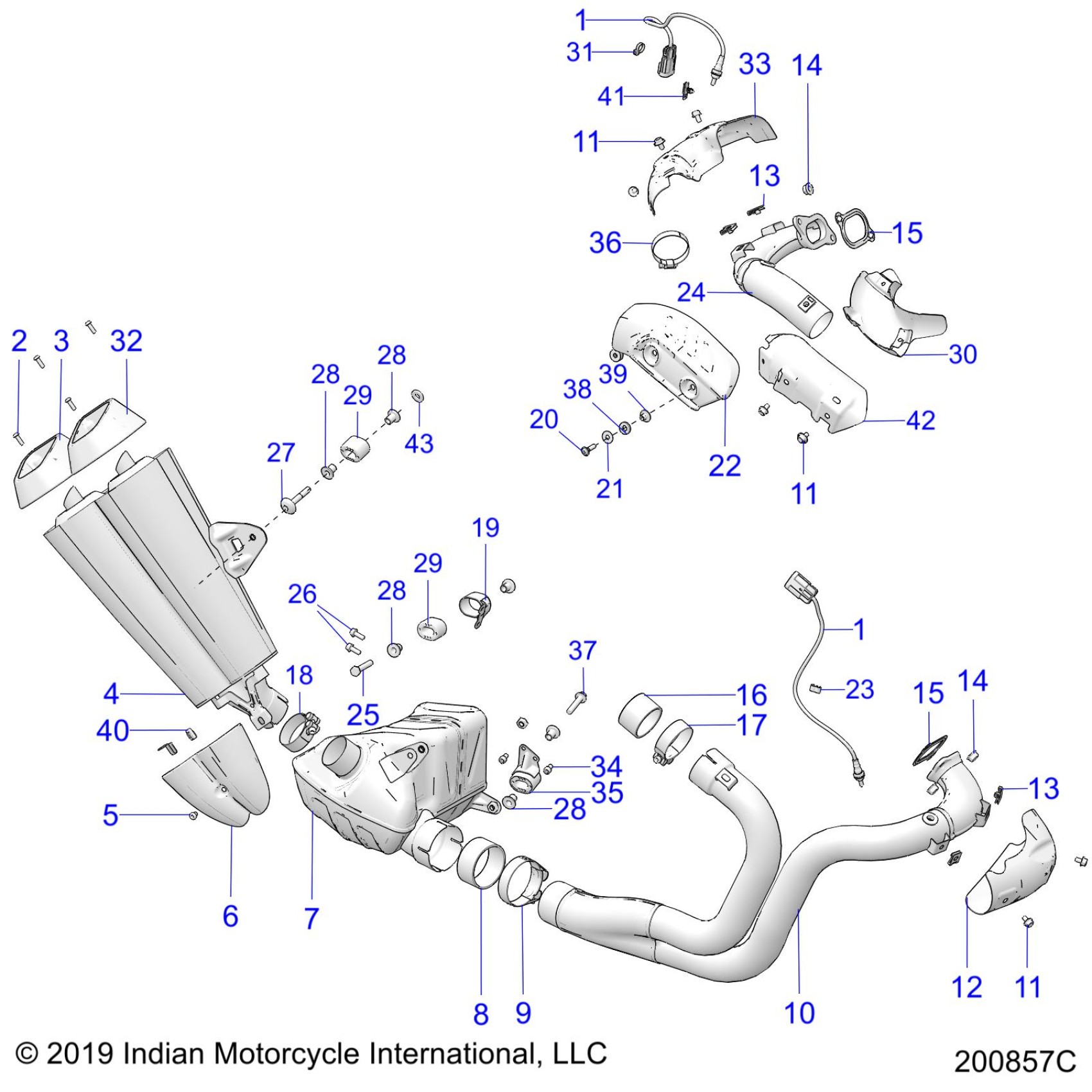

Polaris FTR 1200 RALLY (R05) - N20RTT22A9/B9/C9/E9 ENGINE, EXHAUST ASM - N20RTT22 (200857C) Diagram

#

Description
Price

1

SENSOR-OXYGEN

4016021

$169.98

1

SENSOR-OXYGEN

4016021

$169.98

2

SCREW-M5X.8X16 TX BTN PIN-IN-HD

7520360

$3.17

2

SCREW-M5X.8X16 TX BTN PIN-IN-HD

7520360

$3.17

3

TIP-MUFFLER,BTM

1263296

$125.86

3

TIP-MUFFLER,BTM

1263296

$125.86

4

ASM-MUFFLER,BLK

1263389-463

$744.99

5

SCREW-HXBG-M6X1.0X10 10.9 ZPC

7517406

$4.76

6

ASM., HEAT SHIELD,MUFFLER [INCL. 40]

1263216

$91.97

7

ASM-RESONATOR,WELD [TO 1/18/2021]

1263408

$1,259.99

7

ASM., RESONATOR,WELD [FROM 1/18/2020]

1263435

$1,429.99

8

GASKET-EXHAUST,ID51

5267027

$35.71

8

GASKET-EXHAUST,ID51

5267027

$35.71

9

CLAMP-EXHAUST,68-73

7082464

$31.75

9

CLAMP-EXHAUST,68-73

7082464

$31.75

10

ASM., HEADPIPE,FRONT

1263304

$554.99

11

SCREW-HXFL-M6X1.0X10 8.8 ZPB

7517893

$3.97

11

SCREW-HXFL-M6X1.0X10 8.8 ZPB

7517893

$3.97

11

SCREW-HXFL-M6X1.0X10 8.8 ZPB

7517893

$3.97

12

HEAT-SHIELD,FRONT

5265785

$59.99

13

C-CLIP,M6

7082445

$3.97

13

C-CLIP,M6

7082445

$3.97

14

NUT-HXFLGHD,M8,0600087

7547014

$7.84

14

NUT-HXFLGHD,M8,0600087

7547014

$7.84

15

GASKET,EXHAUST SEALING

5267312

$43.65

15

GASKET,EXHAUST SEALING

5267312

$43.65

16

GASKET-EXHAUST,ID51

5267026

$15.87

17

CLAMP-EXHAUST,55-59

7082463

$35.71

20

SCREW-M6X1-20-8.8-BUTTON-FLANGE

7520981

$3.97

22

ASM., HEATSHIELD,CENTRAL

1263372

$43.56

23

CLIP-BRAKE,TWO-WAY

5455212

$3.97

24

ASM., REAR HEADPIPE [INCL. 30]

1263368

$514.99

25

SCREW-HH M8X1.25X45 8.8 ZOD

7519097

$1.59

26

SCREW-SOCFLGHD,M6X1.0X16

7518803

$3.97

27

BOLT-M8,MUFFLER,STYLED,ZNC CLR

7521229

$5.99

28

INSERT-EXHAUST,ISOLATOR

5142036

$4.03

28

INSERT-EXHAUST,ISOLATOR

5142036

$4.03

28

INSERT-EXHAUST,ISOLATOR

5142036

$4.03

29

GROMMET-ISOLATOR,MUFFLER

5416612

$23.81

29

GROMMET-ISOLATOR,MUFFLER

5416612

$23.81

30

WELD-EXH,SHIELD,LWR,REAR

1263371

$38.71

32

TIP-MUFFLER,TOP

1263295

$125.86

33

HEAT-SHIELD,REAR

5267903

$64.99

34

SCREW-SH-M6X1.0X10 8.8 ZPB

7517337

$5.56

35

ASM., MOUNT,RESONATOR,LH [INCL. 29]

1263248

$154.99

36

CLAMP-HOSE

7082310

$4.76

37

SCREW-M8X1.25X45 8.8 DOG PT ZPB

7520549

$3.97

38

WASHER-ISOLATOR,HEAT-SHIELD

7557133

$3.97

39

SPACER,HEAT-SHIELD

5416674

$20.22

40

GROMMET-HEAT-SHIELD,MUFFLER

5416610

$4.76

41

CLIP-FIR,HOLE6.35MM

7082134

$3.97

42

HEATSHIELD,CENTRAL,BASE

5267905

$58.08

43

SPACER-MUFFLER

7520984

$6.35
