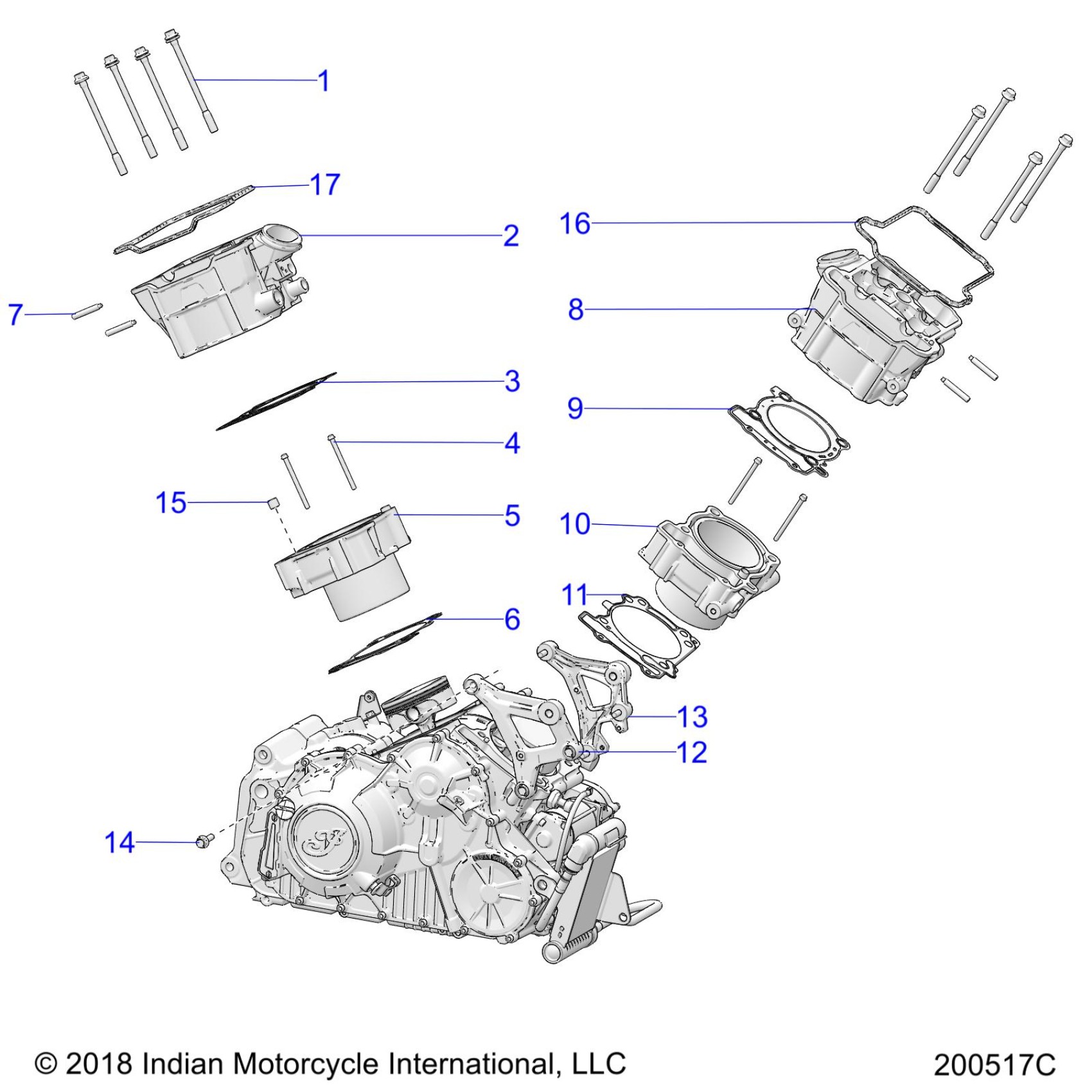

Polaris FTR 1200 RALLY (R05) - N20RTT22A9/B9/C9/E9 ENGINE, CYLINDER AND CYLINDER HEAD MNTG. - N20RTT22 (200517C) Diagram

SCREW-HXFL-M11X1.25X150 SAE4037

7520144

$13.49

ASM., CYL HEAD,REAR,MACH,IND,TNM

3023618-650

$469.99

GASKET-CYL HEAD,REAR

5814609

$55.56

SCREW-HXFLG,M6X1.0X80

7520115

$7.14

ASM., CYL,REAR,IND,102MM,TNM [INCL. 15]

3023338-650

$349.99

GASKET-BASE,REAR

5813952

$31.75

STUD-M8X1.25X45,SOCKET,8.8

7520858

Unavailable

ASM., CYL HEAD,FRT,MACH,IND,TNM

3023617-650

$494.99

GASKET-CYL HEAD,FRT

5814608

$55.56

ASM., CYL,FRT,IND,102MM,TNM [INCL. 15]

3023337-650

$349.99

GASKET-BASE, FRT

5813879

$31.75

BRACKET-HEADMOUNT,RH,TXT TITN (TO 1/7/2022)

5142161-650

Unavailable

BRACKET-HEADMOUNT,RH,TXT TITN (FROM 1/7/2022)

5144774-650

$111.33

BRACKET-HEADMOUNT,LH,TXT TITN (TO 3/15/2022)

5142160-650

$116.17

BRACKET-HEADMOUNT,LH,TXT TITN (FROM 3/15/2022)

5144773-650

$111.33

SCREW-HXFL-M8X1.25X30 10.9 ZPB

7518884

$1.98

DWL-HOLLOW, M14X12MM

7662163

Unavailable

SEAL-VALVE COVER,FRT

5416583

$43.65

SEAL-VALVE COVER,REAR

5416584

$43.65
